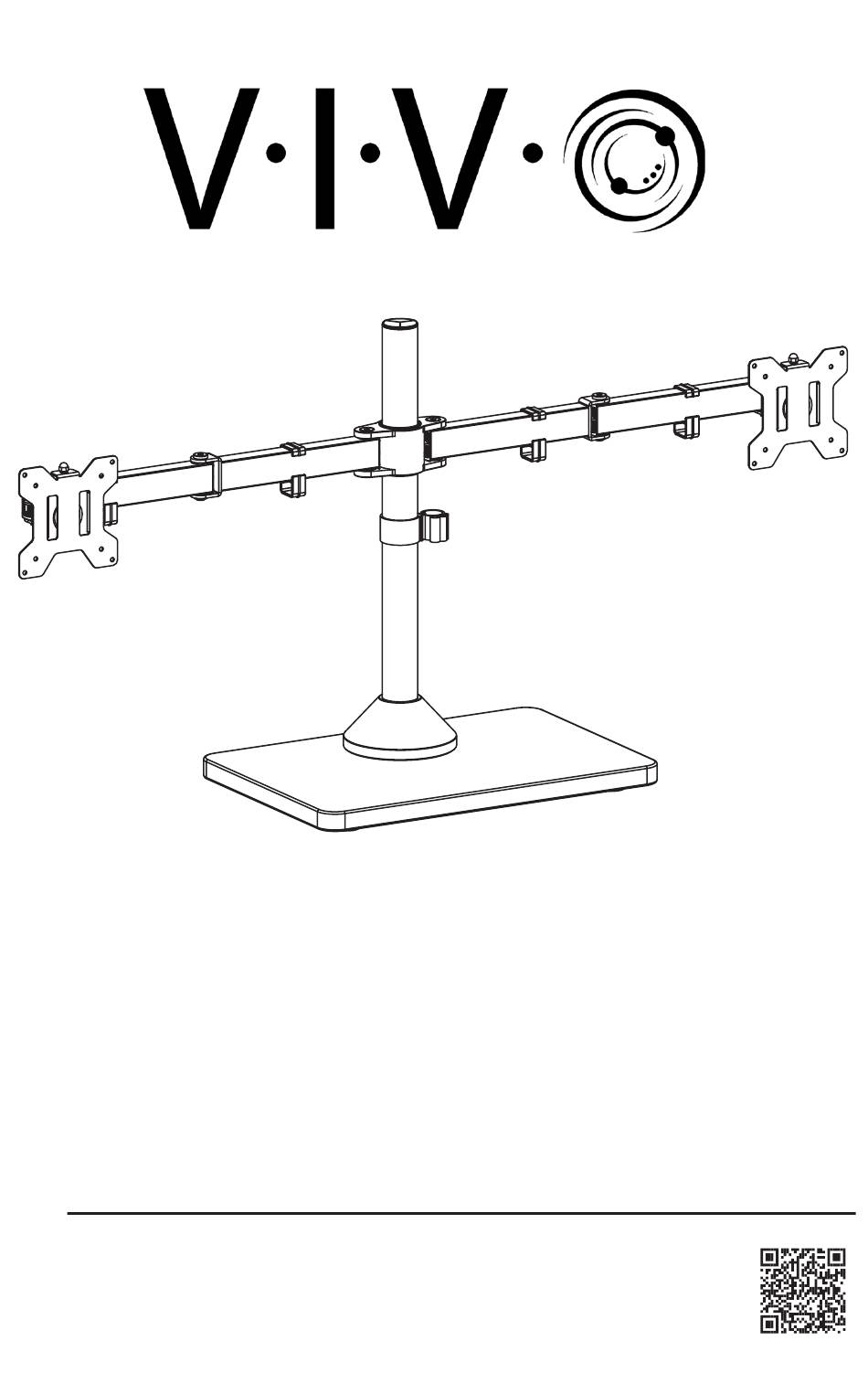

- Page 1 Black Dual Monitor Desk Stand with Wood Base SKU: STAND-V002FD-B/W Instruction Manual Assembly Video & Product Info www.vivo-us.com/products/stand-v002fd-b...
- Page 2 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
-
Page 3: Package Contents
Package Contents A (x1) B (x1) Pole Wood Base C (x1) D (x2) VESA Plate E (x1) F (x1) G (x1) H (x1) Pole Cap Grommet Soft Pad Grommet Top Pole Cover Plate I (x1) J (x4) K (x4) L (x4) Grommet Bottom Foot Soft Pad... -
Page 4: Included Hardware & Tools
Included Hardware & Tools S-A (x4) S-B (x3) S-C (x2) M-A (x8) M-B (x8) M6x20mm Screw M6x16mm Screw M6 Cap Nut M4x12mm M4x30mm Screw Thumbscrew M-C (x8) T-A (x1) T-B (x1) T-C (x1) Spacer 3mm Allen 4mm Allen 5mm Allen Wrench Wrench Wrench... -
Page 5: Assembly Steps
ASSEMBLY STEPS STEP 1 Remove adhesive backing from Grommet Soft Pad (F) and apply it to the bottom of Grommet Top Plate (G). Assemble Grommet Top Plate (G) to the underside of Pole (A) using M6x16mm Screws (S-B) and 4mm Allen Wrench (T-B). - Page 6 STEP 2 Secure Grommet Top Plate (G) to Wood Base (B) with Grommet Bottom Plate (I) using the 4mm Allen Wrench (T-B) and M6x20mm Screws (S-A). Remove adhesive backing from Feet (J) and apply them to the bottom of Wood Base (B), and then remove the adhesive backing from Soft Pads (K) and apply them on top of Feet.
- Page 7 STEP 3 1. Slide Pole Cover (H), Pole Cable Clip (M), and Arm (C) onto Pole (A). 2. Secure Arm in place using 5mm Allen Wrench (T-C). 3. Insert Pole Cap (E) into the top of Pole. NOTE: Pole Cover is a decorative piece. The stand can be assembled without it. Attach Arm Cable Clips (L) onto Arm (C).
- Page 8 STEP 4 Assemble VESA Plates (D) to the back of monitors using appropriate hardware for your screen type. FLAT BACK MONITORS: If using a flatback monitor, use M4x12mm Thumbscrews (M-A) as seen in Fig. 1. Fig. 1 CURVED/RECESSED MONITOR: If using a curved/recessed back monitor, use M4x30MM (M-B) with Spacers (M-C) as seen in Fig.
- Page 9 STEP 5 Slide monitors with VESA Plates (D) onto Arm (C). Secure VESA Plates in place using M6 Cap Nuts (S-C). STEP 6 Manage cables using Arm Cable Clips (L) and Pole Cable Clip (M).
- Page 10 STEP 7 Use caution when orienting your monitors. If the monitors are pulled too far forward or too far back it can result in the stand tipping over. CAUTION: DO NOT use the display beyond the arrow range, avoid tipping.
- Page 11 STEP 8 To level monitors, remove M6 Security Nuts (S-C) and tighten or loosen adjustment screws using 3mm Allen Wrench (T-A). Once level, fasten M6 Security Nuts back into place. Adjust the monitor tilt using 5mm Allen Wrench (T-C).
-
Page 12: Last Updated
LAST UPDATED: 5/21/24 REV1 v1.0 Need Help? Get In Touch Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com 309-278-5303 Chat live with an agent! FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us...
