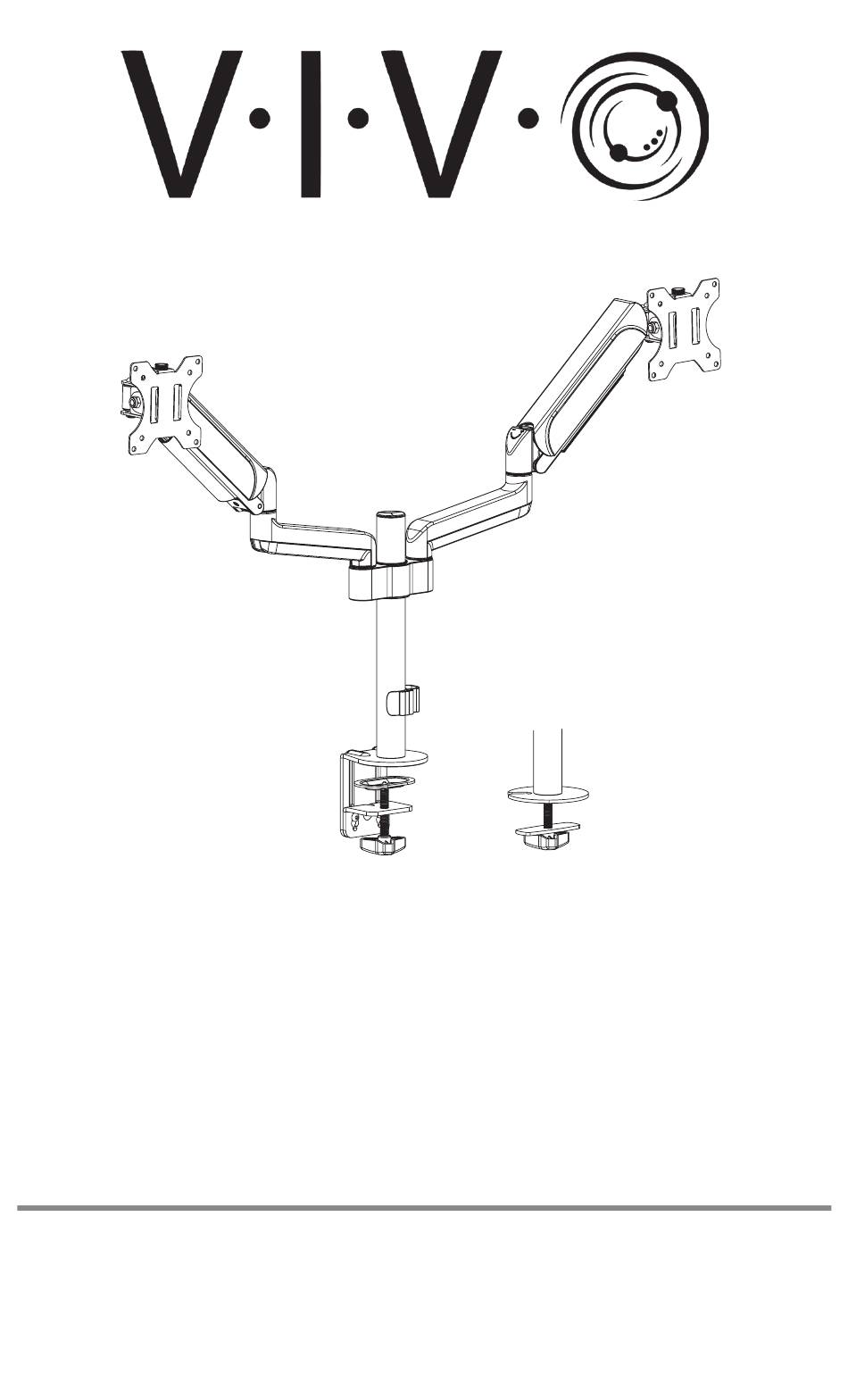

Pneumatic Arm Dual
Monitor Desk Mount
STAND-V002K Series
Assembly Manual
Individual Product SKUs
STAND-V002K
STAND-V002KW

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STAND-V002K Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Vivo STAND-V002K Series

  • Page 1 Pneumatic Arm Dual Monitor Desk Mount STAND-V002K Series Assembly Manual Individual Product SKUs STAND-V002K STAND-V002KW...
  • Page 2 Better Products for a Better Workspace Experience We are dedicated to creating high-end ergonomic solutions for the office with top of the industry support. Explore Endless Workspace Solutions www.vivo-us.com...
  • Page 3 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Failure to report missing parts within 30 days may result in denial of free replacement.
  • Page 4: Package Contents

    Package Contents A (x1) B (x2) C (x1) D (x1) VESA Plate Pole Clamp E (x1) F (x1) G (x1) H (x1) Cable Clip Grommet Soft Pad Support Plate Plate Included Hardware & Tools S-A (x2) S-B (x3) M-A (x8) M-B (x8) M-C (x8) Thumbscrew...
  • Page 5: Assembly Steps

    Assembly Steps STEP 1 Loosen the two preinstalled screws on Clamp (D) using 4mm Allen Wrench (T-A). Separate Clamp Brace (D1) from Clamp (D).
  • Page 6: Option 1: Clamp Installation

    STEP 2 Option 1: Clamp Installation Attach Clamp Brace (D1) to Pole (C) using M6x16mm Screws (S-B) and 4mm Allen Wrench (T-A). Remove adhesive backing from Soft Pad (G) apply to Clamp Brace (D1) as shown. 1.1 Desktop Thickness: 0.40” - 2” (10 - 50mm) Reattach Clamp (D) to Clamp Brace (D1) using 4mm Allen Wrench (T-A), then clamp to the desktop.
  • Page 7 1.2 Desktop Thickness 1.77-3.34” (45 - 85mm) Disassemble the Clamp (D) using a Phillips screwdriver. Flip the L Bracket around and reassemble the Clamp. L Bracket Reattach Clamp (D) to Clamp Brace (D1) using 4mm Allen Wrench (T-A), then clamp to the desktop.
  • Page 8 Option 2: Grommet Installation Desktop must be 0.4” - 1.5” (10-40mm) thick Cut the Soft Pad (G) along the indentations using a scissors. Remove adhesive backing and apply to Grommet Plate (F) as shown. Disassemble Clamp (D) using a Phillips screwdriver and remove the Clamp Bolt. Clamp Bolt...
  • Page 9 Option 2 - Cont’d Attach Pole (C) and Grommet Plate (F) to the desktop using the Support Plate (H) and Clamp Bolt. Grommet hole size must be 0.4” - 2.36” (10-60mm). The Stud on Grommet Plate (F) should be inserted into Pole (C) as shown.
  • Page 10 STEP 4 Slide Arm (A) onto Pole and secure by tightening the screw on the back using 6mm Allen Wrench (T-B). Attach Cable Clip (E) to Pole (C). Note: Arm may need to be loosened before installing.
  • Page 11 STEP 5 Attach VESA Plates (B) to the back of monitors using appropriate Screws (M-A thru M-D) and Washers (M-E). Spacers (M-F) can be used if needed. Tighten using a Phillips screwdriver. Ensure the Lips on VESA Plates (B) face the top of monitors. Slide VESA Plates (B) with monitors onto the Arm (A) and secure using Thumbscrews (S-A).
  • Page 12 STEP 6 Adjusting Monitor Height Position Mount Arm Turn 10-20x to Set Monitor Height Position the arm horizontally, as shown above, and firmly hold in Turn 6mm Allen Wrench (T-B) 10-20 times place. to obtain proper support for your monitor. Use the guide below to adjust the tension according to the amount of counterbalance Insert...
  • Page 13 STEP 7 Remove bottom cable covers from Arm (A) by sliding forward. Organize cables and reattach covers.
  • Page 14 Adjustments Adjust the tilt support by turning the Adjustment Screw using 6mm Allen Wrench (T-B). Store Allen Wrenches (T-A, T-B) in Cable Clip (E). Adjust as desired.
  • Page 15 Love Your New Setup? Tag Us on Social! @ VIVO-us @ vivo_us @VIVOus VIVO...
  • Page 16 Need Help? We’re Here For You Monday-Friday from 7am-7pm CST Saturday 8am-4pm CST Email Us Chat with Live Agent Give Us a Call help@vivo-us.com www.vivo-us.com 309-278-5303 ext. 1 FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us @VIVOus VIVO...
