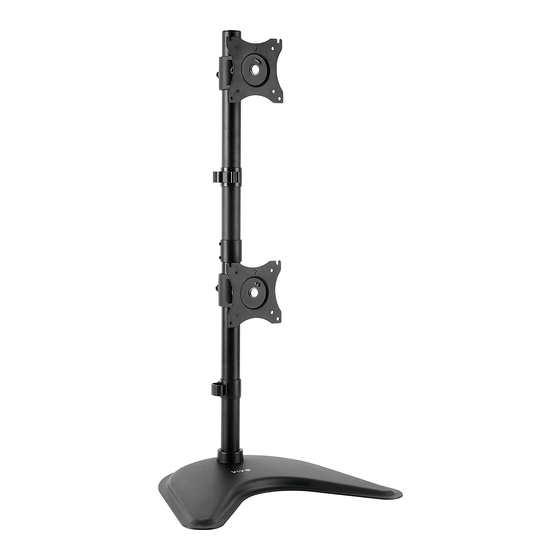

Dual Vertical Monitor Desk Stand
Instruction Manual
SKU: STAND-V002N
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-v002n
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vivo STAND-V002N
Summary of Contents for Vivo STAND-V002N
- Page 1 Dual Vertical Monitor Desk Stand Instruction Manual SKU: STAND-V002N Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-v002n GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com...
- Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
- Page 3 TOOLS NEEDED DO NOT EXCEED WEIGHT CAPACITY. 22 lbs Failure to do so may result in serious injury. (10 kg) PER ARM Phillips Screwdriver ASSEMBLY STEPS STEP 1 Slide cable management clip (F) and base cover (G) on to bottom of pole (A). Thread pole onto base (C).
- Page 4 STEP 3 Slide cable management clip (F) on to bottom of pole (B) and attach pole (B) to pole (A) using pole connector (E). Tighten grub screw in pole connector using 3mm allen key (H).
- Page 5 STEP 4 Slide second VESA plate over top of pole (B). Tighten using 5mm allen key (I).
- Page 6 STEP 5 Attach two bolts (M-A or M-B) and washers (M-C) to top mounting holes of monitors, making sure to leave 3mm of threads exposed. Align bolts (M-A, M-B) in VESA plates. Secure using two more bolts (M-A or M-B) and washers (M-C) in the bottom two holes. Tighten all eight bolts using phillips screw- driver.
- Page 7 STEP 6 Adjust tension in monitor bracket with 6mm allen key (J) as shown in diagram. +45 ° -45 ° STEP 7 Store allen keys (J,I) in cable management clip (F) for future adjustment. Adjust as Desired 360° 360° 360° 360°...
