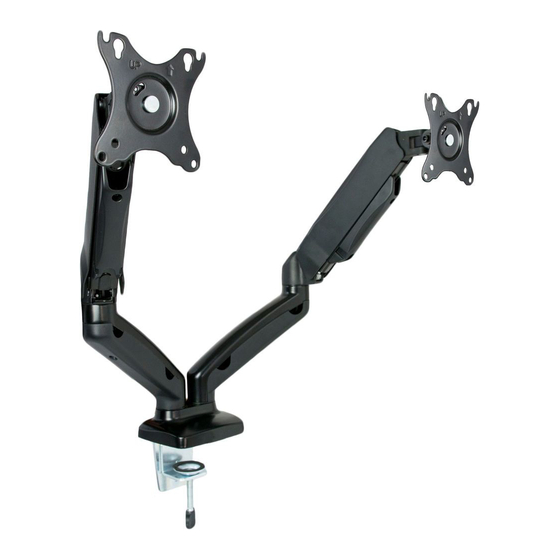

Pneumatic arm dual monitor desk mount
Hide thumbs Also See for STAND-V002O:
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual
Pneumatic Arm Dual Monitor Desk Mount
Instruction Manual
SKU: STAND-V002O
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-v002o
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303

Advertisement

loading
Need help?

Need help?

Do you have a question about the STAND-V002O and is the answer not in the manual?

Questions and answers

Related Manuals for Vivo STAND-V002O

Summary of Contents for Vivo STAND-V002O

  • Page 1 Pneumatic Arm Dual Monitor Desk Mount Instruction Manual SKU: STAND-V002O Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-v002o GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...

  • Page 2: Package Contents

    WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.

  • Page 3: Assembly Steps

    ASSEMBLY STEPS STEP 1 OPTION A: Clamp Installation Mount bracket (B) to bottom of gas spring arm (A) using bolts (E). Tighten using 4mm allen key (J). Attach clamp (C) to bracket (B) using bolts (D) and 4mm allen key (J). Mount according to thickness of desktop as shown in diagrams.
  • Page 4 STEP 1 OPTION B: Grommet Base Installation For grommet hole mounting, place carriage bolt (H) through the center of grommet base (F). Mount grommet base to bottom of gas spring arm (A) using bolts (E). Tighten using 4mm allen key (J). Run carriage bolt (H) through grommet hole in desktop.
  • Page 5 STEP 2 Attach two bolts (M-A or M-B) and washers (M-C) to top mounting holes of monitors, making sure to leave 3mm of threads exposed. Align bolts (M-A, M-B) in VESA plates. Secure using two more bolts (M-A or M-B) and washers (M-C) in the bottom two holes. Tighten all eight bolts using phillips screwdriver end of 5mm allen key (K).
  • Page 6 STEP 4 Remove bottom plastic covers from gas spring arms (A) using phillips screwdriver end of 5mm allen key (K).
  • Page 7 STEP 5 Run cables from monitors through bottom of gas spring arms (A). Reattach plastic covers as shown in diagram. Adjust as Desired 180° +90° 360° -45° 360° 360°...
  • Page 8 - 92% within < 3hr www.vivo-us.com : < 15 M AVG. RESOLUTION TIME (within office hrs) Chat live with an agent! : 5M 4S 309-278-5303 AVG. RESOLUTION TIME (within office hrs) FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
