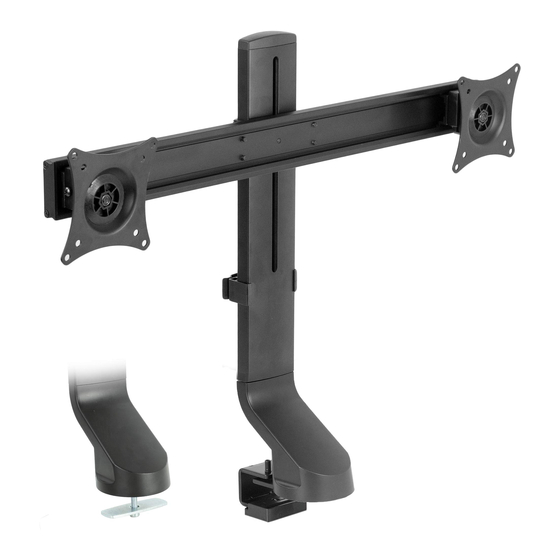

Dual Monitor Desk Mount
Instruction Manual
SKU: STAND-V002U
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-v002u
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vivo STAND-V002U
Summary of Contents for Vivo STAND-V002U
- Page 1 Dual Monitor Desk Mount Instruction Manual SKU: STAND-V002U Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-v002u GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com...
- Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
- Page 3 TOOLS NEEDED DO NOT EXCEED WEIGHT CAPACITY. 15.4lbs Failure to do so may result in serious injury. (7kg) PER SCREEN Phillips Screwdriver ASSEMBLY STEPS STEP 1 Mount column (A) to base (B) using short bolts (J). Tighten with 6mm Allen wrench (O). STEP 2 OPTION A: Grommet Installation Mount grommet plate (E) to base using...
- Page 4 STEP 2 (Continued) OPTION B: Clamp Installation Mount clamp plate (D) to base using flat head bolts (K) and tighten with 4mm Allen wrench (N). Peel backing from pad (I) and stick to installed clamp plate. For 5/8” - 1” (15 - 25mm) desktop thickness: Place the base near the back edge of the desk.
- Page 5 STEP 3 Mount VESA plate (G) to back of monitor using screws (M-A or M-B) and washers (M-C), making sure the slot in back is facing down. M- C M- A M- B STEP 4 Slide arm (F) onto column (A). Tighten knob and use 4mm Allen wrench (N) to secure arm at desired height.
- Page 6 STEP 5 Slide monitors with VESA plates onto mounting brackets on arm. Tighten the screw on the side of each bracket to secure the monitors. STEP 6 Loosen the knob to adjust monitor height. Manage cables and store tools using installed cable clip.
- Page 7 Adjust as Desired...
- Page 8 - 92% within < 3hr www.vivo-us.com : < 15 M AVG. RESOLUTION TIME (within office hrs) Chat live with an agent! : 5M 4S 309-278-5303 AVG. RESOLUTION TIME (within office hrs) FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
