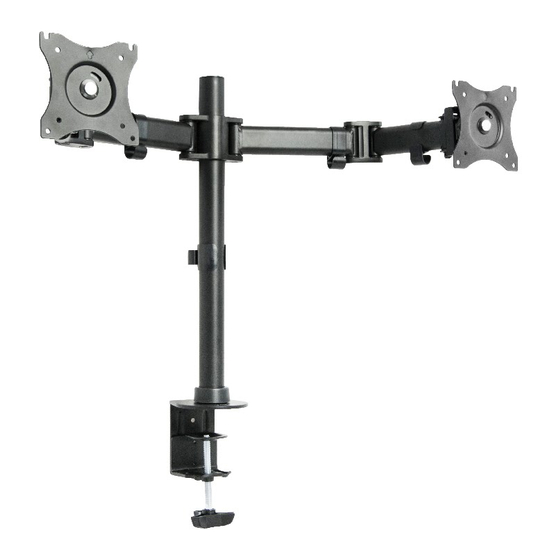

Dual Monitor Desk Mount
Instruction Manual
SKU: STAND-V002M
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-v002m
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Vivo STAND-V002M
Summary of Contents for Vivo STAND-V002M
- Page 1 Dual Monitor Desk Mount Instruction Manual SKU: STAND-V002M Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-v002m GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com...
-
Page 2: Package Contents
WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual. -
Page 3: Tools Needed
TOOLS NEEDED DO NOT EXCEED WEIGHT CAPACITY. 17.6 lbs Failure to do so may result in serious injury. (8 kg) PER ARM Phillips Screwdriver ASSEMBLY STEPS STEP 1 Install pole cover (E) to pole (F). STEP 2 OPTION A: Clamp Installation Stick rubber pads (I) to the underside of clamp (D). - Page 4 STEP 2 (Continued) OPTION B: Grommet Base Installation For grommet hole mounting, remove screw in top of clamp hand bolt (D). Stick rubber pads (I) to bottom of grommet base (H). Secure pole (F) with grommet base to desk using previously removed clamp bolt with support plate (I). If needed, drill hole in desk with a 3/8”...
- Page 5 STEP 4 Attach cable clips (C) to arms (A) as shown. STEP 5 Slide cable clip (G) and arm (A) onto pole (F) and tighten using 5mm Allen wrench (P).
- Page 6 STEP 6 Attach two bolts (M-A or M-B) and washers (M-C) to top mounting holes of monitors, mak- ing sure to leave 3mm of threads exposed. Align bolts (M-A, M-B) in VESA plates. Secure using two more bolts (M-A or M-B) and washers (M-C) in the bottom two holes. Tighten all eight bolts using phillips screwdriver.
- Page 7 STEP 8 Store Allen wrenches (P, Q) in cable clip (G) for future use. STEP 9 Adjust alignment of monitors by turning bolt on top of each bracket with 5mm Allen wrench (P) as shown.
