Observer 70
Observer 70
Art.-No.: W 70 WW
Observer 70
Art.-No.: W 70 AN
Operationsmanual
1 Safety instructions
Electrical equipment may only be installed and fitted by electrically skilled persons.
Failure to observe the instructions may cause damage to the device and result in fire and
other hazards.
Danger of electric shock. Device is not suitable for disconnection from supply voltage.
Danger of electric shock. Always disconnect before carrying out work on the devise or
load. At the same time, take into account all circuit breakers that supply dangerous
voltage to the device or load.
Do not press on the sensor window. Device can be damaged.
The device is not suitable for use as a burglar alarm or other alarm.
These instructions are an integral part of the product, and must remain with the end
customer.

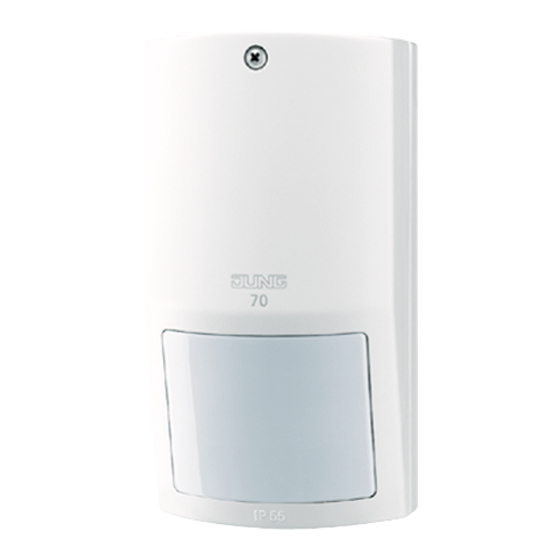

2 Device components
(1) Sensor window
(2) Rear device panel
(3) Central screw
3 Function
Intended use
-
Automatic switching of lighting depending on the heat motion and ambient brightness.
-
Surface-mounting in indoor and outdoor areas
Product characteristics
-
Variable installation position
-
Protected against spray water
32523523
J:0082523523
picture 1
1/8
10.08.2010
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Jung Observer 70
Summary of Contents for Jung Observer 70
- Page 1 Observer 70 Observer 70 Art.-No.: W 70 WW Observer 70 Art.-No.: W 70 AN Operationsmanual 1 Safety instructions Electrical equipment may only be installed and fitted by electrically skilled persons. Failure to observe the instructions may cause damage to the device and result in fire and other hazards.
- Page 2 Observer 70 Follow-up time and brightness value settable Test operation for checking the detection area Range can be set in three levels Parallel connection of multiple motion detectors possible Manual switch-on possible with installation button, NC contact Automatic operation The controller detects heat motions of people, animals and objects.
- Page 3 Observer 70 5 Information for electrically skilled persons 5.1 Fitting and electrical connection DANGER! Electrical shock when live parts are touched. Electrical shocks can be fatal. Before carrying out work on the device or load, disengage all the corresponding circuit breakers. Cover up live parts in the working environment.
- Page 4 Observer 70 i To achieve a rapid response from the motion detector on leaving the building, install the device at a height of less than 2.4 m, centrally above the door. Installing the motion detector Slacken central screw (3) (picture 1).
- Page 5 Observer 70 picture 5: Setting the follow-up time and the brightness threshold The range of the motion detector can be set in three stages by sliding the internal housing (13) (picture 6). picture 6: Setting the range Set the required follow-up time using the adjuster (11).
- Page 6 Observer 70 Connecting the controller picture 7: Stripping the connection cable The connection cables are equipped with screwless terminals. For secure contacting, connect only single-wire cables with a cross-section of maximum 2.5 mm². Observe the stripping lengths for external cable jacketing and basic insulation (picture 7).
- Page 7 Observer 70 picture 9: Connection diagram, switching off motion detectors The motion detector can be switched off using installation switch S1 or S2 (picture 9). Switching installation switch S1 on again triggers switch-on for the follow-up time. Installation S2 does not do this.
- Page 8 We provide a warranty as provided for by law. Please send the unit postage-free with a description of the defect to our central customer service office: ALBRECHT JUNG GMBH & CO. KG Service Center Kupferstr. 17-19 D-44532 Lünen Service-Line: +49 (0) 23 55 .
