Observer 110
Observer 110
Art.-No.: 222 WW
Operationsmanual
1 Safety instructions
Electrical equipment may only be installed and fitted by electrically skilled persons.
Failure to observe the instructions may cause damage to the device and result in fire and
other hazards.
Danger of electric shock. Device is not suitable for disconnection from supply voltage.
Danger of electric shock. Always disconnect before carrying out work on the devise or
load. At the same time, take into account all circuit breakers that supply dangerous
voltage to the device or load.
Do not press on the lens. Device can be damaged.
Do not open the sensor head, because close sealing is not possible. Foreign bodies and
spray water can penetrate and damage the device.
The device is not suitable for use as a burglar alarm or other alarm.
These instructions are an integral part of the product, and must remain with the end
customer.
2 Device components
(1) Connection box
(2) Adjuster
(3) Sensor head
(4) Sensor window
(5) Manual knob
(6) Central screw
82508413
J:0082508413

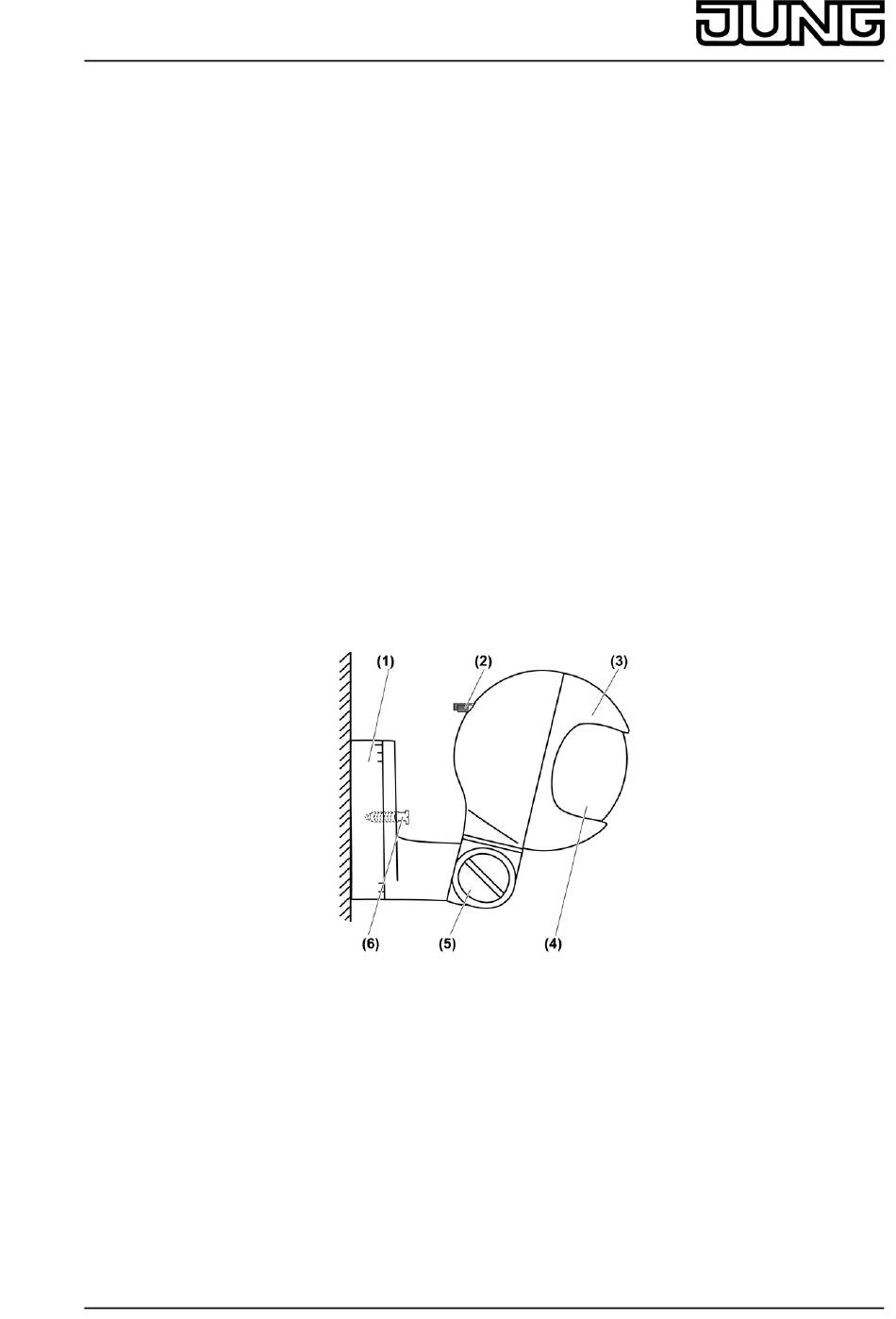

picture 1: Device components
1/10
18.08.2010
