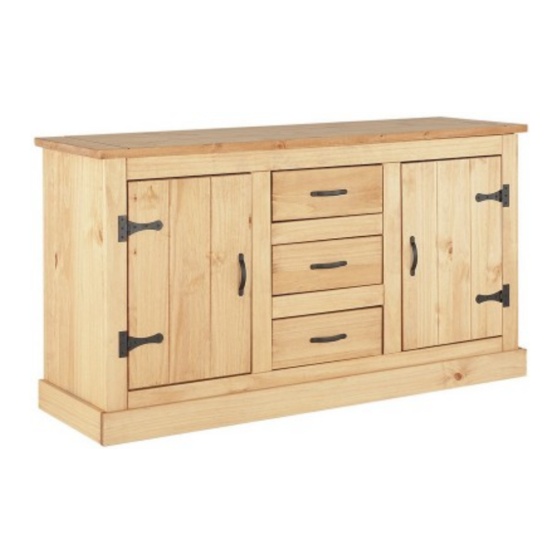

SAN DIEGO - Large Sideboard
Assembly Instructions
- Please keep for future reference
412/2214
Dimensions
Width - 150cm
Depth - 47cm
Height - 84cm
Important –
Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the
Customer Helpline: 03456 400 800
Issue 1 - 15/04/15
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Argos SAN DIEGO 412/2214
Summary of Contents for Argos SAN DIEGO 412/2214
- Page 1 SAN DIEGO - Large Sideboard Assembly Instructions - Please keep for future reference 412/2214 Dimensions Width - 150cm Depth - 47cm Height - 84cm Important – Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 03456 400 800 Issue 1 - 15/04/15...
- Page 2 Safety and Care Advice Important – Please read these instructions fully before starting assembly Check you have all the This product has been produced We do not components and tools listed on from natural timber; you may recommend the pages 2 and 3. notice some variation in the grain use of power and colour of different component...
- Page 3 Components - Panels Please check you have all the panels listed below Right front frame (81 x 6.5cm) 8 Middle wall panel Left front frame 1 Top panel (150 x 47cm) (66.9 x 42.4cm) (81 x 6.5cm) Vertical frame underside (64.4 x 6.5cm) 9 Door 2 Base panel...
- Page 4 Components - Fittings If you have damaged or missing components, call the Customer Helpline: 03456 400 800 Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.
- Page 5 Assembly Instructions Step 1 Fixing right front frame to the right side panel (Two people required for an easier assembly). Insert right side panel into right front frame through joints. Yes! Note: Before fixing blocks into place it is important to ensure that the slot and groove of parts are fully pushed together...
- Page 6 Assembly Instructions Step 3 Fitting Metal dowels. Screw metal dowels into right side panel left side panel and top panel Note: Insert metal dowels as far as shown. Do not over tighten. Step 4 Insert dowels into the indicated parts.
- Page 7 Assembly Instructions Step 5 Fixing drawer runners. Attention! Fit drawer runners to the middle wall panels then fix it using screws as shown. Attention! The large holes of one middle panel to face up and the other middle panel to face down.
- Page 8 Assembly Instructions Step 7 Fixing middle wall panels. With help, fit middle wall panels to the base panel then fix it using screws Step 8 Assembling parts. Put parts together as shown in the diagram. Step 9 Insert the assembled frame into the holes on left side panel...
- Page 9 Assembly Instructions Step 10 Fixing base panel. With help, fit base panel to the left side panel. Insert 2 locking nuts into base panel where shown. Use a screwdriver to turn locking nuts clockwise to lock. Do not over tighten. Step 11 Fixing right side panel.
- Page 10 Assembly Instructions Step 12 Fixing top panel. Important: With help, carefully stand the product upright. With help, f it top panel to the cabinet. Insert locking nuts into side p anel and middle wall panels where shown. Use a screwdriver to turn locking nuts clockwise to lock.
- Page 11 Assembly Instructions Step 14 block to the front plinth and front frame using screws Step 15 Fix cross rails in the pre drilled holes on doors using screws Step 16 Fitting hinges to doors. Attach hinges in the pre marked holes on doors using screws as shown.
- Page 12 Assembly Instructions Step 17 Fixing doors. Important: With help, carefully stand the product upright. With help centralise the doors in the opening of the cabinet then fix the hinges using screws as shown. Note: Hinges allow Note: some adjustment after doors are fixed. Loosen screws and move doors to suit.
- Page 13 Assembly Instructions Step 19 Drawer assembly. Attach drawer sides to the drawer front using screws Slide drawer bottom into slots on drawer sides and position drawer back in place. Holding the drawer back , press the drawer sides and fix them using screws Using bolts attach...
- Page 14 Assembly Instructions Step 21 Position shelves into place. Make sure round edges is facing front. Step 22 Fixing back panels. Important: Cabinet MUST ‘square’ when back panels are attached. Attach back panels using nails Step 23 Note: Wall plugs not supplied. Fixing to wall.
-
Page 15: A Guide To - Wall Mounting & Fixings
A Guide to - Wall Mounting & Fixings Important: When drilling into walls always Important note: check that there are no hidden wires or pipes etc. If plastic wall plugs Make sure that the screws and wall plugs being used are supplied with your are suitable for supporting your unit.
