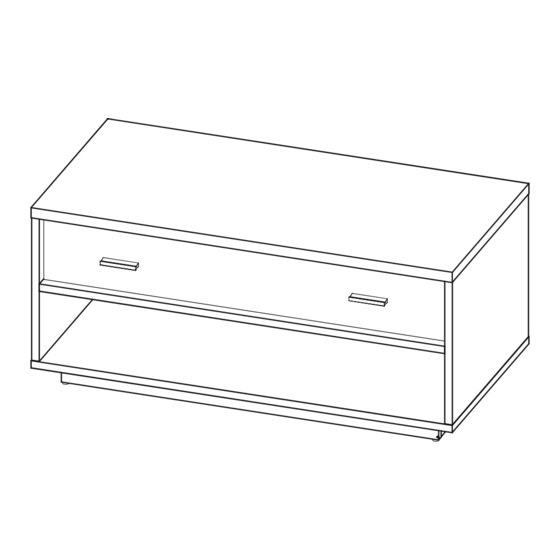

Darcy - Coffee Table/TV Stand
Assembly Instructions - Please keep for future reference
425/8827
Dimensions
Width - 100 cm
Depth - 50 cm
Height - 45 cm
Important
- Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 0845 6400 800
Issue 1 - 03/06/2015
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Argos Darcy 425/8827
Summary of Contents for Argos Darcy 425/8827
- Page 1 Darcy - Coffee Table/TV Stand Assembly Instructions - Please keep for future reference 425/8827 Dimensions Width - 100 cm Depth - 50 cm Height - 45 cm Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 0845 6400 800 Issue 1 - 03/06/2015...
- Page 2 Safety and Care Advice Important - Please read these instructions fully before starting assemb ly • Check you have all the • Assemble on a soft level • Dispose of all packaging components and tools listed on surface to avoid damaging the carefully and responsibly.
- Page 3 If you have damaged or missing components Component - Panels call the Customer Helpline: 0845 6400 800 Please check you have all the panels listed below 8 Drawer front (95.7 x 15.2cm) Left side Right side (35.2 x 49.6cm) (35.2 x 49.6cm) 9 Drawer back (90.7 x 10cm) 11 Drawer right side...
- Page 4 Components - Fittings Please check you have all the fittings listed below Locking nut x 17 5x13mm Screw x 6 ( 15x13) Wooden dowel x 41 (8x35) Hexagon bolt x 6 Cap x 17 Metal dowel x 17 (7x50) Cap x 6 Handle x 2 3.5x27mm Screw x 4 3x20mm Screw x 6...
- Page 5 Assembly Instructions Step 1 Step 1 a: Inserting dowels and locking nuts Insert locking nuts into the right side panel Insert wooden dowels into the right side panel Screw metal dowels WARNING! Please wear goggles or protective eyewear whilst hammering dowels in place.
- Page 6 Assembly Instructions Step 1 Step 2 a: Inserting dowels and locking nuts Insert locking nuts into the left side panel Insert wooden dowels into the left side panel Screw metal dowels WARNING! Please wear goggles or protective eyewear whilst hammering dowels in place.
- Page 7 Assembly Instructions Step 1 Step 2 Step 1 Step 3 a: Inserting dowels and locking nuts Insert locking nuts into the back Insert wooden dowels into the front support Insert locking nuts WARNING! Please wear goggles or protective eyewear whilst hammering dowels in place.
- Page 8 Assembly Instructions Step 4 Fittings dowels Screw metal dowels into the top Step 5 Fittings dowels into the long plinth Repeat with short plinth WARNING! Please wear goggles or protective eyewear whilst hammering dowels in place.
- Page 9 Assembly Instructions Step 6 Attaching panels Attach right side panel to the support & . Attach left side panel to the support & Use the allen key turn locking nuts clockwise to lock Cover locking nuts with caps Step 7 Attach back to the back support...
-
Page 10: Table Of Contents
Assembly Instructions Step 8 Attaching panels Attach top to the left side panel ,right side panel & back Use the allen key turn locking nuts clockwise to lock Cover locking nuts with caps Step 9 Attaching plinth Attach feet to the long plinth Attach long plinth to the short plinth... - Page 11 Assembly Instructions Step 10 Attaching plinth Fit long plinth & short plinth to the bottom Step 11 Mounting bracket Place mounting bracket onto the assembly as shown. Mark holes with a punch and fix the bracket with screws...
- Page 12 Assembly Instructions Step 12 Attaching bottom Attach bottom to the sides Use hexagon bolt & allen key Cover bolts with caps...
- Page 13 Assembly Instructions Step 13 Drawer assembly a: drawer back: Insert wooden dowels into the drawer back Insert locking nuts into the drawer sides & support Insert wooden dowels into the drawer sides & support WARNING! Please wear goggles or protective eyewear whilst hammering dowels in place.
-
Page 14: Use The Allen Key K To
Assembly Instructions Step 14 Drawer assembly Attach drawer front to the drawer sides Use the allen key turn locking nuts clockwise to lock Cover locking nuts with caps b: Attach drawer base using screws & stabilizer IMPORTANT! Drawer MUST be “square” when base is attached. -
Page 15: Step 15
Assembly Instructions Drawer assembly Attach drawer support to the drawer front Use the allen key turn locking nuts clockwise to lock Cover with caps : Fix drawer support using screw Step 15 Leveling Insert drawer ito the cabinet. Attach door handles using screws Place a spirit level on Where necessary, insert...
