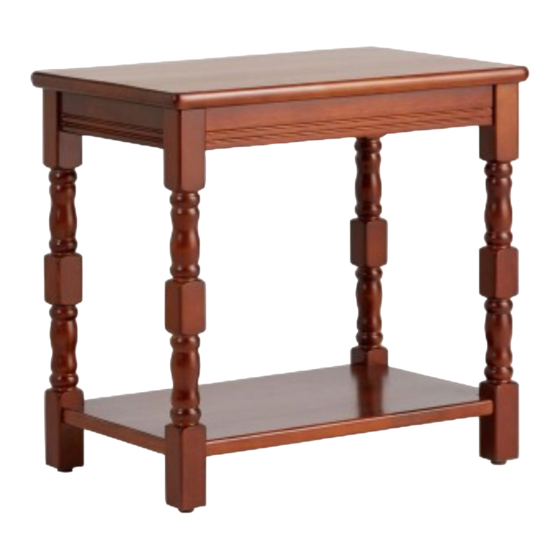

End table

Advertisement

Quick Links

Devon End Table
Assembly Instructions -
Dimensions
Width - 45.5cm
Depth - 30cm
Height - 42.7cm
Important -
Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts,call the Customer Helpline:03456 400800.
For further assistance please visit http://www.argos-support.co.uk/.
Please keep for future reference
532/7623
Issue 1 - 15/03/16
