STEP 7: INSTALLING THE RADIATOR
AND FANS ASSEMBLY INTO THE PC
CASE (AMD)

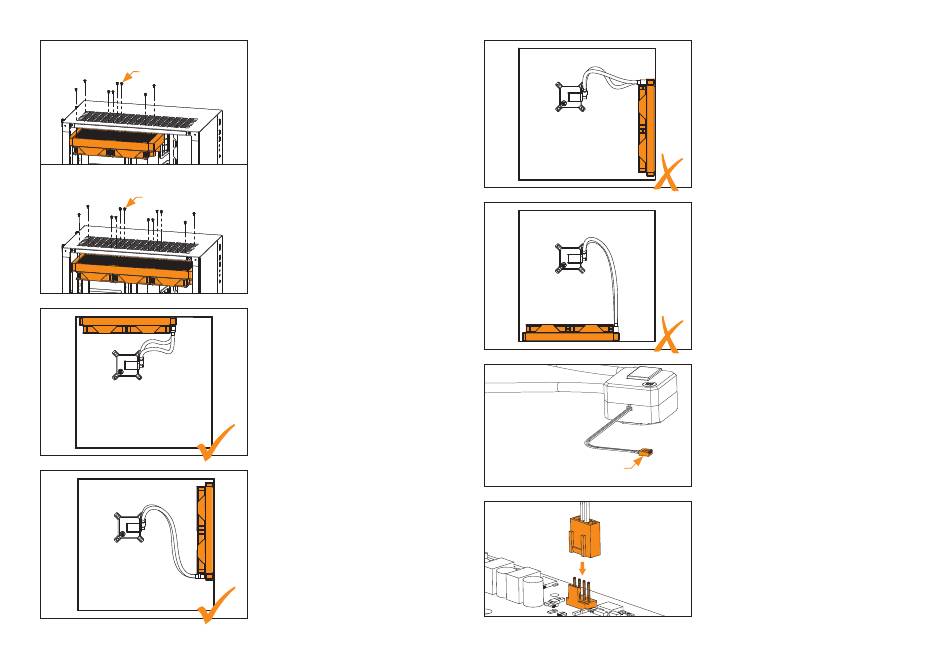

Attach the assembly of the radiator and the
fan(-s) to the PC case with the UNC 6-32 x
6mm screws.
Radiator on top (recommended)
Vertical placement of the radiator with tubing
at the bottom (recommended)
4-pin Connector
- 10 -
Vertical placement of the radiator with tubing
at the top (not optimal)
Radiator at the bottom (should be avoided)
STEP 8: PUMP – CONNECTING
CABLES (AMD)
Plug the 4-pin PWM connector of the pump to
the motherboard.
