Hughes HX-200 Installation Procedure

Hide thumbs Also See for HX-200:

Advertisement

Quick Links

Download this manual
HX-200/Linear Installation Procedure
When installing a Pre-Commissioned HX 200 follow the procedure in Appendix C
1. Assemble and install the antenna mount as per instructions included with unit.
2. Assemble the antenna and install on the mount as per instructions included with unit
3. Pull and terminate 2 IFL cables from the antenna location to the HX-200 IDU location

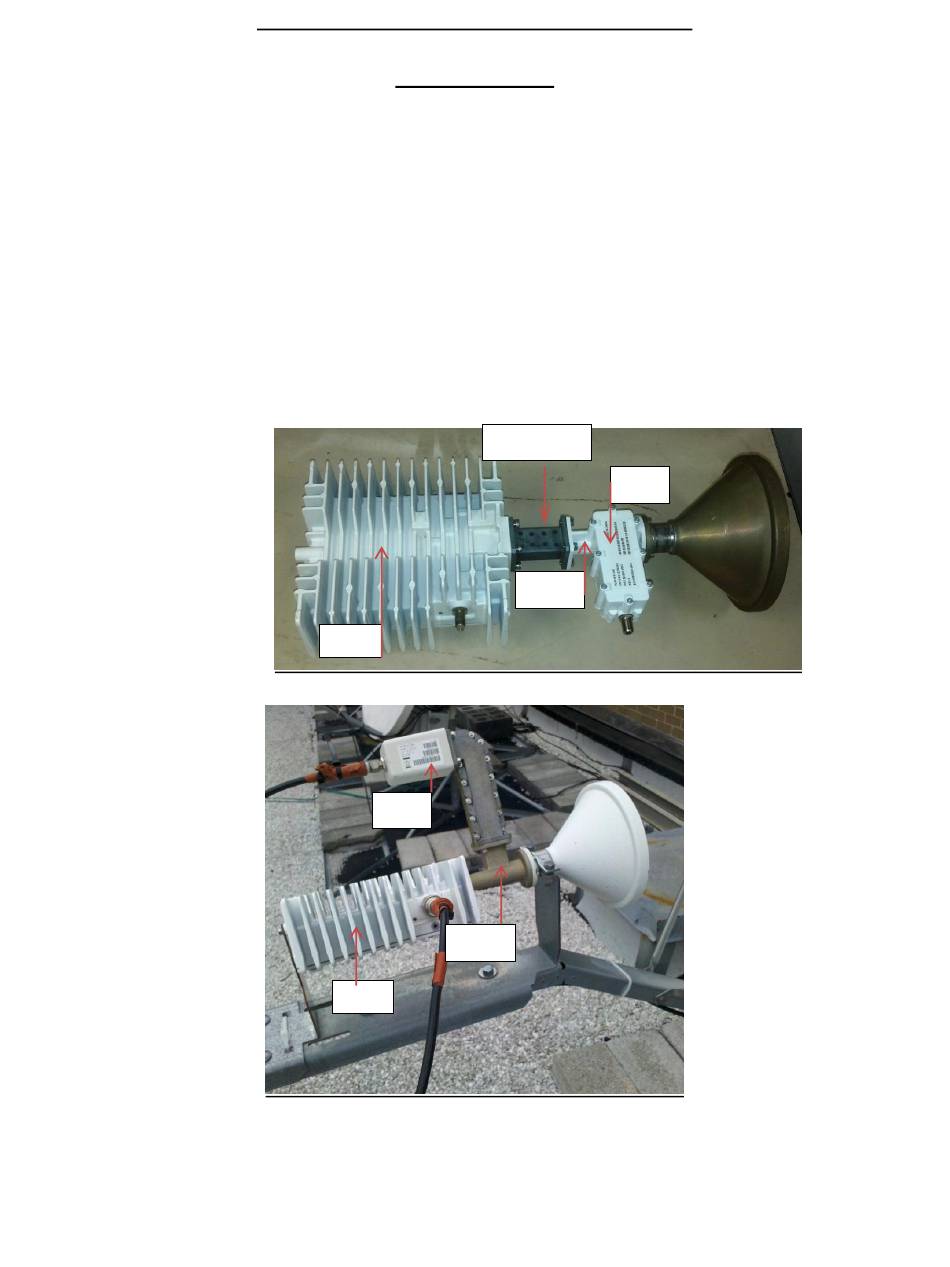

4. Assemble the Linear Radio (BUC, LNB, OMT, Transition, and Feed horn. Attach the assembly to
the antenna. Reference Appendix A (this instruction also included with the unit)
5. Connect the IFL cables to RFU and HX200
Revision A.04
Transition
BUC
LNB
OMT
BUC
1
LNB
OMT
