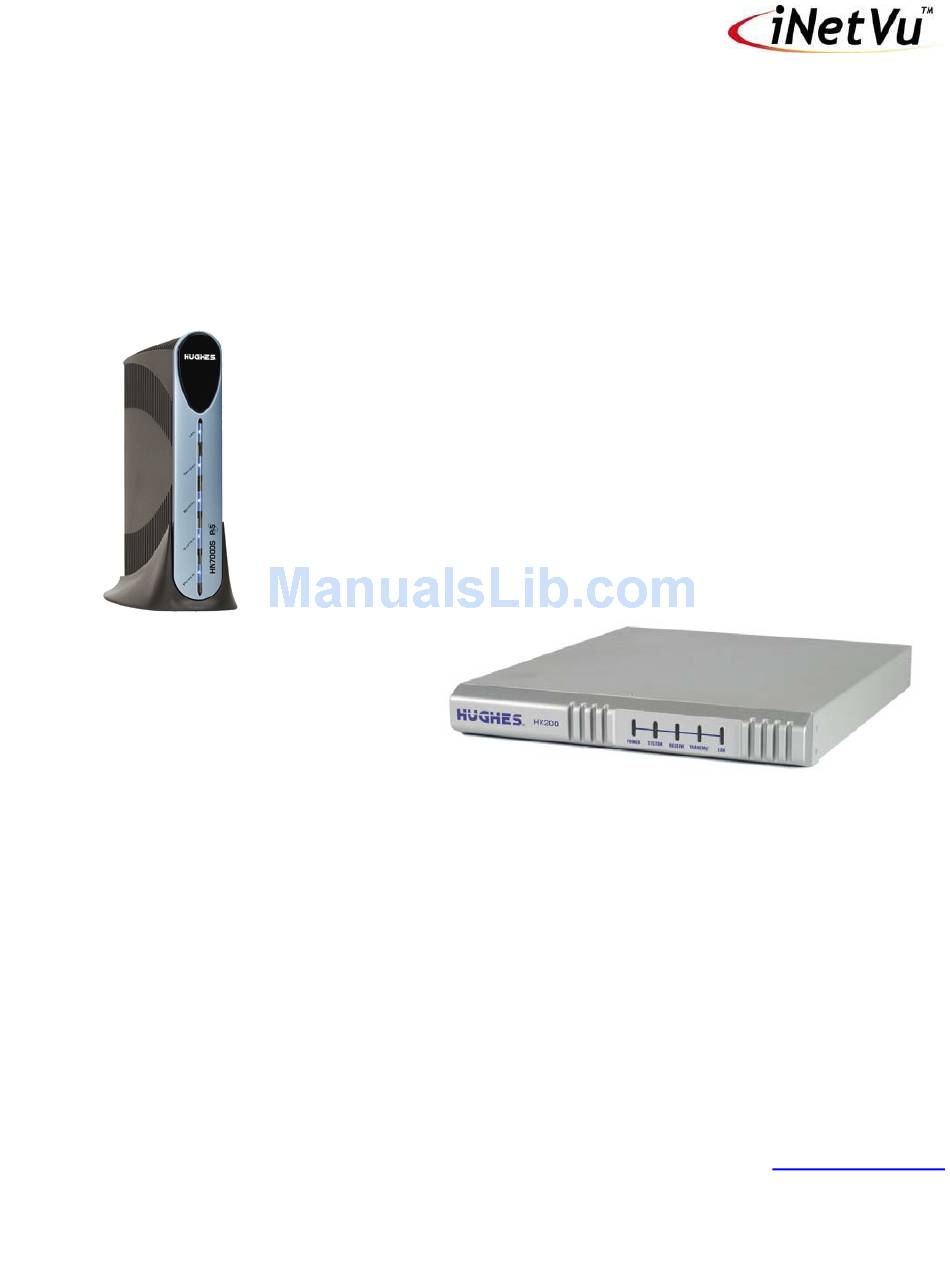

- Page 1 Hughes and the iNetVu® 7000 Series Controller HN 7000 Ku-band broadband satellite Router HX 200/220 Ku-band broadband satellite Router 1-877-iNetVu6 www.c-comsat.com Revision 2.4 September 19, 2014...
- Page 2 INETVU® MOBILE SYSTEM QUICK START – HUGHES KU This page is intentionally left blank. C-COM Satellite Systems Inc Page 2...
-
Page 3: Safety And Warning Information
For your safety and protection the following important safety information should be reviewed before installation, configuration and use of the iNetVu Satellite Platform System and Modem equipment. It is also recommended to read the manual in its entirety prior to setup and operation. -
Page 4: System Overview
DSL do not exist. It provides two-way, high-speed data communications over satellite. iNetVu™ empowers mobile users with the ability to stop anywhere there is Satellite coverage and access Internet at broadband speeds. The iNetVu™ Mobile application consists of the iNetVu™ Mobile software 7000 software (for the 7000 Series Controller) iNetVu™... -
Page 5: Pre-Configuration Check List
INETVU® MOBILE SYSTEM QUICK START – HUGHES KU Pre-Configuration Check List The following items should be completed/known prior to configuring the iNetVu® Mobile System. Contact the Network Operation Center (NOC) if any of the following items are unknown or if you are unfamiliar with them. - Page 6 INETVU® MOBILE SYSTEM QUICK START – HUGHES KU System Wiring with Hughes Net Service Note: The following diagrams are a general reference only. An external splitter can be used in all scenarios. Please consult with your NOC or Service provider USB Interface Connection –...
- Page 7 INETVU® MOBILE SYSTEM QUICK START – HUGHES KU Network Interface Connection – System Wiring Motor Control Cable Sensor Cable RG6 Coaxial Cable Network Cable Power Cable Antenna Sensor Cable *Ground protection Motor Cable 24 VDC IP: A.B.C.D+1 Input SUB: 255.X.Y.Z...
- Page 8 INETVU® MOBILE SYSTEM QUICK START – HUGHES KU HX Interface Connection and System Wiring with Splitter Motor Control Cable Sensor Cable RG6 Coaxial Cable Network Cable Power Cable Antenna Sensor Cable *Ground protection RX IN Motor Cable 24 VDC Input IP: A.B.C.D+1...
- Page 9 The 7000 Controller may be configured via the Software Application / Web Interface / LCD interface. Only one is necessary for complete configuration. iNetVu® Software Application (preferred method) First time user should use the iNetVu Wizard which is imbedded into the iNetVu software for guidance in configuring your system. ...
-
Page 10: Tips And Recommendations
Override Compass can be selected without selecting Full Search but this does not hold true for the vice-versa. Refer to Controller User Manual for more information on using the iNetVu Controller and options associated with your system. C-COM Satellite Systems Inc... - Page 11 INETVU® MOBILE SYSTEM QUICK START – HUGHES KU 1.10 Software Setup and Initial Configuration Procedure with Hughes Service 1. If you are using the network interface to communicate with the 7000 Controller, set the PC/Notebook to the same network as the 7000 Controller.
-
Page 12: Software Installation
INETVU® MOBILE SYSTEM QUICK START – HUGHES KU 5. Set the 7000 Controller to the same network as the PC and VSAT Modem. *Note: The controller IP should be set in the controller through the LCD interface prior to entering it into the software tool for proper PC to Controller Communication through network interface. - Page 13 INETVU® MOBILE SYSTEM QUICK START – HUGHES KU Note: The Driver installation will be done in two stages. FTDI CDM Drivers and, USB Drivers. 3. Continue thought the FTDI CDM Driver Installation Wizard. Click “Extract” Click “Next” Click “Finish” 4. Continue through the USB Driver Installation Wizard.
- Page 14 INETVU® MOBILE SYSTEM QUICK START – HUGHES KU 5. Now continue through the iNetVu Software installation and close when complete. A new Icon will automatically be placed on the Desktop. 6. Now that the drivers and software package has been installed, connect the iNetVu 7000 Controller via USB to your PC.
- Page 15 INETVU® MOBILE SYSTEM QUICK START – HUGHES KU 1.12 iNetVu Setup Wizard 1. The first screen you will see is the new iNetVu Setup Wizard. You can choose to continue using the wizard or click NO to proceed to the iNetVu Mobile 7000 software.
- Page 16 INETVU® MOBILE SYSTEM QUICK START – HUGHES KU 3. Follow the on screen instructions to update the controller firmware. Once complete the wizard will resume. C-COM Satellite Systems Inc Page 16...
- Page 17 INETVU® MOBILE SYSTEM QUICK START – HUGHES KU 4. Configure the Platform Type, Version and Serial No. If no changes are needed press “Next” to continue. Platform Type: Antenna Model Version: Antenna Version Serial No: Antenna Serial Number It is important that this information be correct or will result in undesired antenna behavior.
- Page 18 INETVU® MOBILE SYSTEM QUICK START – HUGHES KU 5. Complete the Service Information section, set to HNS as the Service Type. Select the Interface method you wish to use and configure accordingly. Mouse over each selection for a detailed description. After changes have been made please click “Next” to continue.
- Page 19 INETVU® MOBILE SYSTEM QUICK START – HUGHES KU 6. Complete the Satellite Parameters, DVB Settings and Search Method. Mouse over each selection for a detailed description. Click Finish when complete. Satellite Parameters: Longitude: Satellite you will be searching on Receive Polarity (Vertical or Horizontal)
- Page 20 8. Congratulations you have configured your iNetVu Controller. You can now find satellite by pressing the FIND SAT button from the front panel or by launching the iNetvu Software. *For more detailed information on the iNetVu® 7000 Controller Software, refer to the iNetVu® 7000...
