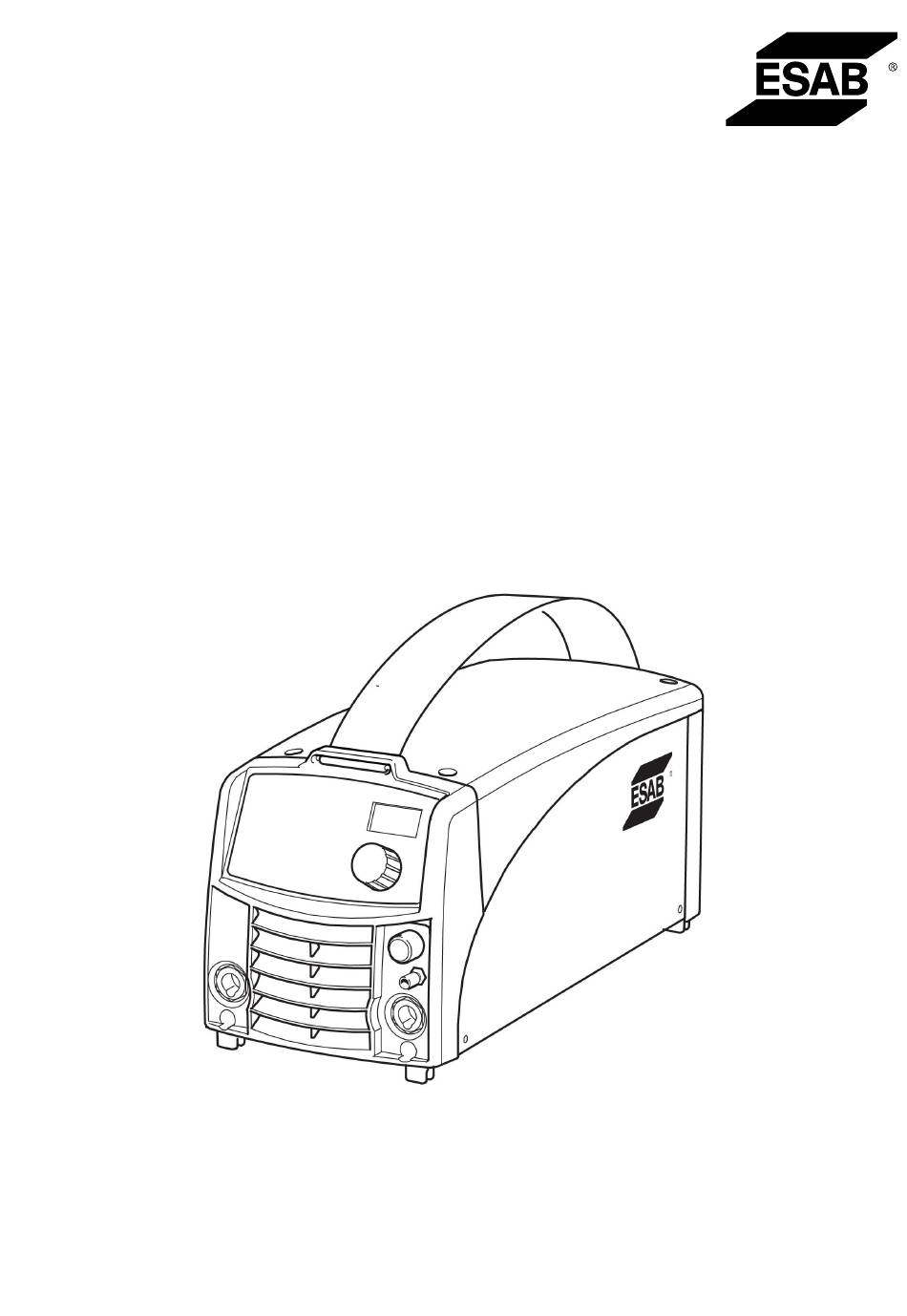

- Page 1 Caddy® Tig 1500i VRD Tig 2200i VRD Instruction manual Valid for: serial no. Tig 1500i: 711-, 747-, 840-xxx-xxxx, Tig 2200i: 747-xxx-xxxx 0460 826 374 GB 20190125...
-
Page 3: Table Of Contents
Turning on the power source ..............MAINTENANCE ................... Inspection and cleaning................. TROUBLESHOOTING ................. ORDERING SPARE PARTS ................ DIAGRAM ......................ORDERING NUMBERS ..................23 ACCESSORIES ....................24 Rights reserved to alter specifications without notice. 0460 826 374 © ESAB AB 2019... -
Page 4: Safety
Safety Data Sheets (SDSs). Safety precautions Users of ESAB equipment have the ultimate responsibility for ensuring that anyone who works on or near the equipment observes all the relevant safety precautions. Safety precautions must meet the requirements that apply to this type of equipment. The following recommendations should be observed in addition to the standard regulations that apply to the workplace. - Page 5 Protect your eyes and body. Use the correct welding screen and filter lens and wear protective clothing. • Protect bystanders with suitable screens or curtains. NOISE - Excessive noise can damage hearing Protect your ears. Use earmuffs or other hearing protection. 0460 826 374 - 5 - © ESAB AB 2019...
- Page 6 For further information contact the nearest ESAB dealer. ESAB has an assortment of welding accessories and personal protection equipment for purchase. For ordering information contact your local ESAB dealer or visit us on our website. 0460 826 374 - 6 - ©...
-
Page 7: Introduction

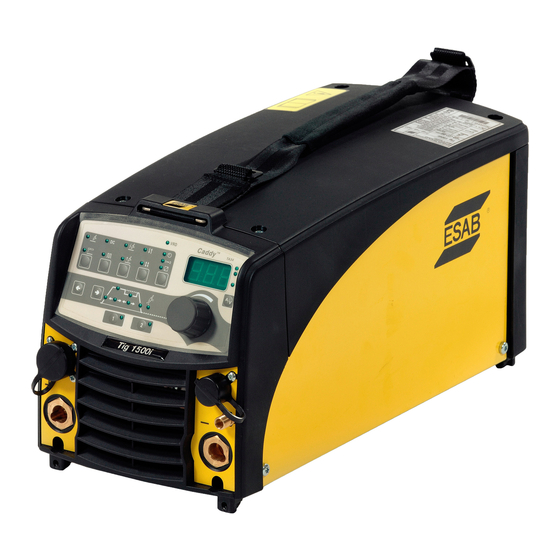

The Tig 1500i / 2200i is a TIG (GTAW) welding power source, which can also be used for MMA (SMAW) welding. It supplies direct current (DC). ESAB accessories for the product can be found in the "ACCESSORIES" chapter of this manual. -
Page 8: Technical Data
55-60 V 55-60 V (GTAW) Open-circuit voltage MMA 55-60 V 55-60 V (SMAW) with VRD < 35 V < 35 V No-load voltage without VRD, U 56 V with VRD, U 22 V 0460 826 374 - 8 - © ESAB AB 2019... - Page 9 Mains supply, Z Maximum permissible line impedance of the network in accordance with IEC 61000-3-11. 0460 826 374 - 9 - © ESAB AB 2019...
-
Page 10: Installation
Phase current I 11 A 11 A 14 A 1eff Fuse anti-surge 16 A 16 A 16 A 16 A type C MCB 13 A 13 A 16 A 16 A 0460 826 374 - 10 - © ESAB AB 2019... - Page 11 The mains cable areas and fuse sizes as shown above are in accordance with Swedish regulations. For other regions, supply cables must be suitable for the application and meet local and national regulations. 0460 826 374 - 11 - © ESAB AB 2019...
-
Page 12: Operation
Before using the Tig 1500i/2200i for TIG (GTAW) welding it must be equipped with: • a TIG (GTAW) torch • a cylinder of suitable welding gas • a welding gas regulator (suitable gas regulator) 0460 826 374 - 12 - © ESAB AB 2019... -
Page 13: Mma (Smaw)-Welding
Whether the mains power supply is interrupted or the power unit is switched off in the normal manner, welding data will be stored and is available next time the unit is started. 0460 826 374 - 13 - © ESAB AB 2019... -
Page 14: Maintenance
Clogged or blocked air inlets and outlets otherwise result in overheating. Welding torch The welding torch's wear parts should be cleaned and replaced at regular intervals in order to achieve trouble-free welding. 0460 826 374 - 14 - © ESAB AB 2019... -
Page 15: Troubleshooting
Check that the welding current supply and return cables are correctly connected. • Check that the correct current value is set. • Check that the correct electrodes are being used. • Check the gas flow. 0460 826 374 - 15 - © ESAB AB 2019... -
Page 16: Ordering Spare Parts
Spare parts and wear parts can be ordered through your nearest ESAB dealer, see esab.com. When ordering, please state product type, serial number, designation and spare part number in accordance with the spare parts list. -
Page 17: Diagram
DIAGRAM DIAGRAM Tig 1500i TA34 0460 826 374 - 17 - © ESAB AB 2019... - Page 18 DIAGRAM 0460 826 374 - 18 - © ESAB AB 2019...
- Page 19 DIAGRAM Tig 1500i TA33 0460 826 374 - 19 - © ESAB AB 2019...
- Page 20 DIAGRAM 0460 826 374 - 20 - © ESAB AB 2019...
- Page 21 DIAGRAM Tig 2200i TA33/TA34 0460 826 374 - 21 - © ESAB AB 2019...
- Page 22 DIAGRAM 0460 826 374 - 22 - © ESAB AB 2019...
-
Page 23: Ordering Numbers
Spare parts list Control panel, Caddy® TA33 0459 839 028 Spare parts list Control panel, Caddy® TA34 Instruction manuals and the spare parts list are available on the Internet at: www.esab.com 0460 826 374 - 23 - © ESAB AB 2019... -
Page 24: Accessories
TXH 151r, 4 m (13.1 ft) 0700 300 626 TXH 151r, 8 m (26.2 ft) 0700 300 628 TXH 201r, 4 m (13.1 ft) 0700 300 630 TXH 201r, 8 m (26.2 ft) 0460 826 374 - 24 - © ESAB AB 2019... - Page 25 0459 554 881 10 m (32.8 ft) 0459 554 882 15 m (49.2 ft) 0459 554 883 25 m (82.0 ft) 0459 554 884 0.25 m (0.8 ft) Only with TA34 0460 826 374 - 25 - © ESAB AB 2019...
- Page 26 ACCESSORIES 0460 315 880 Foot pedal TI Foot CAN Only with TA34 0460 144 880 Cooling unit CoolMini 0460 509 880 Assembly kit Only for Tig 2200i 0460 826 374 - 26 - © ESAB AB 2019...
- Page 27 ACCESSORIES 0460 826 374 - 27 - © ESAB AB 2019...
