Supplementary information

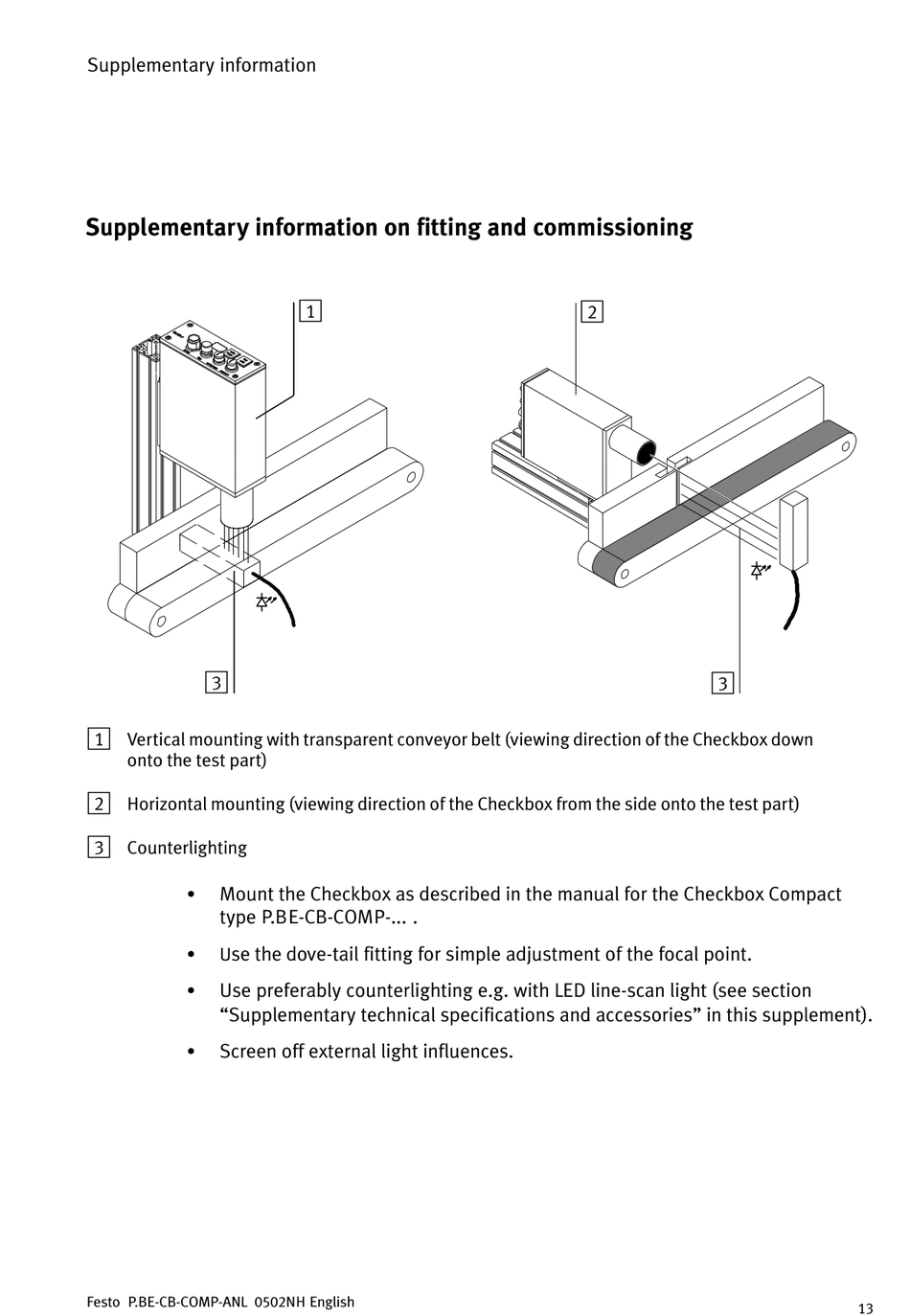

Supplementary information on fitting and commissioning
3
1
Vertical mounting with transparent conveyor belt (viewing direction of the Checkbox down
onto the test part)
2
Horizontal mounting (viewing direction of the Checkbox from the side onto the test part)
3
Counterlighting
Mount the Checkbox as described in the manual for the Checkbox Compact
S
type P.BE−CB−COMP−... .
se the dove−tail fitting for simple adjustment of the focal point.
U
S
Use preferably counterlighting e.g. with LED line−scan light (see section
S
Supplementary technical specifications and accessories" in this supplement).
Screen off external light influences.
S
