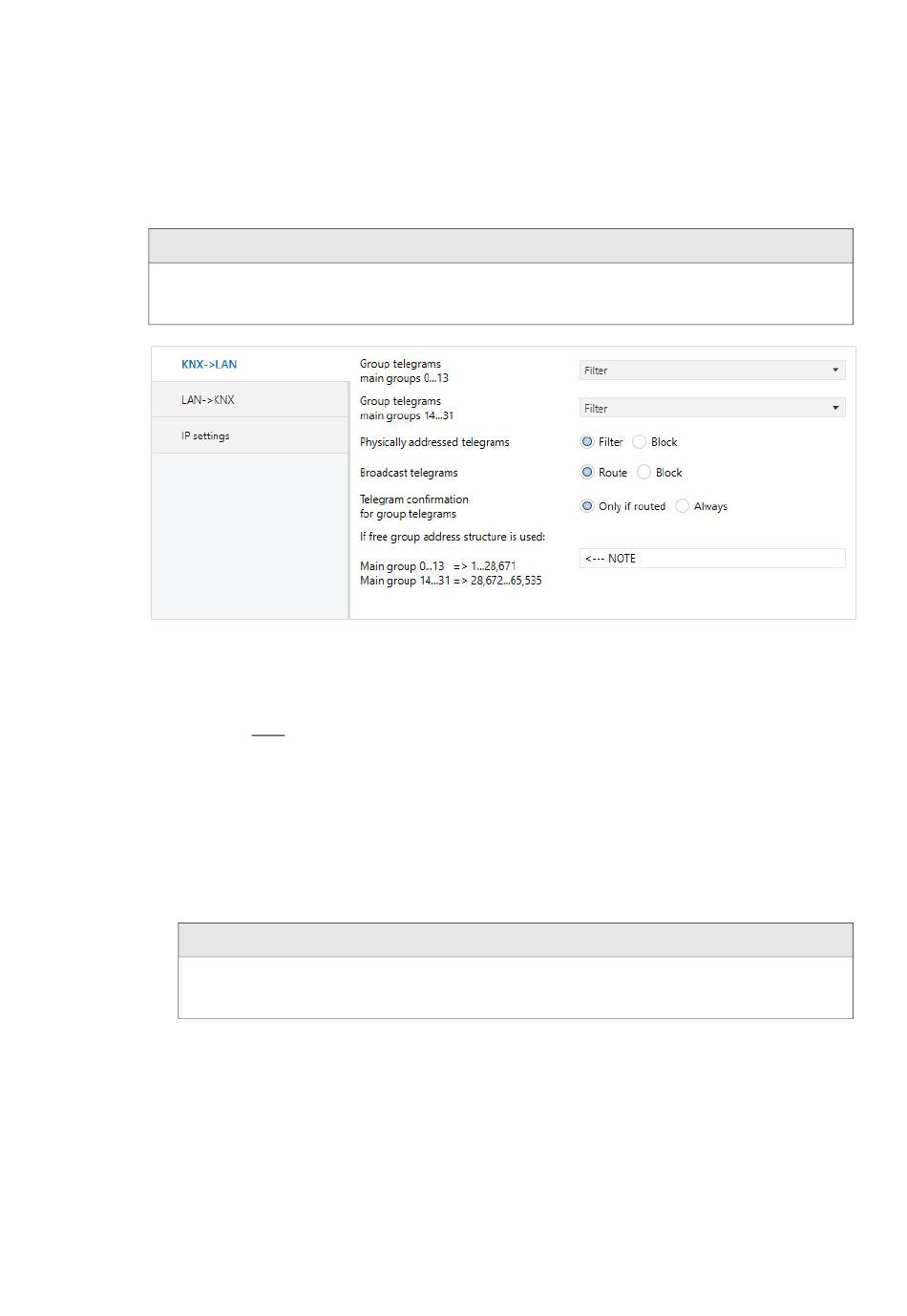

Parameter window KNX -> LAN
In the parameter window KNX -> LAN it is possible to define the processing of telegrams from the KNX
system to the LAN network.
Note
The device is supplied with the option Route. This is not the default setting in the application, but it
simplifies commissioning.
The programmed setting will be adopted after the first download.
Group telegrams
main groups 0...13
Options:
This parameter defines whether the telegrams with group addresses of the main groups 0 to 13 are
filtered, routed or blocked.
Filter: The telegrams with the group addresses of the main groups 0 to 13 from the KNX to the LAN
•
are filtered in accordance with the filter table, which is automatically calculated by the ETS.
Route: All group telegrams of main groups 0 to 13 are routed without considering the filter table
•
settings.
•
Block: All group telegrams of main groups 0 to 13 are blocked without considering the filter table
settings.
20 2CDC502099D0211 Rev. A | IPR/S 3.5.1
Filter
Route
Block
Important
This setting is useful only for commissioning and diagnostics. It should not be used during normal
operation.
As this setting can overload the KNX lines, a loss of telegrams could occur.
