Connection Diagram - ABB i-bus KNX IPR/S 3.5.1 Product Manual

ABB i-bus ® KNX
Device technology
2.2

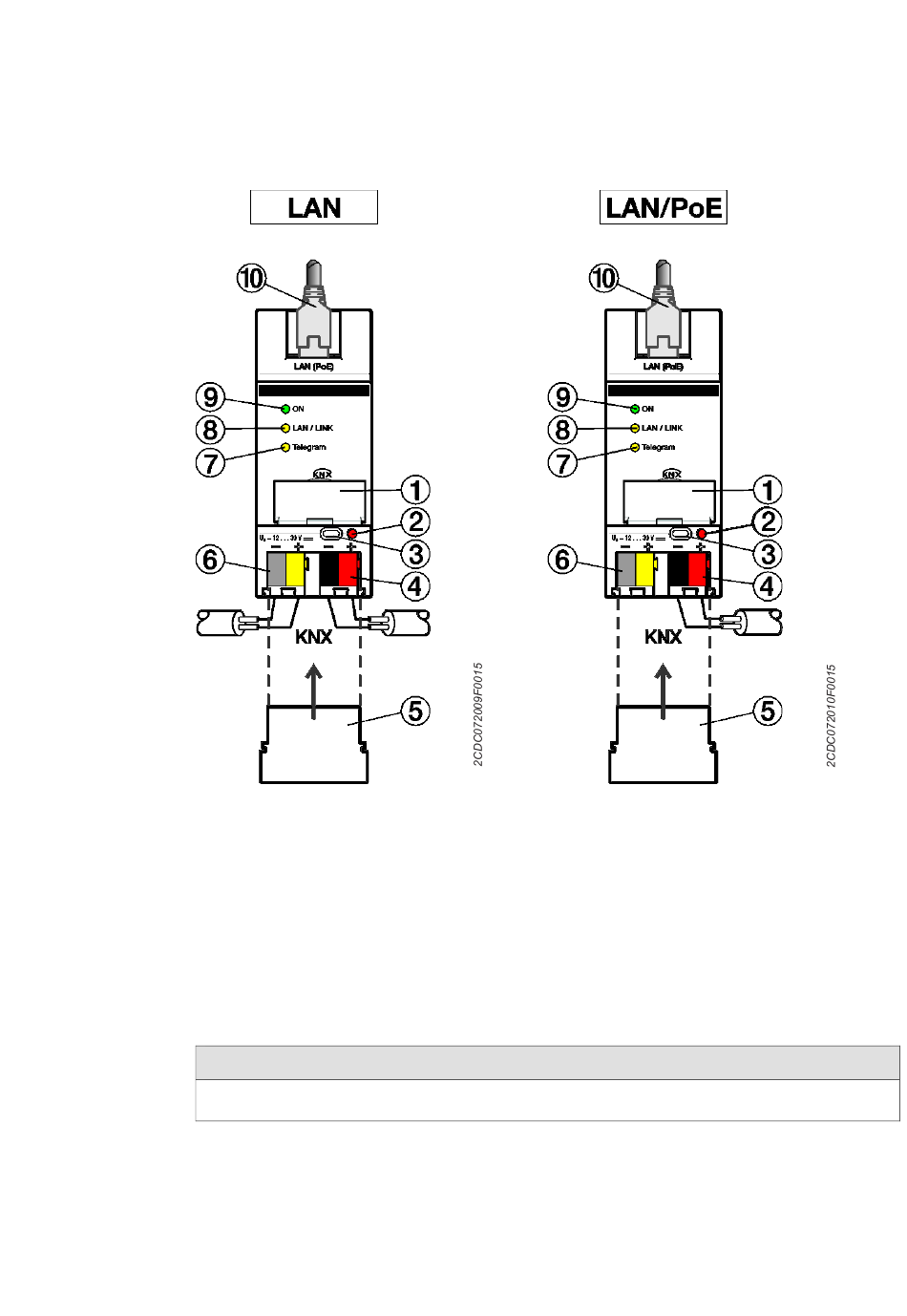

Connection diagram

IPR/S 3.5.1
Legend
1
2
3
4
5
Note
It is also possible to power the Router via the voltage output without choke of an ABB KNX power
supply (type SV/S).
Label carrier
Programming LED
Programming button
KNX connection
Cover cap
6
Power supply connection U
7 Telegram LED
8
LAN/LINK LED
9
ON LED
10 LAN or LAN/PoE connection
IPR/S 3.5.1 | 2CDC502099D0211 Rev. A 13
