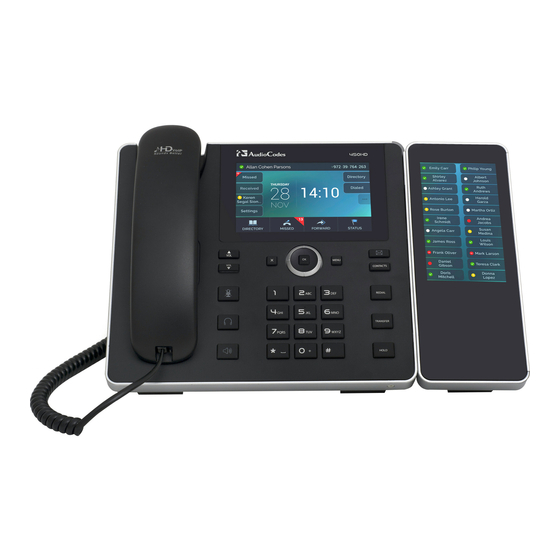

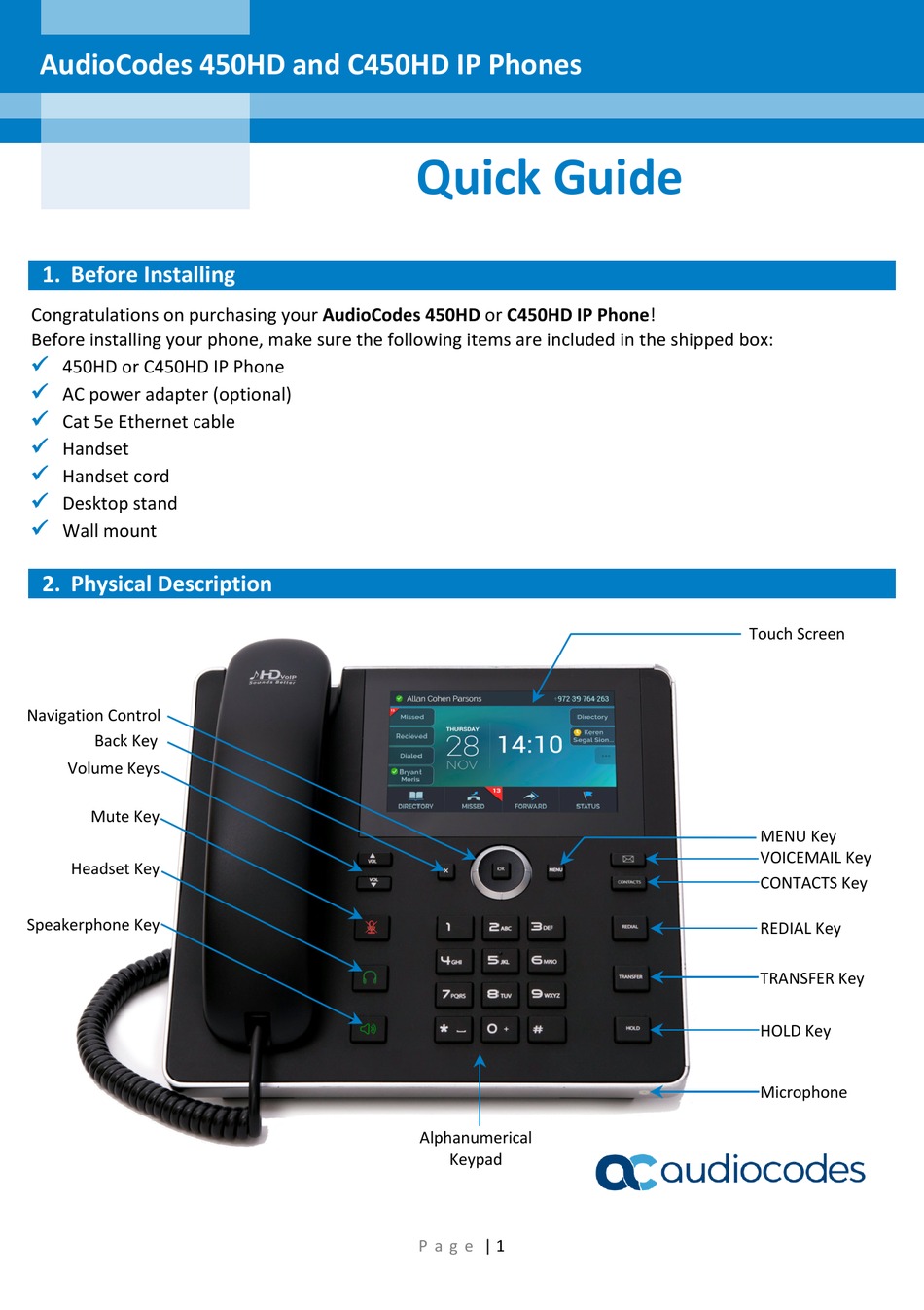

AudioCodes 450HD and C450HD IP Phones
1. Before Installing
Congratulations on purchasing your AudioCodes 450HD or C450HD IP Phone!
Before installing your phone, make sure the following items are included in the shipped box:
450HD or C450HD IP Phone
AC power adapter (optional)
Cat 5e Ethernet cable
Handset
Handset cord
Desktop stand
Wall mount
2. Physical Description
Navigation Control
Back Key
Volume Keys
Mute Key
Headset Key
Speakerphone Key
Quick Guide
Alphanumerical
Keypad
P a g e
| 1
Touch Screen
MENU Key
VOICEMAIL Key
CONTACTS Key
REDIAL Key
TRANSFER Key
HOLD Key
Microphone
Advertisement
Related Manuals for AudioCodes 450HD
Summary of Contents for AudioCodes 450HD
- Page 1 AudioCodes 450HD and C450HD IP Phones Quick Guide 1. Before Installing Congratulations on purchasing your AudioCodes 450HD or C450HD IP Phone! Before installing your phone, make sure the following items are included in the shipped box: 450HD or C450HD IP Phone ...
-
Page 2: Cabling The Phone
3. Cabling the Phone Warning: Prior to connecting power, refer to the Compliancy and Regulatory Information document at https://www.audiocodes.com/library/technical-documents. To cable the phone: [Refer to the illustration below] Connect the short, straight end of the phone cord to the handset and the longer straight end of the cord to the handset jack on the phone. - Page 3 Note: This section is applicable only to Skype for Business/Teams Compatible. To sign in with Skype for Business client when using BToE: Refer to the 450HD or the C450HD IP Phone User's Manual. To sign in with a PIN code (excludes access to Microsoft Outlook Calendar): In the Offline idle screen, touch Sign In, and then touch the PIN Code option.
- Page 4 To sign in with a username and password: In the Offline idle screen, touch Sign In, and then touch the User name and Password option. Enter the ‘Sign-in address’ (SIP address), (e.g., john.doe@enterprise.com) and ‘User name’, (e.g., johnd@enterprise.com), and then enter the password. Get it from the network administrator (it’s the same as the Windows credentials).
- Page 5 Enter the ‘Sign-in address’ (SIP address), (e.g., john.doe@enterprise.com) and ‘User name’, (e.g., johnd@enterprise.com), and then enter the password. To sign in with Web Login: In the Offline idle screen, touch Sign In, and then touch the Web Login option. Using your web browser, navigate to the URL shown in the Web Login screen (above).
- Page 6 To sign in with the Device Manager: If the IP phone is managed by the Device Manager, web login is performed using a dedicated web login screen. Using your web browser, navigate to the URL shown in the Web Login screen (below). Enter the 'Code ID', ‘Sign-in address’...
-
Page 7: Changing Your Presence Status
6. Changing your Presence Status Note: This section is applicable only to Skype for Business/Teams Compatible. Presence To change your presence: Touch the STATUS menu, touch the required presence option, and then touch the SELECT menu. To enable Skype for Business to automatically update presence: Touch the STATUS menu, and then navigate to and select Reset. - Page 8 8. Connecting to a Router via Wi-Fi Note: This section is applicable only to C450HD (models ordered with Wi-Fi functionality). The phone can connect to an Access Point via Wi-Fi. The Wi-Fi interface can be used to make VoIP calls over Wi-Fi, when the phone is installed in an environment free of LAN/cables.
- Page 9 After enabling Wi-Fi, "Searching for networks…" is displayed. The phone then displays the available Wi-Fi Access Points. Touch the Refresh softkey to display more networks. Select the desired Wi-Fi Access Point (network): Enter the Wi-Fi password if needed, and then touch the Connect softkey: When connected to the Access Point, "Connected"...
-
Page 10: Configuring Bluetooth
10. Configuring Bluetooth Note: This section is applicable only to C450HD (models ordered with Bluetooth functionality). The Bluetooth interface is used to connect the phone to a wireless headset or speaker. To pair and connect a remote Bluetooth device: Press the phone’s MENU hard key, and then select the Settings option. - Page 11 When the scan finishes, the "Scan finished!!" message is displayed. Select one of the Bluetooth devices listed, let it enter ‘pair mode’, and then click the Pair softkey. Once paired successfully, touch the Connect softkey to connect the remote device; "Connected"...
- Page 12 Information contained in this document is believed to be accurate and reliable at the time of printing. However, due to ongoing product improvements and revisions, AudioCodes cannot guarantee accuracy of printed material after the Date Published nor can it accept responsibility for errors or omissions. Updates to this document can be downloaded from https://www.audiocodes.com/library/technical-documents.
