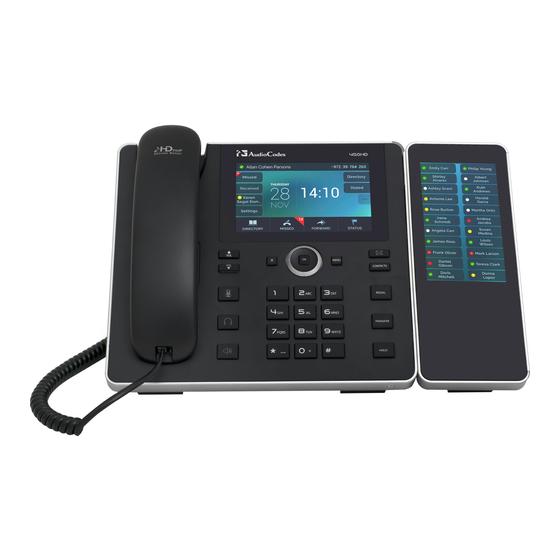

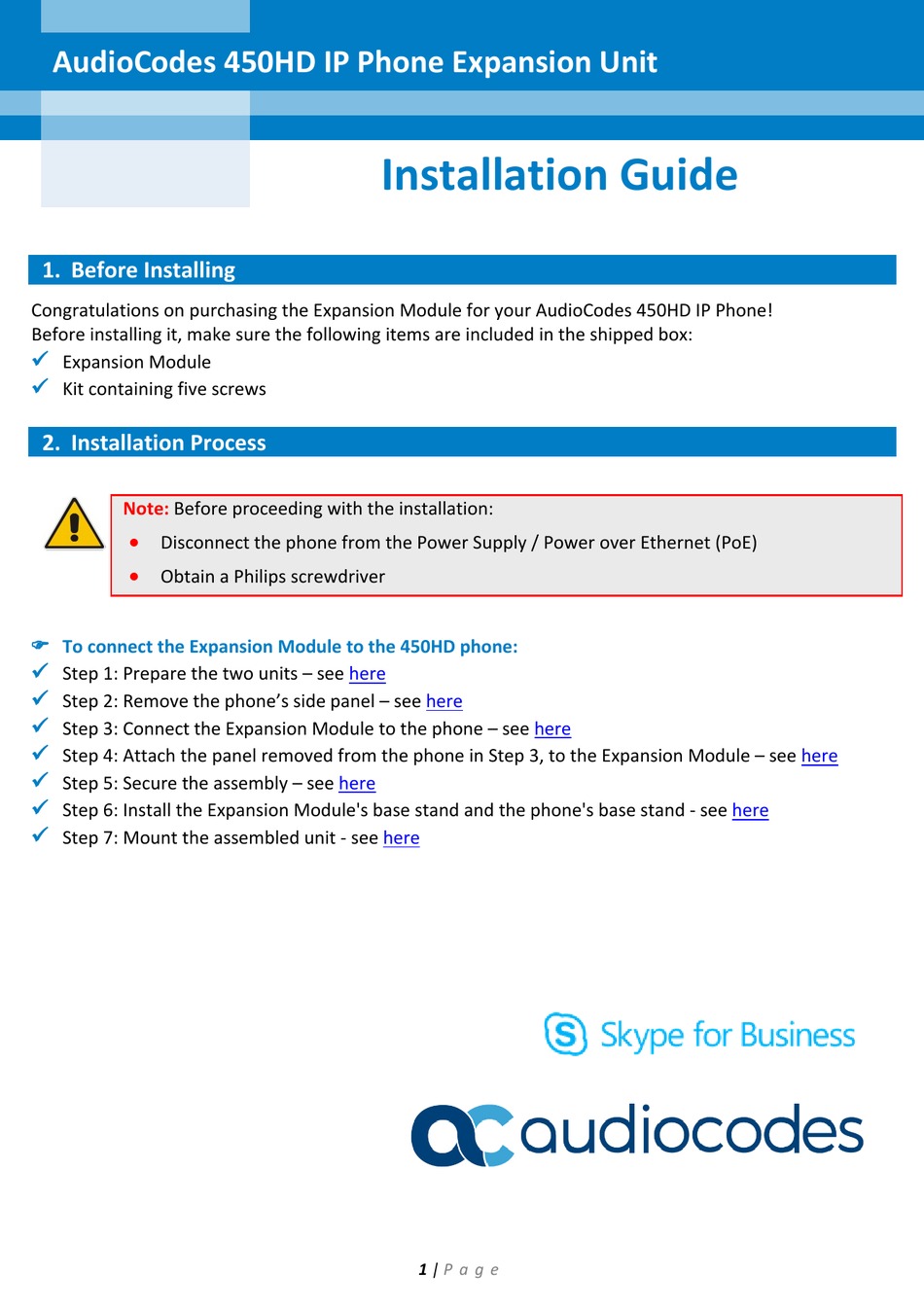

AudioCodes 450HD IP Phone Expansion Unit

1. Before Installing

Congratulations on purchasing the Expansion Module for your AudioCodes 450HD IP Phone!
Before installing it, make sure the following items are included in the shipped box:
Expansion Module
Kit containing five screws

2. Installation Process

Note:
Before proceeding with the installation:
•
Disconnect the phone from the Power Supply / Power over Ethernet (PoE)
•
Obtain a Philips screwdriver
 To connect the Expansion Module to the 450HD phone:
Step 1: Prepare the two units – see
Step 2: Remove the phone's side panel – see
Step 3: Connect the Expansion Module to the phone – see
Step 4: Attach the panel removed from the phone in Step 3, to the Expansion Module – see
Step 5: Secure the assembly – see
Step 6: Install the Expansion Module's base stand and the phone's base stand - see
Step 7: Mount the assembled unit - see
Installation Guide
here
here
here
here
1 |
P a g e
here
here
here
