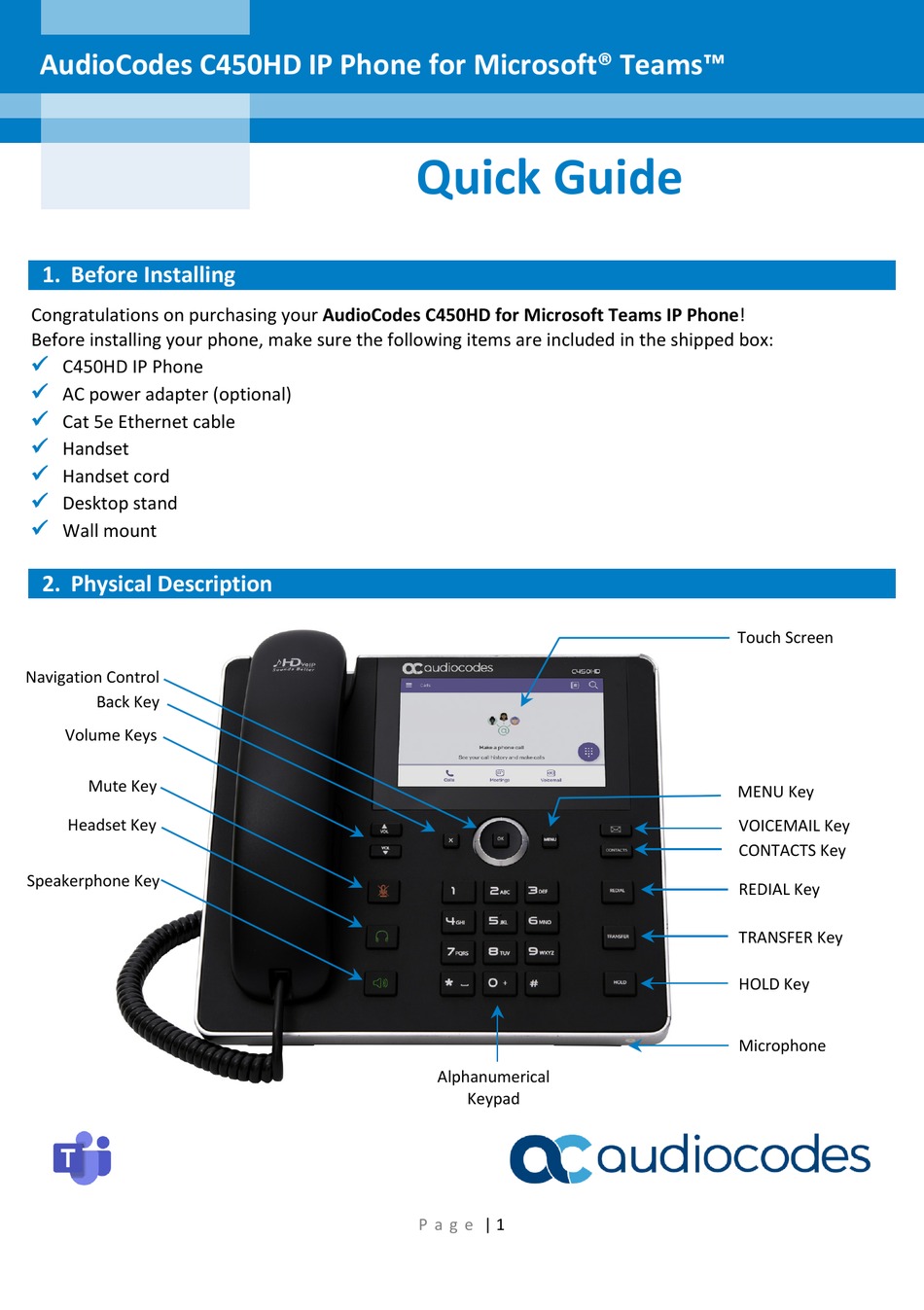

AudioCodes C450HD IP Phone for Microsoft® Teams™
1. Before Installing
Congratulations on purchasing your AudioCodes C450HD for Microsoft Teams IP Phone!
Before installing your phone, make sure the following items are included in the shipped box:
C450HD IP Phone
AC power adapter (optional)
Cat 5e Ethernet cable
Handset
Handset cord
Desktop stand
Wall mount

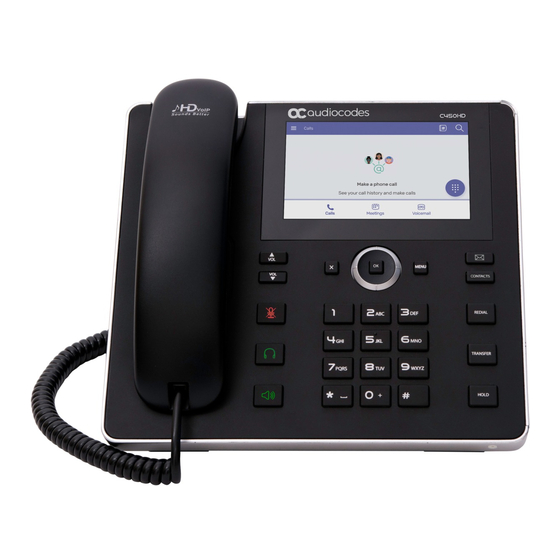

2. Physical Description
Navigation Control
Back Key
Volume Keys
Mute Key
Headset Key
Speakerphone Key
Quick Guide
Alphanumerical
Keypad
P a g e
| 1
Touch Screen
MENU Key
VOICEMAIL Key
CONTACTS Key
REDIAL Key
TRANSFER Key
HOLD Key
Microphone

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C450HD and is the answer not in the manual?

Questions and answers

Related Manuals for AudioCodes C450HD

Summary of Contents for AudioCodes C450HD

  • Page 1 AudioCodes C450HD IP Phone for Microsoft® Teams™ Quick Guide 1. Before Installing Congratulations on purchasing your AudioCodes C450HD for Microsoft Teams IP Phone! Before installing your phone, make sure the following items are included in the shipped box: C450HD IP Phone ...

  • Page 2: Cabling The Phone

    3. Cabling the Phone Warning: Prior to connecting power, refer to the Compliancy and Regulatory Information document at https://www.audiocodes.com/library/technical-documents.  To cable the phone: [Refer to the illustration below] Connect the short, straight end of the phone cord to the handset and the longer straight end of the cord to the handset jack on the phone.
  • Page 3 4. Mounting the Phone on a Desktop or Wall Desktop: Slide the L-shaped stand's short or long edge slots onto these rails.  Wall: Slide the wall mount fitting onto these rails.  Desk Mount P a g e...
  • Page 4 Wall Mount To mount the phone on a wall:  Using the mounting plate's two screw holes as a template, mark the locations on the wall where you want to mount the phone. The horizontal distance between the screw holes is 4 7/8 inches (123.8 mm).
  • Page 5 Hang the plate on the screws. Attach the phone to the plate. Note: Wall mounting is not supported when the Expansion Module is attached to the IP Phone. P a g e...
  • Page 6 Touch the Sign In button, and then select the Sign in from another device option. In the Web browser, navigate to https://microsoft.com/devicelogin. In the Microsoft Web page, enter the code shown on the C450HD screen, and then complete the process by entering your username and password.

  • Page 7: Changing Your Presence Status

     To sign out: Swipe right, touch Settings, and then select the Sign Out option and confirm. 6. Changing your Presence Status To change your presence status: Swipe right, touch the current presence status, and then select  the status you require. P a g e...

  • Page 8: Basic Phone Operations

    7. Basic Phone Operations For basic phone operations, refer to Microsoft documentation, and AudioCodes C450HD IP Phone for Microsoft Teams User's and Administrator's Manual. 8. Connecting to a Router via Wi-Fi Note: This section is applicable only to models with Wi-Fi functionality.
  • Page 9 9. Enabling or Disabling Wi-Fi  To enable Wi-Fi: Turn Wi-Fi on by moving the switch in the upper right corner, to the On position (Wi-Fi is disabled by default). After enabling Wi-Fi, "Searching for Wi-Fi networks…" is displayed. The phone then displays the available Wi-Fi Access Points.

  • Page 10: Configuring Bluetooth

    10. Configuring Bluetooth Note: This section is applicable only to models with Bluetooth functionality. The Bluetooth interface is used to connect the phone to a wireless headset or speaker. To pair and connect a remote Bluetooth device:  Press the phone’s MENU hard key to access the 'Settings' menu. In the Settings screen, select the Bluetooth option, and then in the Bluetooth screen, move the switch to On to start Bluetooth scanning.
  • Page 11 Select the desired Bluetooth device to pair. If prompted for the Bluetooth Pairing code, enter it, and then touch Pair. Once successfully paired, the Bluetooth audio device appears under the ‘Paired devices’ section. To connect, touch the device name. To unpair the device, touch the gear icon on the right of the device name, and then click Forget.

  • Page 12: Notice Information

    Information contained in this document is believed to be accurate and reliable at the time of printing. However, due to ongoing product improvements and revisions, AudioCodes cannot guarantee accuracy of printed material after the Date Published nor can it accept responsibility for errors or omissions. Updates to this document can be downloaded from https://www.audiocodes.com/library/technical-documents.
