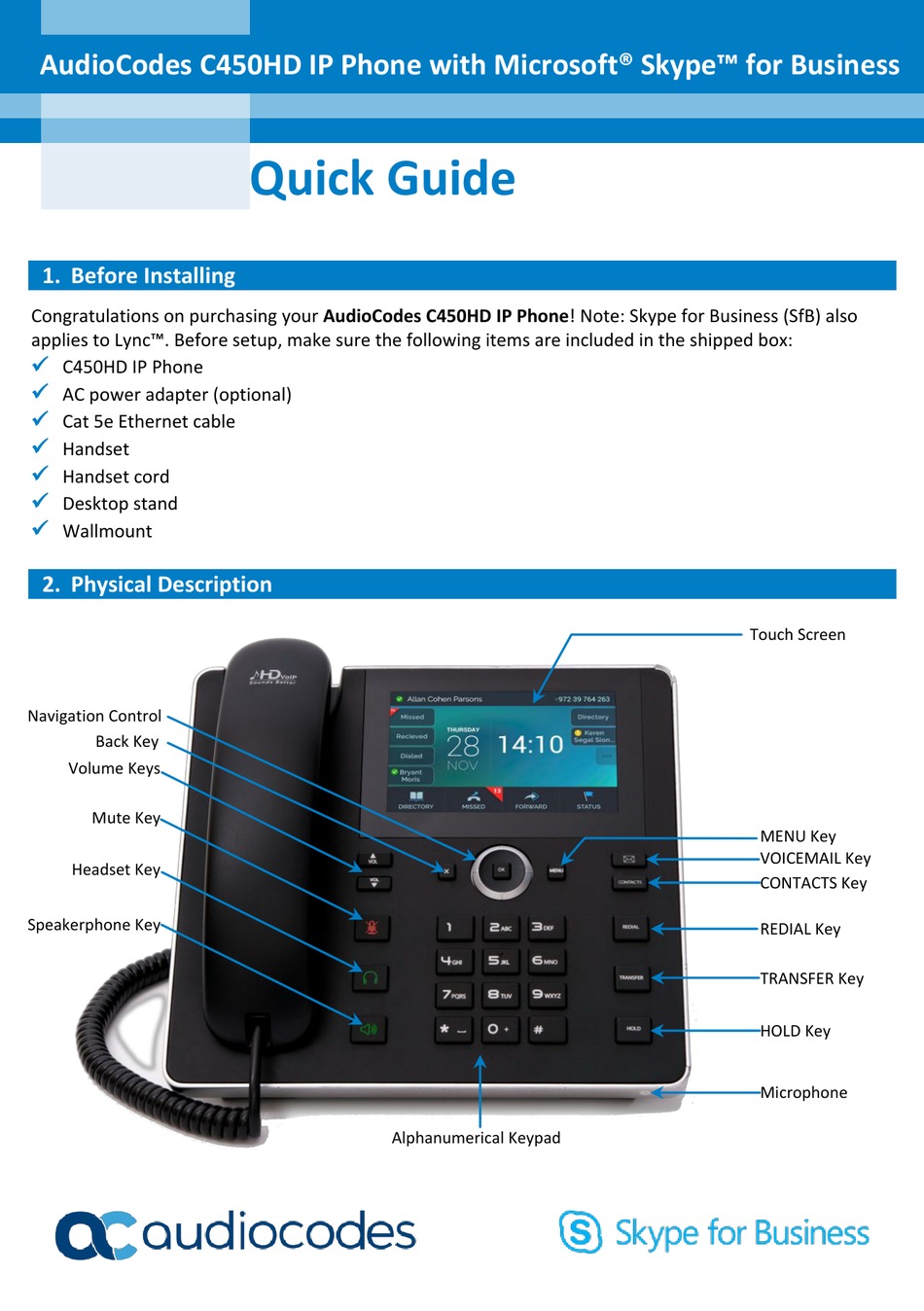

AudioCodes C450HD IP Phone with Microsoft® Skype™ for Business
1. Before Installing
Congratulations on purchasing your AudioCodes C450HD IP Phone! Note: Skype for Business (SfB) also
applies to Lync™. Before setup, make sure the following items are included in the shipped box:
C450HD IP Phone
AC power adapter (optional)
Cat 5e Ethernet cable
Handset
Handset cord
Desktop stand
Wallmount
2. Physical Description
Navigation Control
Back Key
Volume Keys
Mute Key
Headset Key
Speakerphone Key
Quick Guide
Alphanumerical Keypad
Touch Screen
MENU Key
VOICEMAIL Key
CONTACTS Key
REDIAL Key
TRANSFER Key
HOLD Key
Microphone

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C450HD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AudioCodes C450HD

Summary of Contents for AudioCodes C450HD

  • Page 1 AudioCodes C450HD IP Phone with Microsoft® Skype™ for Business Quick Guide 1. Before Installing Congratulations on purchasing your AudioCodes C450HD IP Phone! Note: Skype for Business (SfB) also applies to Lync™. Before setup, make sure the following items are included in the shipped box: ...

  • Page 2: Cabling The Phone

    3. Cabling the Phone Warning: Prior to connecting power, refer to the Compliancy and Regulatory Information document at https://www.audiocodes.com/library/technical-documents.  To cable the phone: [Refer to the illustration below] Connect the short, straight end of the phone cord to the handset and the longer straight end of the cord to the handset jack on the phone.
  • Page 3 4. Signing in  To sign into the phonevia the SfB client when using BtoE: See the C450HD IP Phone User's Manual.  To sign in with phone number and PIN (default method): Touch the SIGN IN menu (in the phone's idle screen).

  • Page 4: Changing Your Presence Status

    5. Changing your Presence Status  To change your presence: Touch the STATUS menu, Presence then touch the presence option you need, and then touch the SELECT menu.  To set the SfBserver to automatically update your presence: Touch the STATUS menu and navigate to and select Reset. 6.
  • Page 5 8. Enabling / Disabling Wi-Fi Capabilities Setting Wi-Fi to On provides the following options in the phone’s Settings >Wi-Fi menu:  On/Off option – to enable / disable Wi-Fi  Connected Network if already connected  List of all available networks ...

  • Page 6: Supported Authentication Methods

    9. Configuring Wi-Fi Network Parameters Users can configure a new Wi-Fi connection using one of two options:  By choosing one of the available networks from the list of available connections provided -or-  By setting another network ‘manually’ 10. Supported Authentication Methods Following are the authentication methods supported: ...

  • Page 7: Configuring Bluetooth

    11. Status The Device Status>Wi-Fi screen provides the following basic information:  Network name  Authentication method Note:  An icon indicating Wi-Fi signal strength is also displayed, on the screen’s upper bar. Touch the icon for the Wi-Fi Network Info screen to open. ...
  • Page 8 In the Administration screen, select the Bluetooth Settings option. In the Bluetooth Settings screen that opens, select the Bluetooth Scan option. View the indication that the system has started to automatically ‘scan’ if there are devices that are NOT PAIRED. Wait for the scan to finish.
  • Page 9 Select one of the Bluetooth devices listed, let it enter ‘pair mode’ and then click the Pair softkey; once paired successfully, click the Connect softkey to connect the remote device. Note: The system does not start scanning automatically if there are PAIRED devices in the list; to scan ‘manually’, press the Scan key in the uppermost right corner of the screen.
  • Page 10  We, Audiocodes Ltd., 1 Hayarden St Airport City Lod Israel, declare under our sole responsibility that the C450 IP phone complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: •...

  • Page 11: Notice Information

    Information contained in this document is believed to be accurate and reliable at the time of printing. However, due to ongoing product improvements and revisions, AudioCodes cannot guarantee accuracy of printed material after the Date Published nor can it accept responsibility for errors or omissions. Updates to this document can be downloaded from https://www.audiocodes.com/library/technical-documents.
