Installation Flow for an IRF

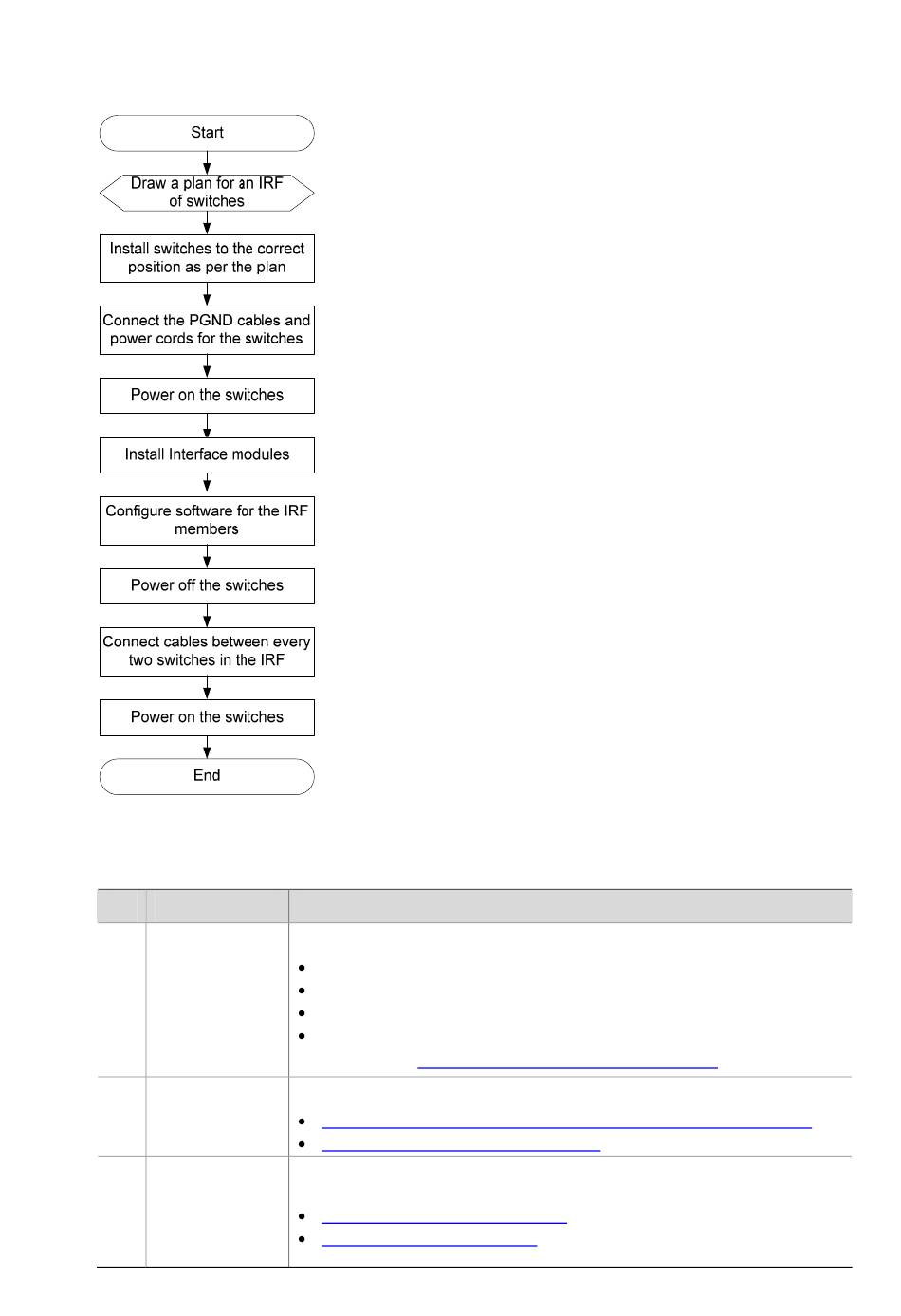

Figure 3-24 Installation flow for an IRF
Table 3-4 Description of the installation flow for an IRF of switches
No Task
Draw a plan for
an IRF with
1
switches
Install the IRF
2 members to the
correct position
Connect
grounding
3 cables and
power cords for
the switches
Take the following into consideration:
Number of IRF members and the bandwidth
Interface modules and cables
Physical connection mode( daisy chain connection or ring connection)
Cable connection
For details, see Drawing a Plan for an IRF with
For detailed installation procedures, see:
Installing the Switch into a 19-Inch Rack Using Mounting
Mounting the Switch on a
For details, see:
Connecting the Grounding Cable
Connecting the Power Cords
3-18
Remarks
Switches.
Workbench.
Brackets.
