Switch 4210G NT 24-Port

Front Panel

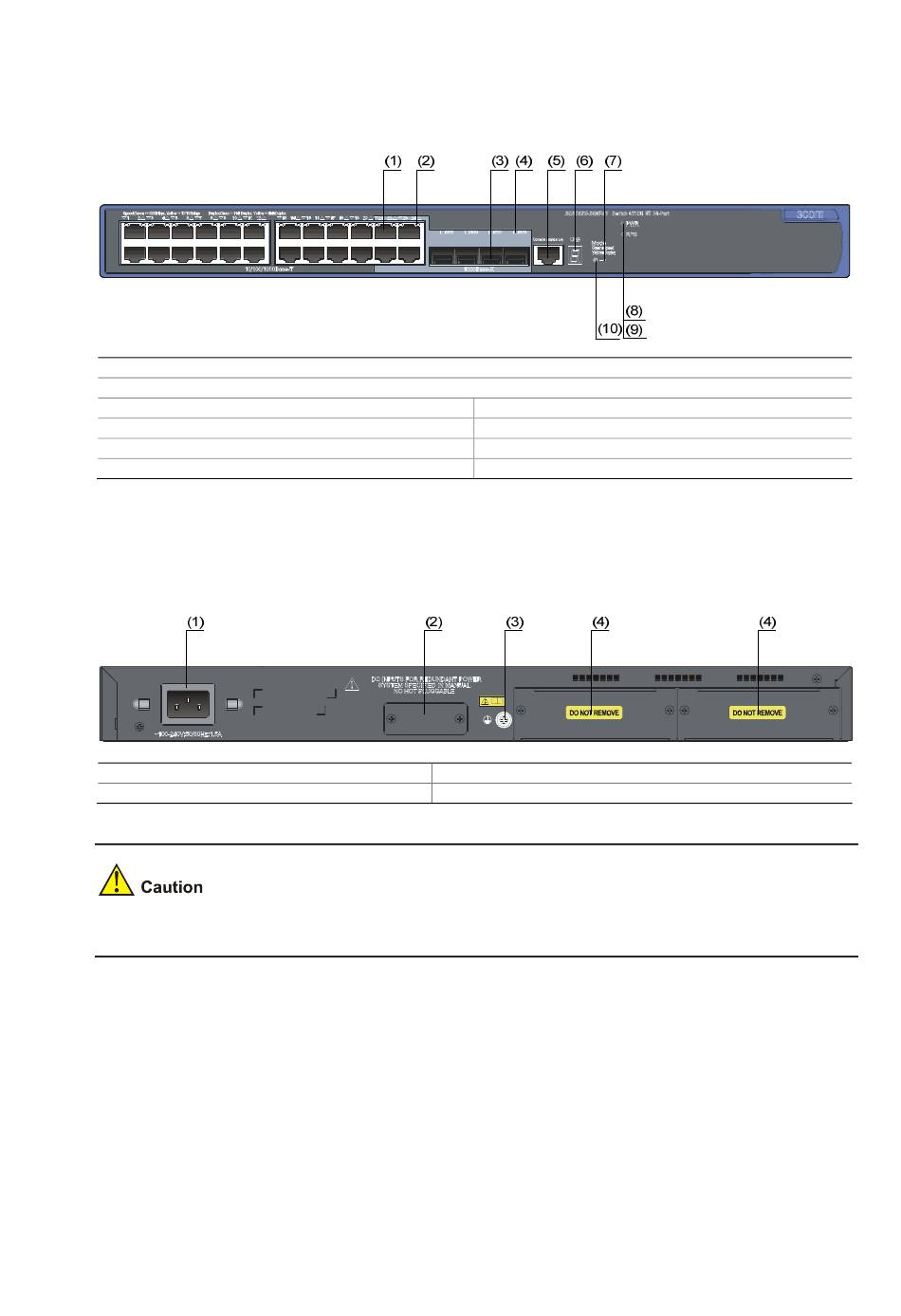

Figure 1-9 Front panel of the Switch 4210G NT 24-Port Ethernet switch
(1) 10/100/1000 Base-T auto-sensing Ethernet port
(2) 10/100/1000 Base-T auto-sensing Ethernet port status LED
(3) 1000 Base-X SFP port
(5) Console port
(7) Port mode LED (Mode)
(9) RPS status LED (RPS)
Rear Panel
Figure 1-10 Rear panel of the Switch 4210G NT 24-Port Ethernet switch
(1) AC power input
(3) Grounding screw
The Switch 4210G NT 24-Port does not support any interface modules.
(4) 1000Base-X SFP port status LED
(6) Seven-segment LED
(8) System status LED (PWR)
(10) Port status LED mode switching button
(2) RPS power input (shipped with a protective cover)
(4) "DO NOT REMOVE" label
1-7
