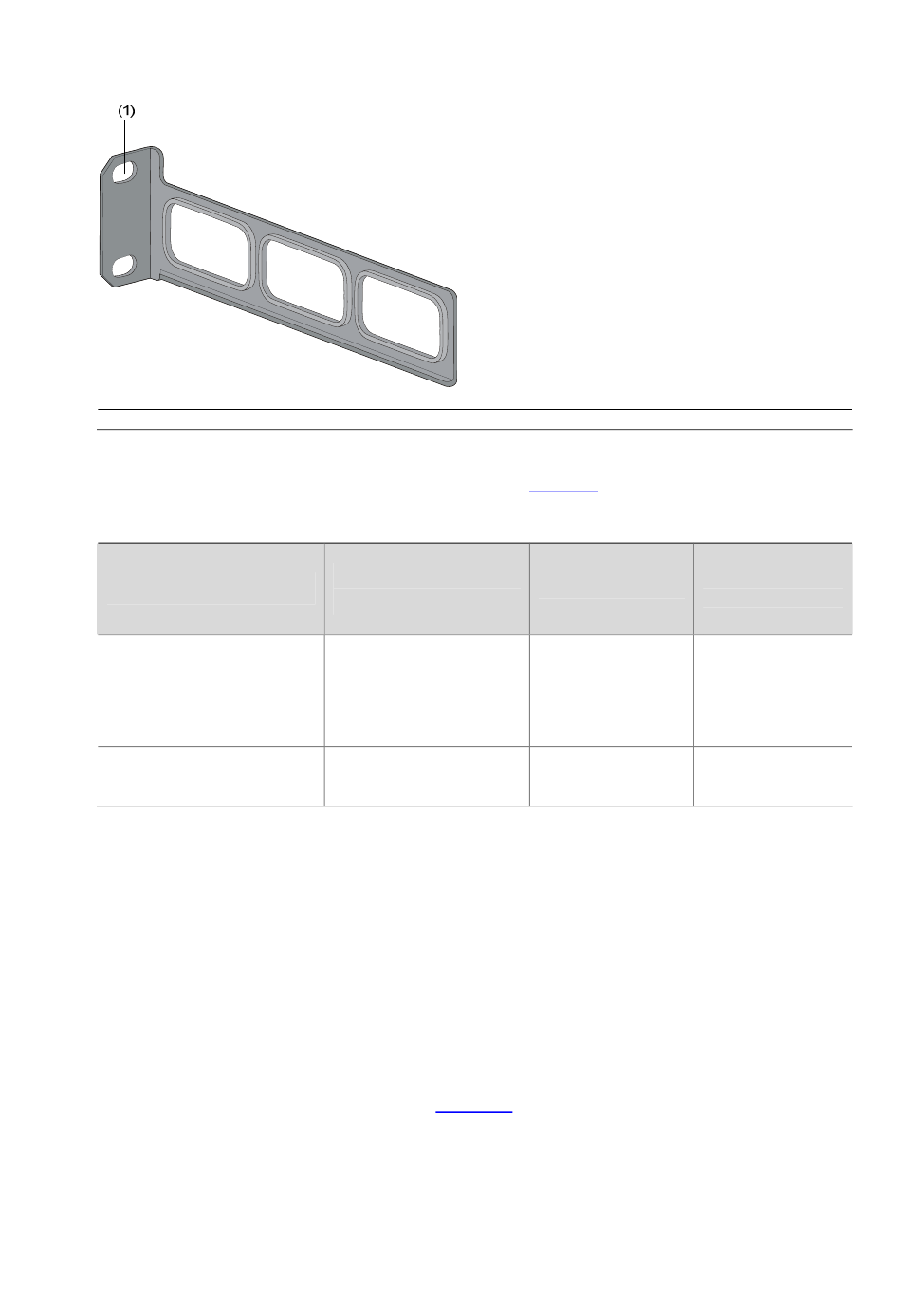

Figure 3-3 Appearance of a rear mounting bracket
(1) Screw hole used to fix the mounting bracket to the cabinet (Use one M6 screw)
For the selection of front and rear mounting brackets, see
Table 3-2 Selection of mounting bracket for Switch 4210G
Model
Switch 4210G 24-Port
Switch 4210G 48-Port
Switch 4210G NT 24-Port
Switch 4210G NT 48-Port
Switch 4210G PWR 24-Port
Switch 4210G PWR 48-Port

Use Front Mounting Brackets to Install a Switch

Only the Switch 4210G 24-Port, Switch 4210G 48-Port, Switch 4210G NT 24-Port, and Switch 4210G
NT 48-Port support installation using front mounting brackets.
Follow these steps to mount a switch into a 19-inch standard cabinet:
Step1 Wear an ESD-preventive wrist strap and ensure a good skin contact and grounding.
Step2 Check the grounding and stability of the cabinet.
Step3 Take out the screws which are packed together with the front mounting brackets, and fix one end of
mounting brackets to the switch, as shown in
Physical dimensions
(H × W × D)
43.6 × 440 × 300 mm
(1.72 × 17.32 × 11.81 in.)
43.6 × 440 × 420 mm
(1.72 × 17.32 × 16.54 in.)
Figure 3-4.
3-3
Table 3-2.
Configuration
type of front
mounting bracket
Standard
Standard
Configuration
type of rear
mounting
bracket
—
Standard
