Switch 4210G 48-Port

Front Panel

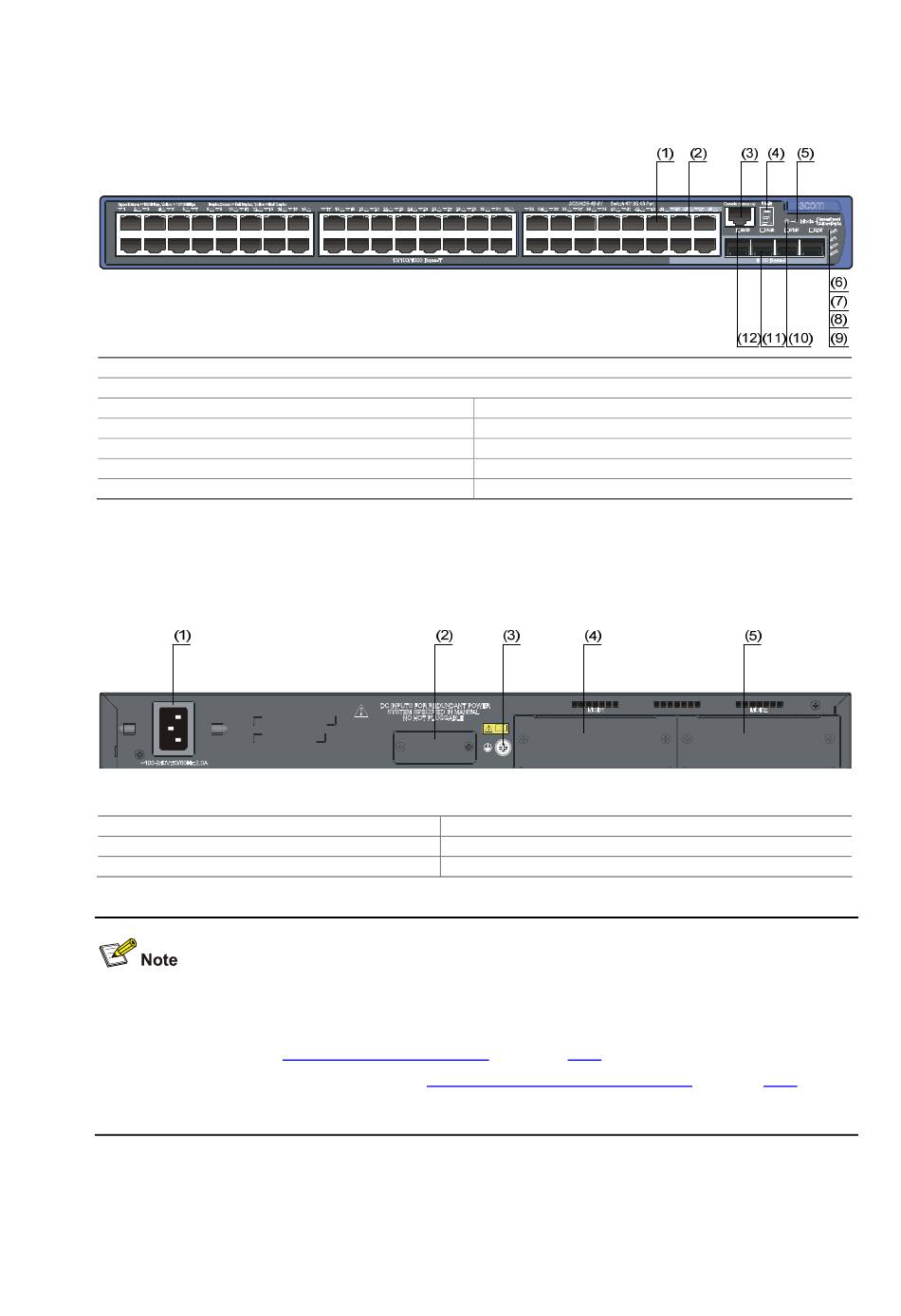

Figure 1-3 Front panel of the Switch 4210G 48-Port Ethernet switch
(1) 10/100/1000 Base-T auto-sensing Ethernet port
(2) 10/100/1000 Base-T auto-sensing Ethernet port status LED
(3) Console port
(5) Port mode LED (Mode)
(7) RPS status LED (RPS)
(9) Interface module 2 status LED (MOD2)
(11) 1000Base-X SFP port
Rear Panel
Figure 1-4 Rear panel of the Switch 4210G 48-Port Ethernet switch
(1) AC power input
(3) Grounding screw
(5) Interface module slot 2 (MOD2)
The Switch 4210G 48-Port provides two interface module slots on its rear panel. Each slot is installed
with a filler panel when the switch is shipped. You can select one or two interface modules for your
switch as needed. See
supported by the Switch 4210G, and see
installation of interface modules.
(2) RPS power input (shipped with a protective cover)
(4) Interface module slot 1 (MOD1)
Optional Interface Modules
Connecting the RPS Power Cord
1-4
(4) Seven-segment LED
(6) System status LED (PWR)
(8) Interface module 1 status LED (MOD1)
(10) Port status LED mode switching button
(12) 1000Base-X SFP port status LED
on page 1-15 for the interface module models
on page 3-14 for the
