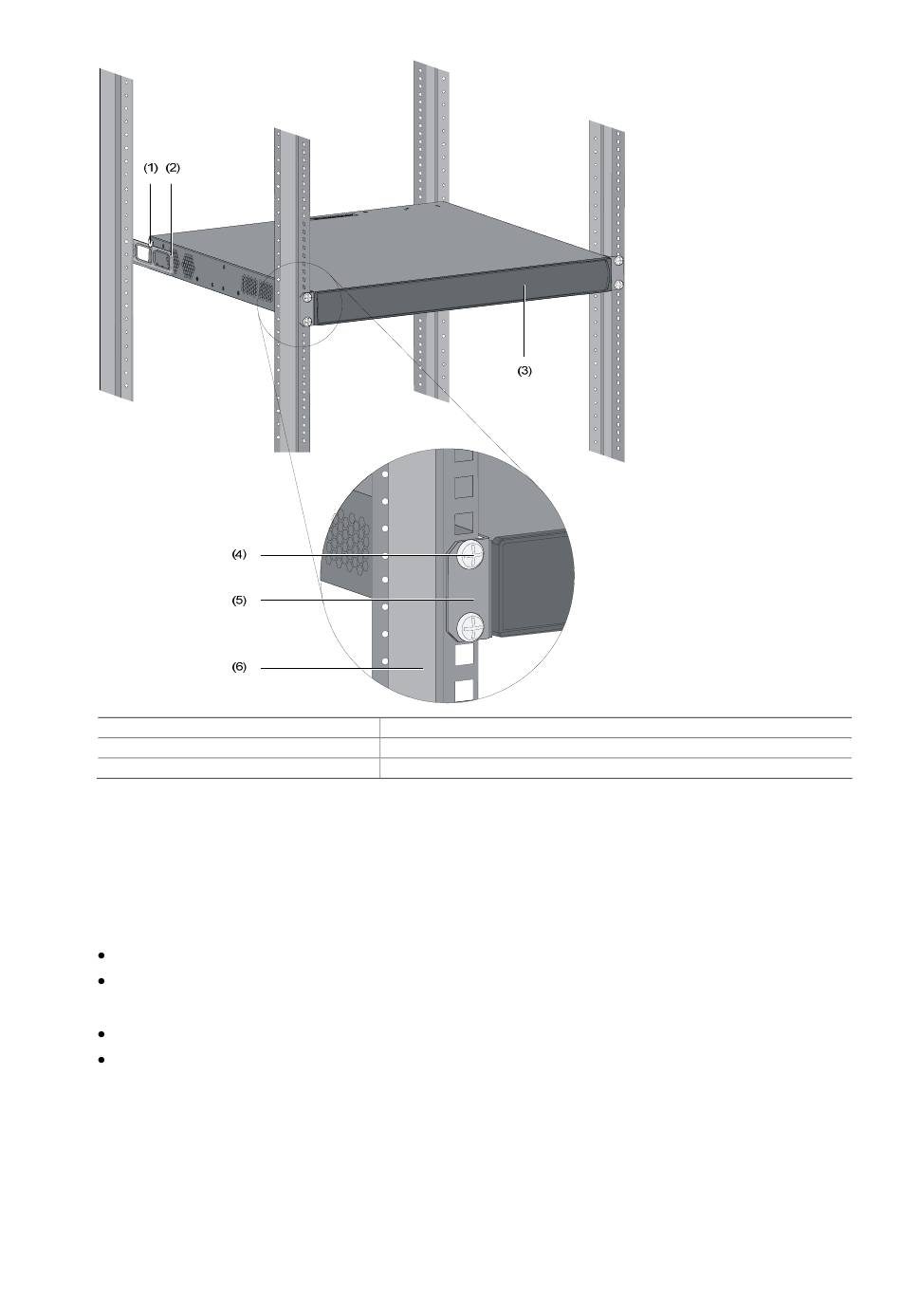

Figure 3-10 Effect diagram of front and rear mounting bracket installation (2)
(1) Load-bearing screw
(3) Front panel
(5) Front mounting bracket
Mounting the Switch on a Workbench
In many cases, standard 19-inch racks are not available. Therefore, switches are often placed on clean
workbenches. To place your switch on a workbench, you simply need to:
Make sure that the workbench is clean, flat, and sturdy.
Make sure that the environment is well ventilated and allows 10 cm (3.94 in.) of space around the
chassis for heat dissipation.
Do not place heavy objects on your switch.
The vertical distance between two switches must be at least 1.5 cm (0.59 in).
(2) Rear mounting bracket
(4) Screw used to fix front mounting brackets to front brackets
(6) Front square-holed post
