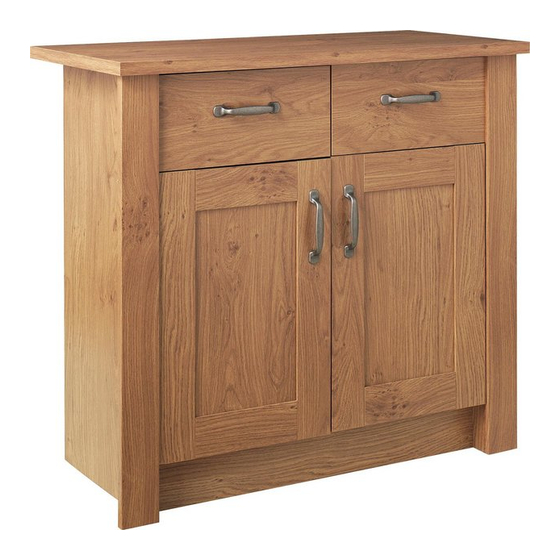

Ohio - 2+2 Sideboard
Assembly Instructions -
Dimensions
Width - 85.5cm
Depth - 39.5cm
Height - 78cm
Important -
Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
Please keep for future reference
322/3468
MADE IN
BRITAIN
Issue 1 - 16/10/14
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Argos Home Ohio 322/3468
Summary of Contents for Argos Home Ohio 322/3468
- Page 1 Ohio - 2+2 Sideboard Assembly Instructions - 322/3468 Please keep for future reference Dimensions Width - 85.5cm Depth - 39.5cm MADE IN Height - 78cm BRITAIN Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800 Issue 1 - 16/10/14...
- Page 2 Safety and Care Advice Important - Please read these instructions fully before starting assembly • Warning: This unit weighs • Make sure you have enough • We do not approximately 25kgs. space to layout the parts before recommend the Please lift with care. starting.
- Page 3 If you have damaged or missing components, call the Components - Panels Customer Helpline: 08456 400800 quoting the reference numbers below Please check you have all the panels listed below Base Divider (D1800A) (D1803A) (D1804B) (853 x 395mm) (691 x 350mm) (162 x 349mm) Plinth (D1805A)
- Page 4 If you have damaged or missing components, call the Components - Fittings Customer Helpline: 08456 400800 quoting the reference numbers below Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.
- Page 5 If you have damaged or missing components, call the Assembly Instructions Customer Helpline: 08456 400800 quoting the reference numbers below Step 1 Prepare the drawer fronts Screw 2 metal dowels into the holes shown on the back of the left drawer front and the right drawer front...
- Page 6 Assembly Instructions Step 4 Fit the drawer base Slide the drawer base down the grooves in the drawer sides and down into the groove in the drawer front 12 13 Step 5 Fit the drawer back Fit the drawer back between the drawer sides Make sure that the...
- Page 7 Assembly Instructions Step 8 Fit runners to the Runners must be drawers pushed up against the drawer front Turn the drawer assemblies over. Fit the runner to the bottom edge of the left drawer side , as shown, making sure that it is pushed up against the back of the drawer front...
- Page 8 Assembly Instructions Step 10 Prepare the left side Finished Insert 3 large locking front edge nuts into the left side Note: The arrow on the locking nuts must point towards the holes in the edge of the panel. Step 11 Join the left side to the left fascia panel Push the left side...
- Page 9 Assembly Instructions Step 12 Prepare the right side Insert 3 large locking nuts into the right side Finished front edge Step 13 Join the right side to the right fascia panel Push the right side down onto the right fascia panel Dowel this end Right fascia...
- Page 10 Assembly Instructions Step 14 screw screw screw Finish preparing the left side Fit a runner the left side The 1st screw uses the 1st hole in from the front of the runner. The 2nd and 3rd screws use the holes that line up with the other panel holes.
- Page 11 Assembly Instructions Step 15 screw screw screw Finish preparing the right side Fit a runner the right side The 1st screw uses the 1st hole in from the front of the runner. The 2nd and 3rd screws use the holes that line up with the other panel holes.
- Page 12 Assembly Instructions Step 17 Fit the base Push the base onto the right side Use a screwdriver to tighten the 2 large locking nuts fitted to p l a the base i n c h i p a r d s u r f a c Finished...
- Page 13 Assembly Instructions Step 20 Fit the left side Push the left side onto the assembly. Use a screwdriver to tighten the 3 large locking nuts fitted to the base and plinth Step 21 Prepare the top Screw 6 metal dowels into the top Finished front edge...
- Page 14 Assembly Instructions Step 22 Prepare the divider screw screw screw Fit a runner the divider The 1st screw uses the 1st hole in from the front of the runner. The 2nd and 3rd screws Finished Finished use the holes that line front edge front edge up with the other panel...
- Page 15 Assembly Instructions Step 23 Join the top and the divider Push the divider onto the top Use a screwdriver to tighten the 2 large locking nuts fitted to Finished the divider front edge Warning: The Step 24 unit is heavy. Lift with care.
- Page 16 Assembly Instructions Step 25 The measurement from top corner X to bottom corner X must be equal to the measurement from top corner Y to bottom corner Y Fit the back Lay the unit back down for this step. Square up the unit by making sure that measurement x to x equals y to y.
- Page 17 Assembly Instructions Step 27 Example Fit the overbalance protector Attach the Attach the strap to the wall strap to the unit To prevent possible overbalancing we Wall fixing Strap recommend that this unit (not supplied) Strap Washer Washer is secured to a suitable Washer wall by use of the Screw...
- Page 18 Assembly Instructions Step 28 Note: The left drawer front has a small identification hole. Fit the drawers Please refer back to Step 1. Slide the wheels of the runners fitted to the drawers, over the wheels of the runners fitted to the side panels and push the drawers into position.
- Page 19 Assembly Instructions Step 30 Fit the shelf Lower the shelf down onto the shelf studs Step 31 Prepare the 2 doors Push fit 2 hinges into each of the 2 doors Secure each hinge with 2 screws Note: Before securing with the screws, make sure that the hinges are positioned at 90 degrees...
- Page 20 Assembly Instructions Step 32 IMPORTANT Carefully choose which 2 holes Drill 2 handle holes in each of the doors you need to drill in each door Important: Please follow these instructions ONLY drill these carefully. 2 holes in 1 door Lay the 2 doors down onto a smooth surface.
- Page 21 Assembly Instructions Step 33 Fit doors and handles Note: The easiest way to attach each door to fit the top hinge first, then align and fit the other hinges. Push the hinge onto the front part of the hinge plate The recess at the bottom of screw B goes into the slot in the hinge plate.
- Page 22 Assembly Instructions Step 34 Adjust the doors if needed Before adjusting the doors, use a spirit level to check the base (or top) of the unit is level, front-to-back and side-to-side in the 3 positions shown. Use suitable packing pieces (not supplied) to make the unit level BEFORE making any adjustment to the hinges,...
- Page 23 Assembly Instructions Step 35 Assembly is complete Warning: The unit is heavy. Lift with care. If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800 and quote the reference numbers on the component pages. Argos Ltd, 489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW...
