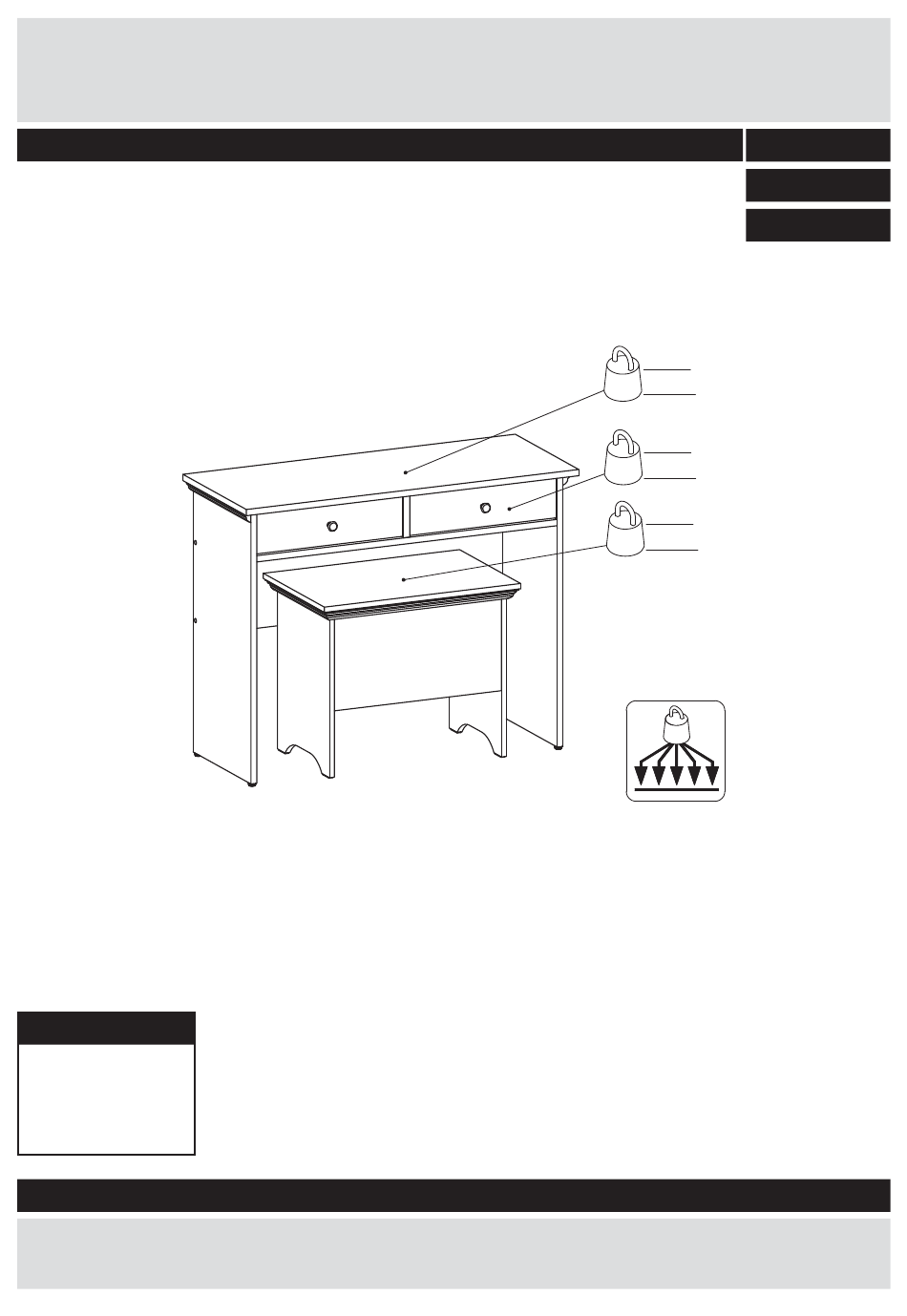

Canterbury DRESSING TABLE
Assembly Instructions
Dimensions
Width - 101.6cm
Depth - 42.5cm
Height - 80.8cm
Important
- Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline:
Argos = 0345 6400800
- Please keep for future reference
483/2418
496/3923
501/8798
30
kg
66
lbs
3
kg
7
lbs
110
kg
242
lbs
max.
71933 Version C Date 14/06/2016

Advertisement

loading
Need help?

Need help?

Do you have a question about the Canterbury Dressing Table 483/2418 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Argos Home Canterbury Dressing Table 483/2418

Summary of Contents for Argos Home Canterbury Dressing Table 483/2418

  • Page 1 Canterbury DRESSING TABLE Assembly Instructions 483/2418 - Please keep for future reference 496/3923 501/8798 max. Dimensions Width - 101.6cm Depth - 42.5cm Height - 80.8cm Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: Argos = 0345 6400800 71933 Version C Date 14/06/2016...
  • Page 2 Safety and Care Advice Important – Please read these instructions fully before starting assembly • Check you have all the • During assembly, do not stand • We do not components and tools listed on or put weight on the product, recommend the use the following pages.
  • Page 3 Components - Panels If you have damaged or missing components, call the Customer Helpline: Argos = 0345 6400800 Please check you have all the panels listed below S Back panel (91.8 x 29.5 cm) FA Left side panel 78.2 x 38cm UC Shelf (91.8 x 37.9 cm) GD Divider panel H Right side panel (78.2 x 38 cm)
  • Page 4 Components - Fittings Chair Box 2 of 2 Please check you have all the fi ttings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fi ttings may be supplied than are required. 22601 20203 Dowel (ø5 x 30 mm) x22...
  • Page 5 Assembly Instructions Chair Box 2 of 2 Step 1 Fittings you will need for this step: Insert dowels and cam Dowel # 20203 X12 # 31687 X12 Insert dowels 20203 into outer holes on the ends of side panel FB and front / back panel SA .
  • Page 6 Assembly Instructions Chair Step 3 Fittings you will need for this step: Gathering profi les Wedges # 33204 X4 Insert wedges 33204 into slots on the angle ends of profi le side x2 G and pro- fi le front/back x2 H . Use a hammer.
  • Page 7 Assembly Instructions Chair Step 5 Fittings you will need for this step: Attaching panels Glue # 22601 X1 Add glue into holes and then push the profi le down as it reaches the top panel LC . Add one small drop of glue per hole.
  • Page 8 Assembly Instructions Chair Step 7 Attaching top panel Place the side and front/ back down to the top panel LC . Make sure the fi nished edge is facing toward the front and that the unfi nished side is facing toward the bottom of the case.
  • Page 9 Components - Fittings Table Box 1 of 2 Please check you have all the fi ttings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fi ttings may be supplied than are required. 20203 20228 22005...
  • Page 10 Assembly Instructions Table Box 1 of 2 Step 9 Fittings you will need for this step: Insert leveler Bushing Leveller # 22005 X4 # 62403 X4 Insert bushing 22005 into the ends of right side pan- el H and left side panel FA .
  • Page 11 Assembly Instructions Table Step 10 Fittings you will need for this step: Insert dowels and cam Dowel Large cam # 20203 X4 # 31666 X4 Insert dowels 20203 into outer holes on the ends of left side panel FA and right side panel H .
  • Page 12 Assembly Instructions Table Step 11 Fittings you will need for this step: Attaching drawer runners Flat head screw Drawer runner Extend drawer glide # 26020 X4 # 41404 X2 41404 . Place fl at head- screw 26020 through the correct holes at the back of the drawer slide, into the holes on the left side- panel and right side panel...
  • Page 13 Assembly Instructions Table Step 12 Fittings you will need for this step: Insert cam bolts Cam bolt #31513 X4 Insert cam bolts 31513 into left side panel FA and right side panel H . Cam bolts must be screwed down fl ush. Step 13 Fittings you will need for this step: Insert dowels and cam...
  • Page 14 Assembly Instructions Table Step 14 Fittings you will need for this step: Flat head screw Attaching drawer runner Drawer runner # 26020 X4 # 41404 X2 Extend drawer glide 41404 . Place fl at head- screw 26020 through the correct holes at the back of the drawer slide, into the holes on divider panel GD .
  • Page 15 Assembly Instructions Table Step 15 Fittings you will need for this step: Insert cam bolts Cam bolt # 31513 X6 Insert cam bolts 31513 into top panel LB . Cam bolts must be screwed down fl ush. Step 16 Attaching divider panel Press down divider panel GD towards the top panel LB .
  • Page 16 Assembly Instructions Table Step 17 Fittings you will need for this step: Attaching panels End bolt together # 31561 X4 Place back panel S and shelf UC between side panel H + FA . Make sure the unfi nished face of S is facing backwards.
  • Page 17 Assembly Instructions Table Step 18 Fittings you will need for this step: Attaching side profi lest Flat head screw # 26033 X4 Inset fl at head screw 26033 into holes of side panel FA + H and attach side profi le A + B . Finished end must be facing forward.
  • Page 18 Assembly Instructions Table Step 19 Fittings you will need for this step: Attaching top panel Connector Bolt Allen key # 25610 X2 # 97642 X1 Place the cam bolts from top panel LB into the end holes on side panel FA + H .
  • Page 19 Assembly Instructions Table Step 20 Fittings you will need for this step: Attaching drawers Small cam Cam bolt # 31631 X4 # 31513 X4 Place small cam 31631 into the holes in left and right drawer side D + E . Arrow facing the edge of the panel.
  • Page 20 Assembly Instructions Table Step 22 Attaching drawer bottom Press the drawer bottom C smoothly in the grooves (fi nished side up). Step 23 Attaching drawer front Attach the drawer front EL by placing dowels and cam bolt in the correct holes. See the detail drawing.
  • Page 21 Assembly Instructions Table Step 24 Fittings you will need for this step: Attaching the drawer Handle Machine screw handle # 81040 X2 # 26232 X2 Attach the handle in front of the drawer front EL. Use machine screw 26232 to tighten the handle.
  • Page 22 Assembly Instructions Table Step 26 Fittings you will need for this step: Attaching the drawers Machine screw # 26214 X4 Fix the rail into the slot of the drawer. Use machine screw 26214 (inside the drawer) and tight up and fi x draw- er to the rail.
