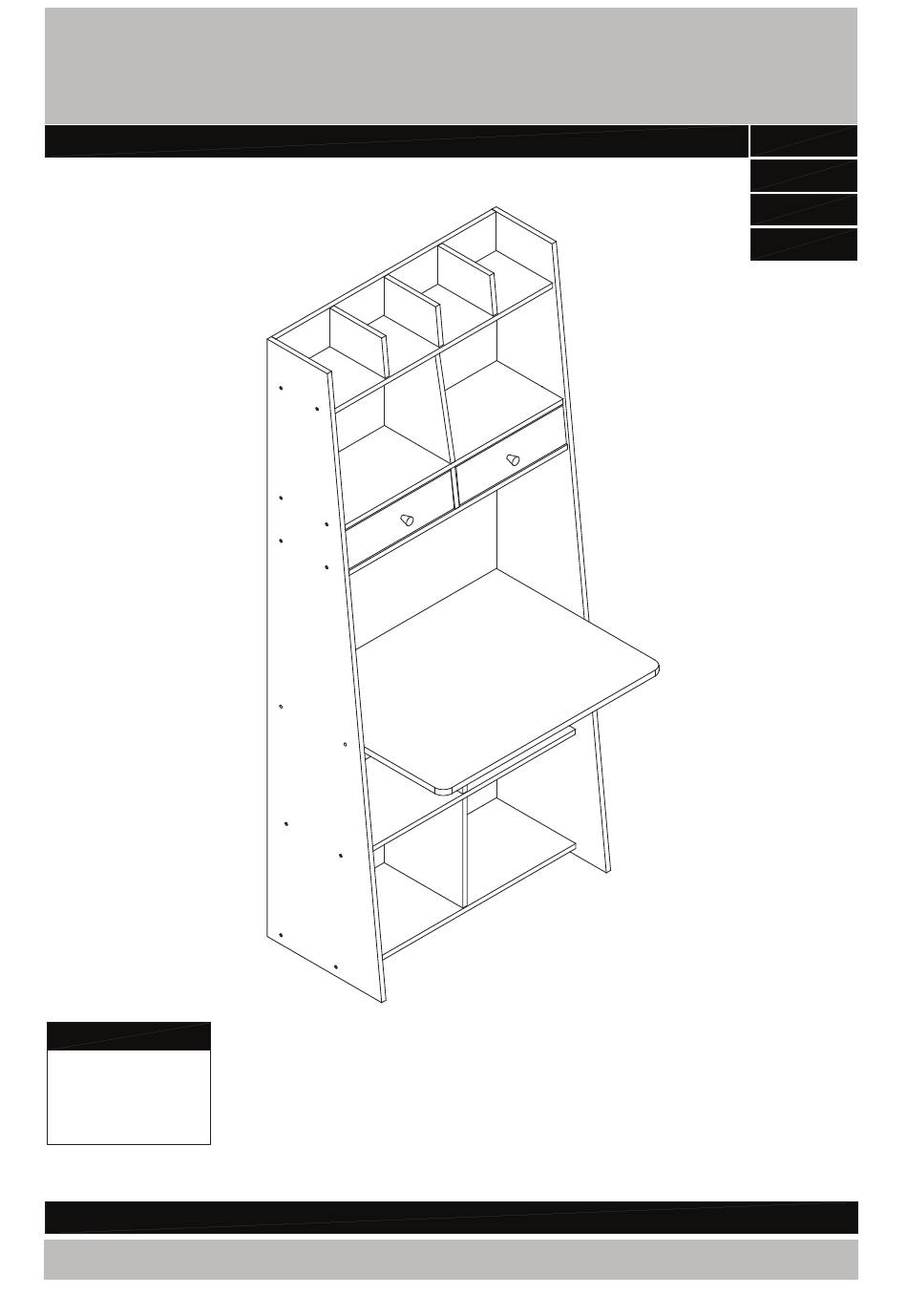

Phoenix Wall Desk
Assembly lnstructions - Please keep for future reference
Dimensions
Width - 80cm
Depth - 60 cm
Height -180.5 cm
Important - Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 0345 6400 800
455/5991
497/4479
498/1307
460/6613
Issue 1-13-10-15
Advertisement
Related Manuals for Argos Home Phoenix Wall Desk 455/5991
Summary of Contents for Argos Home Phoenix Wall Desk 455/5991
- Page 1 Phoenix Wall Desk Assembly lnstructions - Please keep for future reference 455/5991 497/4479 498/1307 460/6613 Dimensions Width - 80cm Depth - 60 cm Height -180.5 cm Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 0345 6400 800 Issue 1-13-10-15...
- Page 2 Safety and Care Advice Check you have all the Assemble the item as close We do not recommend the components and tools listed on to its final position (in the same pages 2 and 3. room) as possible. use of power Remove all fittings from the drill/drivers for Assemble on a soft level...
-
Page 3: Components - Parts
Components - Parts lf you have damaged or missing components. call the Customer Helpline: 0345 6400 800 Lower Divider x 2 Lower Shelf x 1 Desk Top x 1 (33x27.4x1.5cm) (77x27.5x1.5cm) (77x60x1.8cm) Upper Divider Base Panel x 1 Top Horizontal Rail X 1 (Left And Right) x 2 (77x29.3x1.5cm) (77x11.7x1.5cm) - Page 4 Components - Parts lf you have damaged or missing components. call the Customer Helpline: 0345 6400 800 Side Panel (Left) x 1 (180.6x40x1.5cm) 14 Upper Divider (Middle) x 1 15 Drawer Side (Right) x 2 Drawer Side (Left) x 2 (21.3x9x1.2cm) (19.3x11.6x1.5cm) (21.3x9x1.2cm)
-
Page 5: Tools Required
Components - Fittings 0345 6400 800 Short 30mm wooden dowel x 46 Metal dowel x 14 Large locking nut x 6 35mm screw x 49 Plastic drawer runner x 4 10mm screw x 8 Crosshead nut x 4 53mm screw x 4 Allen Key x 1 Plastic trim x 1 Small locking nut x 8... - Page 6 Assembly Instructions Preparing panels Place desk top flat onto the floor with the fixing holes facing up. Insert short wooden dowels desk top into shown. Screw metal dowels desk top into as shown. Note: Screw metal dowels as far as shown. Do not overtighten.
- Page 7 Assembly Instructions Preparing panels With help, locate lower divider to the underside of desk top as shown . Insert large locking nuts into the holes in lower divider Turn locking nuts clockwise to secure. Preparing panels Place lower shelf flat onto the floor with the fixing holes facing up.
- Page 8 Assembly Instructions Preparing panels With help, assemble lower shelf to lower divider using screws Preparing panels With help, assemble base panel to the remaining lower divider using screws Note: Ensure the groove along one edge of base panel is on the same side as lower divider Insert short wooden dowels the ends of base...
- Page 9 Assembly Instructions Step 7 Preparing panels With help, assemble lower divider and base panel assembly , to the lower shelf as shown . Insert large locking nuts into one side of lower divider Turn locking nuts clockwise to secure. Groove Groove Step 8 Preparing panels...
- Page 10 Assembly Instructions Step 9 Preparing panels Insert short wooden dowels top horizontal rail into as shown. Step 10 Preparing panels With help, assemble both upper dividers (left and right) ,to top horizontal rail using screws...
- Page 11 Assembly Instructions Step 11 Preparing panels Insert short wooden dowels top shelf into the ends of as shown. Step 12 Preparing panels With help, assemble top shelf to upper dividers (left and right) and top horizontal rail using screws as shown . Note: Ensure the groove along one edge of top shelf is facing down as shown.
- Page 12 Assembly Instructions Step 13 Preparing panels Insert short wooden dowels upper into the ends of shelf as shown. Step 14 Fitting drawer runners With help, assemble plastic drawer runners to both sides of drawer divider using screws Insert short wooden dowels into the side of drawer divider as shown.
- Page 13 Assembly Instructions Step 15 Preparing panels With help, assemble upper shelf to drawer divider using screws Step 16 Preparing panels Insert short wooden dowels drawer into each end of shelf Screw metal dowels drawer shelf into shown. Note: Screw metal dowels as far as shown.
- Page 14 Assembly Instructions Step 17 Preparing panels Insert long wooden dowels middle divider into shown. Step 18 Preparing panels With help, assemble drawer shelf to middle divider using screws...
- Page 15 Assembly Instructions Step 19 Preparing panels With help, locate the drawer divider and upper shelf assembly, onto drawer shelf Insert large locking nuts into the holes in one side of drawer divider Turn locking nuts clockwise to secure. Step 20 Preparing panels With help, assemble middle divider...
- Page 16 Assembly Instructions Step 21 Preparing panels With help, assemble plastic drawer runners to left and right side panels using screws as shown . Step 22 Assembling side panel Carefully align all sub-assemblies together as shown. With help, locate left side panel into position and secure using fixings...
- Page 17 Assembly Instructions Step 23 Fitting back panels With help, carefully turn the wall desk over onto it's side as shown. Warning: The wall is heavy. Lift with desk care. With help, slide lower back panels , middle back panel and upper back panel into position as shown.
- Page 18 Assembly Instructions Step 25 Fitting divider Locate upper divider into the central position at the top of the unit and secure from behind using screws...
- Page 19 Assembly Instructions Step 26 Securing back panels With help , stand the wall desk upright. Warning: The desk is heavy. Lift with care . Secure back panels using screws shown. Ensure the desk is straight and square. Fit plastic brackets around the edges of all back panels as shown.
- Page 20 Assembly Instructions Step 27 Fixing to wall It is recommended that the wall desk is fixed to the wall to ensure stability. Assemble wall straps to the back of horizontal rail using screws With help, move the unit to the desired location. Mark the fixing hole locations on the wall and remove the unit.
- Page 21 Assembly Instructions Step 28 Assembling drawers Assemble drawer back in between drawer sides using screws Note: Ensure the grooves are correctly aligned at the bottom as shown. grooves to align Screw metal dowels drawer front into shown. Note: Screw metal dowels as far as shown.
- Page 22 Assembly Instructions Step 29 Locating drawers Locate both drawers into position. Fit plastic drawer stops into the holes on the inside of drawer sides as shown.
- Page 23 Assembly Instructions Step 30 Covering fixing holes Stickers can be used to cover the fixing holes as shown . Stickers can be used to cover the fixing holes as shown . If you need help or have damaged or missing parts, call the Customer Helpline: 0345 6400 800 Home Retail Group.
