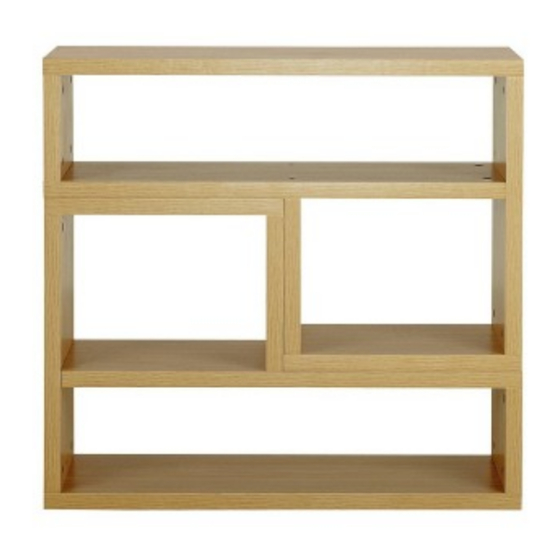

OSCAR BOOKCASE
Assembly lnstructions - Please keep for future reference
Dimensions
Width - 83cm
Depth - 29 cm
Height - 80 cm
Important - Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 0345 6400 800
408/5887
412/1947
413/7728
418/2388
Issue 1-16-04-15
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Argos Home OSCAR 408/5887
Summary of Contents for Argos Home OSCAR 408/5887
- Page 1 OSCAR BOOKCASE Assembly lnstructions - Please keep for future reference 408/5887 412/1947 413/7728 418/2388 Dimensions Width - 83cm Depth - 29 cm Height - 80 cm Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 0345 6400 800 Issue 1-16-04-15...
- Page 2 Safety and Care Advice Check you have all the Assemble the item as close We do not to its final position (in the same recommend the components and tools listed on pages 2 and 3. room) as possible. use of power Remove all fittings from the drill/drivers for Assemble on a soft level...
-
Page 3: Components - Parts
Components - Parts lf you have damaged or missing components. call the Customer Helpline: 0345 6400 800 inside underside Divider x 2 shelf x 2 (28.7x27.6x3cm) (79.9x28.8x3cm) inside inside Side panel (large) x 2 Side panel (small) x 2 (49.3x28.9x3cm) (28.7x18.7x3cm) underside upside... - Page 4 Components - Fittings 0345 6400 800 Wooden dowel x 28 Locking nut x 24 Metal dowel x 24 EVA pad x 8 Sticker x 28 Wall strap x 2 40mm Wood screw x 4 12mm Wood screw x 2 Tools required Phillips screwdriver Ruler/tape measure 100 105 110 115 120 125 130 135 140 145 150...
- Page 5 Assembly Instructions Preparing divider and shelf Place divider and shelf flat onto the floor with the fixing holes facing up. Screw metal dowels into one end of shelf as shown. Note: Screw metal dowels as far as shown. Do not overtighten Insert wood dowels into panels...
- Page 6 Assembly Instructions Preparing side panels Place small side panel and large side panel flat on the floor with fixing holes facing up. Screw metal dowels into large side panel as shown. Note: Screw metal dowels as far as shown. Do not overtighten Insert wood dowels into panels...
- Page 7 Assembly Instructions Preparing top panel and base panel Place top panel base panel flat on the floor with the fixing holes facing up. Screw metal dowels into both panels as shown. Note: Screw metal dowels as far as shown. Do not overtighten. Assembling top panel and base panel Carefully locate top panel...
- Page 8 Assembly Instructions Repeat Steps 1 to 6 to assemble the second shelf unit. : Depending on the configuration of shelves you select, self adhesive EVA pads can be used on the base. : With help, carefully lift the shelves into position. Warning: The shelves are heavy.
- Page 9 Assembly Instructions It is recommended that the unit is fixed to the wall to ensure stability. Assemble wall straps to the back edge of top panel using screws With help, move the unit to the desired location. Mark the fixing hole locations on the wall and remove the unit.
