Ohio - TV Unit
Assembly Instructions -
Dimensions
Width - 120cm
Depth - 39.5cm
Height - 61.5cm
Important -
Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
Please keep for future reference
309/6561
MADE IN
BRITAIN
Issue 1 - 16/10/13

Advertisement

loading
Need help?

Need help?

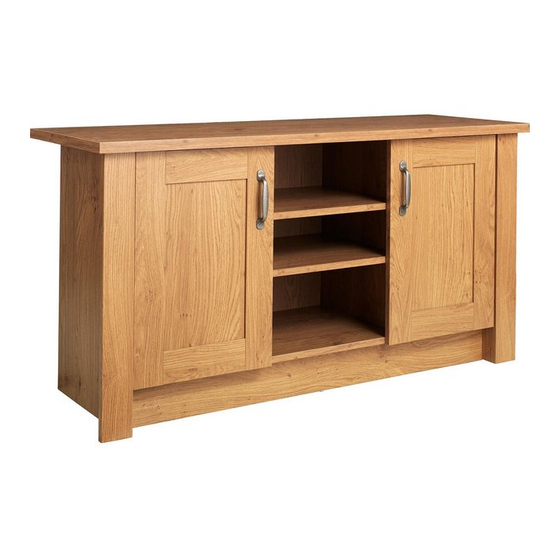

Do you have a question about the Ohio TV Unit 309/6561 and is the answer not in the manual?

Questions and answers

Summary of Contents for Argos Home Ohio TV Unit 309/6561

  • Page 1 Ohio - TV Unit Assembly Instructions - 309/6561 Please keep for future reference Dimensions Width - 120cm Depth - 39.5cm MADE IN Height - 61.5cm BRITAIN Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800 Issue 1 - 16/10/13...
  • Page 2: Care And Maintenance

    Safety and Care Advice Important - Please read these instructions fully before starting assembly • Warning: This unit weighs • Make sure you have enough • We do not approximately 30kgs. space to layout the parts before recommend the Please lift with care. starting.
  • Page 3 If you have damaged or missing components, call the Components - Panels Customer Helpline: 08456 400800 quoting the reference numbers below Please check you have all the panels listed below 2 Left Side Right Side (D1782A) (D1783A) (D1784A) (1200 x 395mm) (590 x 357mm) (590 x 357mm) Base...
  • Page 4 If you have damaged or missing components, call the Components - Fittings Customer Helpline: 08456 400800 quoting the reference numbers below Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.
  • Page 5 If you have damaged or missing components, call the Assembly Instructions Customer Helpline: 08456 400800 quoting the reference numbers below Step 1 Prepare the left side 10mm Tap a wooden dowel into the left side Note: Wooden dowels must not stick out from the edge by more than 10mm or they may damage other panels.
  • Page 6 Assembly Instructions Step 2 Prepare the right side Tap a wooden dowel into the right side Screw 3 metal dowels into the right side Insert 4 large locking nuts into the right side Fit 2 hinge plates onto the right side , making sure that the slot is facing towards the...
  • Page 7 Assembly Instructions Step 4 Join the left side to the left fascia panel Push the left side down onto the left fascia panel Dowel this end Left fascia Use a screwdriver to tighten the 2 large locking nuts fitted to the left side Note: Turn the large locking nuts...
  • Page 8 Assembly Instructions Step 6 Prepare the base Insert 4 large locking nuts into the base Finished front edge Step 7 Fit the base Push the base onto the right side Use a screwdriver to tighten the 2 large p l a locking nuts fitted to i n c...
  • Page 9 Assembly Instructions Step 9 Finished front edge Fit the dividers Attach the 2 dividers to the base using 4 screws Note: To make it easier to fit the 2 dividers, place polystyrene blocks from the packaging Finished underneath to raise them front edge up level.
  • Page 10 Assembly Instructions Step 12 Fit the left side Push the left side onto the assembly. Use a screwdriver to tighten the 3 large locking nuts fitted to the base and plinth Step 13 Fit the 5 plastic nails Tap 2 plastic nails into the bottom edge of each of the sides The other plastic nail...
  • Page 11 Assembly Instructions Step 14 Prepare the top Screw 8 metal dowels into the top Finished front edge Step 15 Warning: The Fit the top unit is heavy. Lift with care. Carefully stand the unit up for this step. Push the top down onto the assembly.
  • Page 12 Assembly Instructions Step 16 The measurement from top corner X to bottom corner X must be equal to the measurement from top corner Y to bottom corner Y Fit the backs Lay the unit back down for this step. Square up the unit by making sure that measurement x to x equals y to y.
  • Page 13 Assembly Instructions Step 17 Make sure that the plastic sleeve is fully pushed Fit the shelves onto the shelf stud. Insert 4 shelf studs each shelf at the required height. Lower the large shelves and small shelves down onto the shelf studs Step 18 Prepare the 2 doors...
  • Page 14 Assembly Instructions Step 19 IMPORTANT Carefully choose which 2 holes Drill 2 handle holes in each of the doors you need to drill in each door Important: Please follow these instructions ONLY drill these carefully. 2 holes in 1 door Lay the 2 doors down onto a smooth surface.
  • Page 15 Assembly Instructions Step 20 Fit doors and handles Note: The easiest way to attach each door to fit the top hinge first, then align and fit the other hinges. Push the hinge onto the front part of the hinge plate The recess at the bottom of screw B goes into the slot in the hinge plate.
  • Page 16 Assembly Instructions Step 21 Adjust the doors if needed Before adjusting the doors, use a spirit level to check the base (or top) of the unit is level, front-to-back and side-to-side in the 3 positions shown. Use suitable packing pieces (not supplied) to make the unit level BEFORE making any adjustment to the hinges,...
