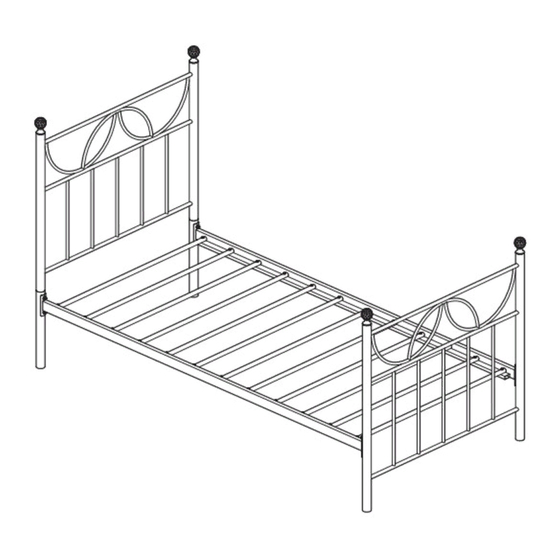

Crystal 3ft Fr ame
Assembly Instructions
Dimensions
Width - 98.2cm
Depth - 198.7cm
Height - 120.2cm
Important
– Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 0845 6400800
- Please keep for future reference
697/0536
697/0505
Issue 1 - 25/06/10
Advertisement
Related Manuals for Argos Home Crystal 3ft Frame 697/0536
Summary of Contents for Argos Home Crystal 3ft Frame 697/0536
- Page 1 Crystal 3ft Fr ame Assembly Instructions 697/0536 - Please keep for future reference 697/0505 Dimensions Width - 98.2cm Depth - 198.7cm Height - 120.2cm Important – Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 0845 6400800 Issue 1 - 25/06/10...
- Page 2 Safety and Care Advice Important – Please read these instructions fully before starting assembly • We do not • Check you have all the • As you unpack and prepare recommend the components and tools listed on for assembly, clear an area for use of power pages 2 and 3.
- Page 3 If you have damaged or missing components, Components - Panels call the Customer Helpline: 0845 6400800 Please check you have all the panels listed below Headboard Frame Footboard Frame Side rail x 2 (192.2 x 9cm) (98.2 x 76cm) (98.2 x 90cm) Headboard post x 2 S lat x 12 Final x 4...
- Page 4 Components - Fittings Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required. 16mm Bolt x 4 42mm Bolt x 24 30mm Bolt x 8 Small plain washer x 48 Spring washer x 8...
- Page 5 Assembly Instructions Step 1 Assemble headboard Assemble headboard posts to headboard frame using bolts and secure tightly. Step 2 Assemble side rails Three people are needed here Assemble side rails to headboard posts and footboard frame using bolts , spring washers and large plain washers...
- Page 6 Assembly Instructions Step 3 Assemble slats Assemble slats to the unit using bolts , small plain washers nuts Step 4 into the headboard frame and footboard frame. Note: Re-tighten all the bolts. Assembly is complete. If you need help or have damaged or missing parts, call the Customer Helpline: 0845 6400800...
