Pepperl+Fuchs KLD2-PR-Ex1.IEC. Manual page 22

Power repeater / power supply according to IEC 61158-2
FOUNDATION FieldbusMechanics of power repeaters
The following illustration applies in regard to the mechanical dimensions for products
• KLD2-PR-1.IEC
• KLD2-PR-NI1.IEC
1 2 3 4 5 6 7 8
13 14 15 16 17 18 19 20 21 22 23 24
S2
25 26 27 28 29 30 31 32 33 34 35 36
37 38 39 40 41 42 43 44 4 5 46 47 48
removable
terminals

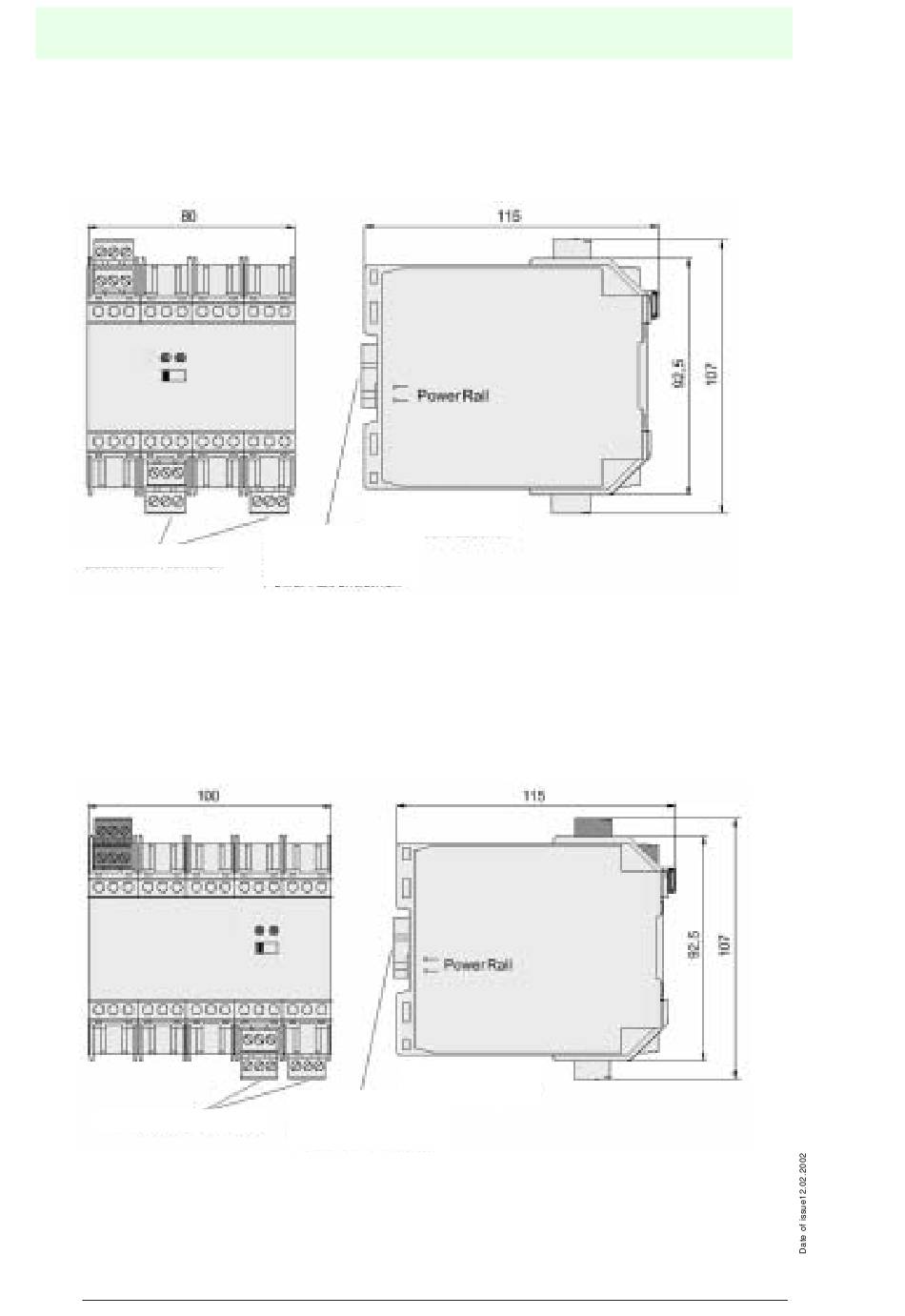

Figure 6.2: Mechanical dimensions of power repeaters without Ex i interface
The following illustration applies in regard to the mechanical dimensions for products
• KLD2-PR-Ex1.IEC
• KLD2-PR2-Ex1.IEC
• KLD2-PR-Ex1.IEC1
• KLD2-PR2-Ex1.IEC1
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
16 17 18 19 20 21 22 23 24 25 26 27 28 29 30
31 32 33 34 35 36 37 38 39 40 41 42 43 44 45
46 47 48 49 50 51 52 53 54 55 56 57 58 59 60
removable
terminals
Figure 6.3: Mechanical dimensions of power repeater with Ex i interface
Subject to reasonable modifications due to technical advances.
20
Pepperl+Fuchs Group • Tel.: Germany (06 21) 7 76-0 • USA (330) 4 25 35 55 • Singapore 7 79 90 91 • Internet http://www.pepperl-fuchs.com
9 10 11 12
protective cap
for Power Rail
connector
S2
protective cap
for Power Rail
connector
