FOUNDATION FieldbusMechanics of power repeaters

6 FOUNDATION FieldbusMechanics of power repeaters
6.1

Mechanical dimensions and connections

Power repeaters and power supplies are designed according to the tried and proven
KF system of Pepperl+Fuchs.
In principle, there are three housing types for power repeaters and power supplies.
For the dimensions of this housing, please refer to the following
illustrations:
The following illustration applies in regard to the mechanical dimensions for products
• KLD2-STR-1.24.400.IEC
• KLD2-STR-NI1.13.225
60
removable
terminals

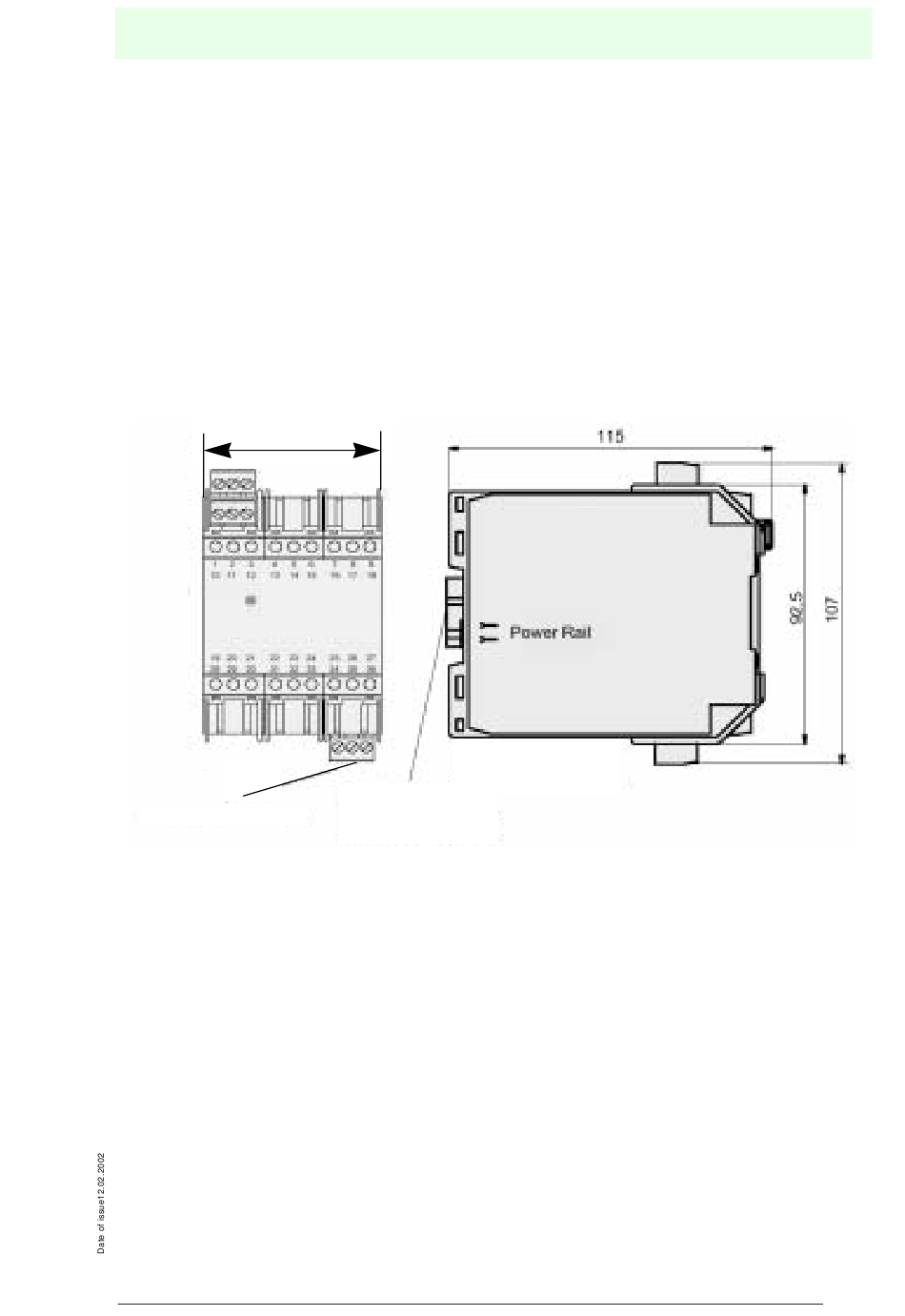

Figure 6.1: Mechanical dimensions of power supplies
Subject to reasonable modifications due to technical advances.
