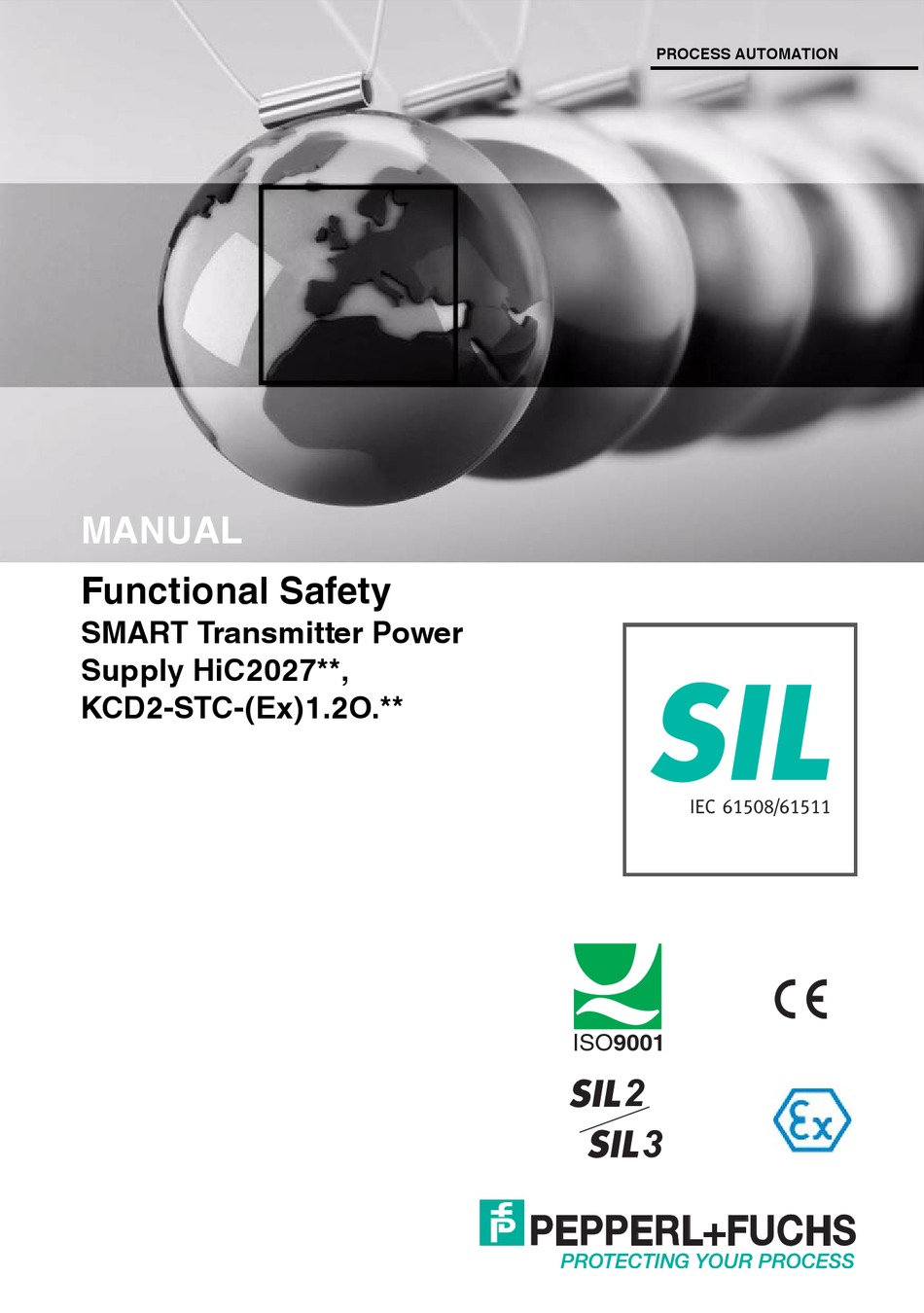

- Page 1 PROCESS AUTOMATION MANUAL Functional Safety SMART Transmitter Power Supply HiC2027**, KCD2-STC-(Ex)1.2O.** ISO9001...
- Page 2 Functional Safety HiC2027**, KCD2-STC-(Ex)1.2O.** With regard to the supply of products, the current issue of the following document is applicable: The General Terms of Delivery for Products and Services of the Electrical Industry, published by the Central Association of the Electrical Industry (Zentralverband Elektrotechnik und Elektroindustrie (ZVEI) e.V.) in its most recent version as well as the supplementary clause: "Expanded reservation of proprietorship"...
-
Page 3: Table Of Contents
Functional Safety HiC2027**, KCD2-STC-(Ex)1.2O.** Content 1 Introduction........4 1.1 Contents . -
Page 4: Introduction
Additionally, the following parts may belong to the documentation, if applicable: • EC-type of examination • EU declaration of conformity • Attestation of conformity • Certificates • Control drawings • FMEDA report • Assessment report • Additional documents For more information about functional safety products from Pepperl+Fuchs see www.pepperl-fuchs.com/sil. -
Page 5: Safety Information
Functional Safety HiC2027**, KCD2-STC-(Ex)1.2O.** Introduction Safety Information Target Group, Personnel Responsibility for planning, assembly, commissioning, operation, maintenance, and dismounting lies with the plant operator. Only appropriately trained and qualified personnel may carry out mounting, installation, commissioning, operation, maintenance, and dismounting of the product. - Page 6 Functional Safety HiC2027**, KCD2-STC-(Ex)1.2O.** Introduction Depending on the risk level, the warning messages are displayed in descending order as follows: Danger! This symbol indicates an imminent danger. Non-observance will result in personal injury or death. Warning! This symbol indicates a possible fault or danger. Non-observance may cause personal injury or serious property damage.
-
Page 7: Product Description

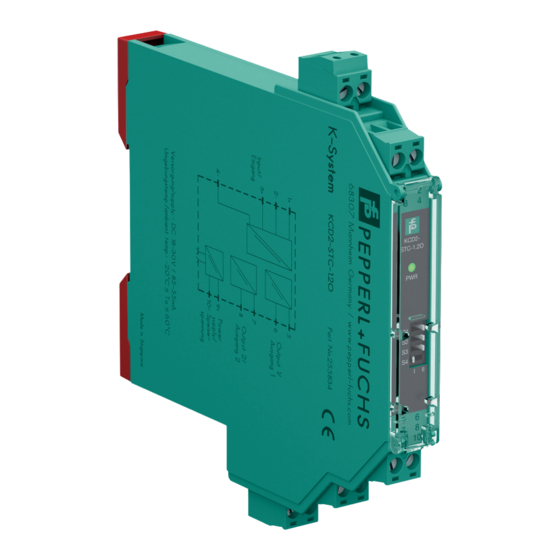

Functional Safety HiC2027**, KCD2-STC-(Ex)1.2O.** Product Description Product Description Function General The device supplies 2-wire transmitters in the hazardous area, and can also be used with current sources. It transfers the analog input signal to the safe area as two isolated output signals. Bi-directional communication is supported for SMART transmitters that use current modulation and voltage modulation for the information transfer. -
Page 8: Marking
Functional Safety HiC2027**, KCD2-STC-(Ex)1.2O.** Product Description Marking Pepperl+Fuchs GmbH Lilienthalstraße 200, 68307 Mannheim, Germany Internet: www.pepperl-fuchs.com HiC2027, HiC2027DE, Up to SIL 2 KCD2-STC-1.2O, KCD2-STC-Ex1.2O, KCD2-STC-Ex1.2O.DE HiC2027ES, KCD2-STC-Ex1.2O.ES Up to SIL 3 Standards and Directives for Functional Safety Device specific standards and directives Functional safety IEC/EN 61508, part 1 –... -
Page 9: Planning
Functional Safety HiC2027**, KCD2-STC-(Ex)1.2O.** Planning Planning System Structure 3.1.1 Low Demand Mode of Operation If there are two control loops, one for the standard operation and another one for the functional safety, then usually the demand rate for the safety loop is assumed to be less than once per year. -
Page 10: Assumptions
Functional Safety HiC2027**, KCD2-STC-(Ex)1.2O.** Planning Assumptions The following assumptions have been made during the FMEDA: • Failure rate based on the Siemens standard SN29500. • Failure rates are constant, wear is not considered. • External power supply failure rates are not included. •... -
Page 11: Safety Function And Safe State
Functional Safety HiC2027**, KCD2-STC-(Ex)1.2O.** Planning SIL 3 application • The device shall claim less than 10 % of the total failure rate for a SIL 3 safety loop. • For a SIL 3 application operating in low demand mode the total PFD value of the SIF (Safety Instrumented Function) should be smaller than 10 , hence... - Page 12 Functional Safety HiC2027**, KCD2-STC-(Ex)1.2O.** Planning KCD2-STC-(Ex)1.2O.** devices Operating mode Switch S1 Switch S2 Current source output Current sink output Voltage source output Not valid Table 3.2 Switch settings output I Operating mode Switch S3 Switch S4 Current source output Current sink output Voltage source output Not valid Table 3.3...
- Page 13 Functional Safety HiC2027**, KCD2-STC-(Ex)1.2O.** Planning HiC2027DE device Operating mode Switch S3 Switch S4 Current source output Current sink output Voltage source output Not valid Table 3.6 Switch settings output I Operating mode Switch S5 Switch S6 Current source output Current sink output Voltage source output Not valid Table 3.7...
-
Page 14: Characteristic Safety Values
Functional Safety HiC2027**, KCD2-STC-(Ex)1.2O.** Planning Characteristic Safety Values SIL 2 Versions: HiC2027(DE), KCD2-STC-(Ex)1.2O(.DE) Parameters acc. to IEC 61508 Characteristic values Assessment type and documentation Full assessment Device type Operating mode Low Demand Mode or High Demand Mode SIL (SC) Safety function Transfer of analog signals 0 FIT ... - Page 15 Functional Safety HiC2027**, KCD2-STC-(Ex)1.2O.** Planning SIL 3 Versions: HiC2027ES, KCD2-STC-Ex1.2O.ES Parameters acc. to IEC 61508 Characteristic values Assessment type and Full assessment documentation Device type Operating mode Low Demand Mode or High Demand Mode SIL (SC) Safety function Transfer of analog signals Input and output function Channel 1 Channel 2...
-
Page 16: Useful Life Time
As noted in DIN EN 61508-2:2011 note N3, appropriate measures taken by the manufacturer and plant operator can extend the useful lifetime. Our experience has shown that the useful lifetime of a Pepperl+Fuchs product can be higher if the ambient conditions support a long life time, for example if the ambient temperature is significantly below 60 °C. -
Page 17: Mounting And Installation
Functional Safety HiC2027**, KCD2-STC-(Ex)1.2O.** Mounting and Installation Mounting and Installation Installing the device 1. Observe the safety instructions in the instruction manual. 2. Observe the information in the manual. 3. Observe the requirements for the safety loop. 4. Connect the device only to devices that are suitable for this safety application. 5. -
Page 18: Operation
Functional Safety HiC2027**, KCD2-STC-(Ex)1.2O.** Operation Operation Danger! Danger to life from missing safety function If the safety loop is put out of service, the safety function is no longer guaranteed. • Do not deactivate the device. • Do not bypass the safety function. •... - Page 19 Functional Safety HiC2027**, KCD2-STC-(Ex)1.2O.** Operation Proof Test Procedure 1. Put out of service the entire safety loop. Protect the application by means of other measures. 2. Prepare a test set-up, see figures below. 3. Test the devices. Verify the current values as given in table below. 4.
- Page 20 Functional Safety HiC2027**, KCD2-STC-(Ex)1.2O.** Operation KCD2-STC-Ex1.2O Signal calibration 4 mA to 20 mA Multimeter (mA/V) Multimeter (mA/V) supply 24 V DC Zone 0, 1, 2 Zone 2 Power supply Div. 1, 2 Div. 2 Figure 5.2 Proof test set-up for KCD2-STC-(Ex)1.2O.** Usage in Zone 0, 1, 2/Div.
-
Page 21: Maintenance And Repair
Functional Safety HiC2027**, KCD2-STC-(Ex)1.2O.** Maintenance and Repair Maintenance and Repair Danger! Danger to life from missing safety function If the safety loop is put out of service, the safety function is no longer guaranteed. • Do not deactivate the device. •... -
Page 22: List Of Abbreviations
Functional Safety HiC2027**, KCD2-STC-(Ex)1.2O.** List of Abbreviations List of Abbreviations Emergency Shutdown Failure In Time in 10 FMEDA Failure Mode, Effects, and Diagnostics Analysis Probability of safe failure Probability of dangerous detected failure Probability of dangerous undetected failure ... - Page 23 Functional Safety HiC2027**, KCD2-STC-(Ex)1.2O.** Notes...
- Page 24 PROCESS AUTOMATION – PROTECTING YOUR PROCESS Worldwide Headquarters Pepperl+Fuchs GmbH 68307 Mannheim · Germany Tel. +49 621 776-0 E-mail: info@de.pepperl-fuchs.com For the Pepperl+Fuchs representative closest to you check www.pepperl-fuchs.com/contact www.pepperl-fuchs.com Subject to modifications Copyright PEPPERL+FUCHS • Printed in Germany DOCT-5513 03/2017...
