Installing The Rail; Positioning The Rail - vimec V64 B.I. Use And Maintenance

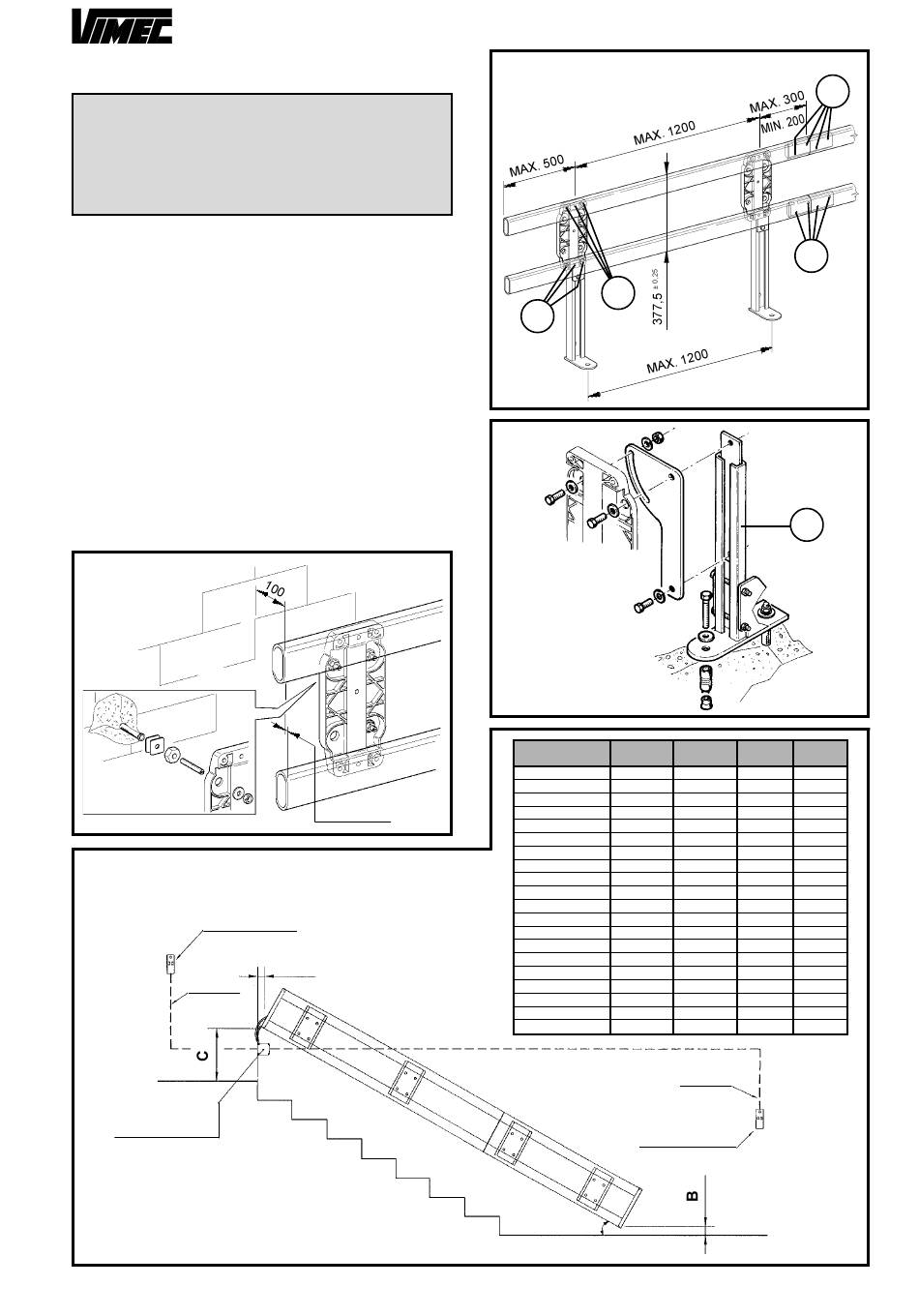

2) INSTALLING THE RAIL

ONLY FOR STOCK GUIDE:
- Following the dimensions shown on the
assembly drawing (see example in Fig. 5) specific
to each installation, place the rail in position of
the guide connections using the screws M8 x 25
(Fig. 5/a) (driving torque: 1,6 ÷ 2 DaNm).
- If the guide junction is projected, connect to plates
(plates + dowels with driving torque: 5 ÷ 6 DaNm - Fig.
1/b).
- If the system installation drawing envisages then,
place the feet (optional) as shown in Fig. 6/a, fixed
resting on the floor or on the stairs.
- When mounting a rail without stair steps, supported
by the wall-mountings only, use the positioning feet
provided (accessories for the installation technician).
- After fixing all the feet (if present) and checking the
project dimensions (Fig. 8) prearrange the wall
attachments (shim with washers to reach the minimum
dimension 100 mm) and fixed by inserting the
expansion plugs provided (Fig. 7).
N.B.: maximum flatness error on 4 connecting points
of 1 mm.
FIG.7
FIG.8
CONTROL
BOARD
HIGH LEVEL
SHEATH
Ø 20
CONNECTOR
BLOCK
Max.1 mm
A
17
FIG.5
a
a
FIG.6
a
A (V64)
10 ÷ 12 163
12,1 ÷ 14 127
14,1 ÷ 16 110
16,1 ÷ 18 100
18,1 ÷ 20 84
20,1 ÷ 22 64
22,1 ÷ 24 46
24,1 ÷ 26 43
26,1 ÷ 28 50
28,1 ÷ 30 56
30,1 ÷ 32 63
32,1 ÷ 34 69
34,1 ÷ 36 76
36,1 ÷ 38 83
38,1 ÷ 40 90
40,1 ÷ 42 97
42,1 ÷ 44 104
44,1 ÷ 46 112
46,1 ÷ 48 120
48,1 ÷ 50 129
CONTROL
BOARD
LOW LEVEL
α
7602026
b
b
a
A (V74) B C
263 169 304
227 156 320
210 144 336
200 133 351
184 122 368
164 113 384
146 103 400
143 92 417
150 85 433
156 74 450
163 68 467
169 61 483
176 54 500
183 48 517
190 42 533
197 37 550
204 33 566
212 29 583
220 25 600
229 22 615
SHEATH
Ø 20
