Altronix eFlowNA8V Series Installation Manual page 9

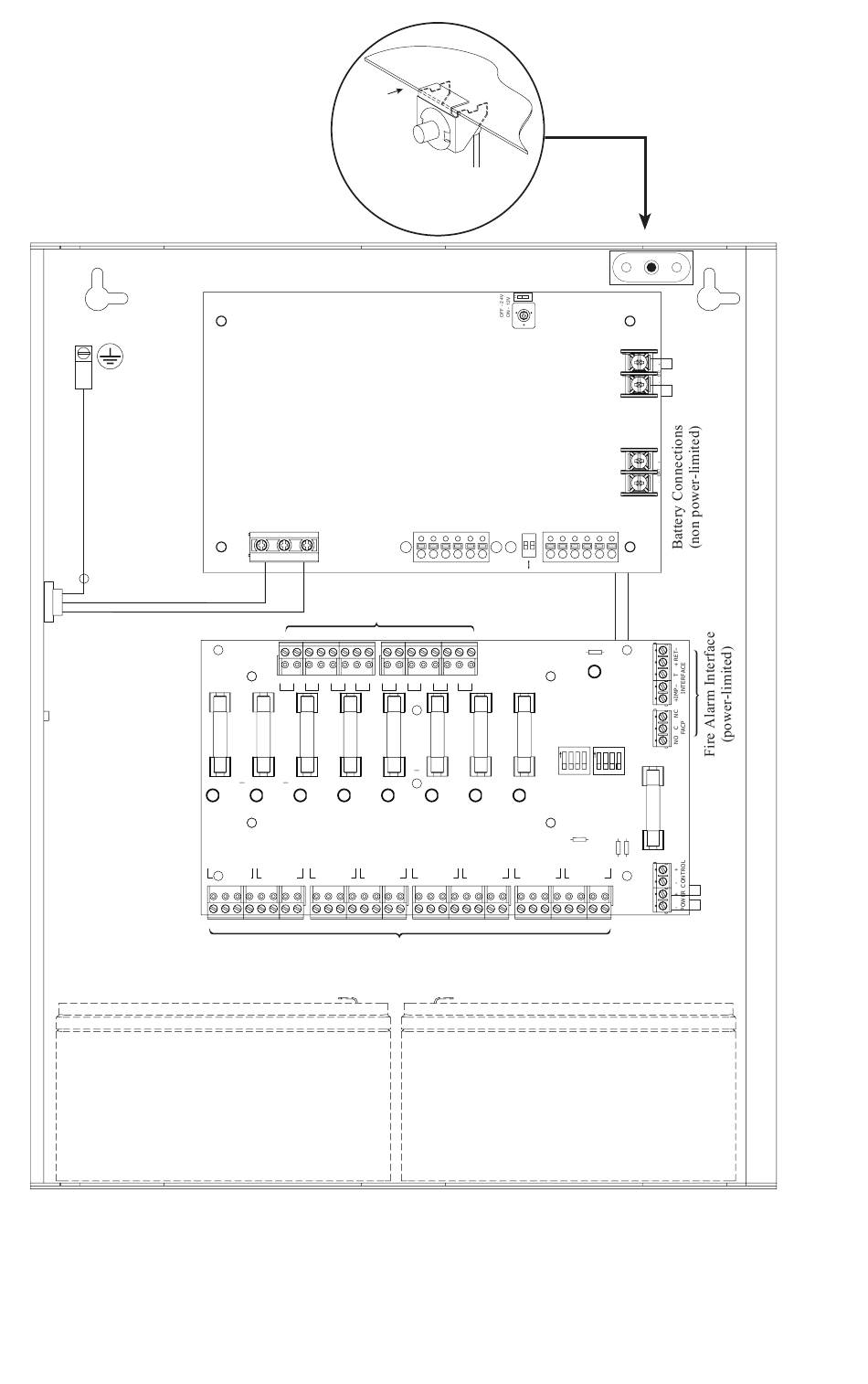

Fig. 3
Ground Lug
Optional Rechargeable
Stand-by Battery
CAUTION: When power supply board is set for 12VDC use only one (1) 12VDC stand-by battery.
Keep power-limited wiring separate from non power-limited. Use minimum 0.25" spacing.
12AH Rechargeable batteries are the largest batteries that can fit in this enclosure.
A UL listed external battery enclosure must be used if using the 40AH or 65AH batteries.
eFlowNA8V Series
Edge of
Enclosure
Tamper Switch
(included)
Unswitched 220VAC
power mains
Non power-limited
L G N
Inputs (power-limited)
IN GND IN GND IN GND IN GND
1 2 3 4
LED1 LED2 LED3 LED4
NC C NO COM NC C NO COM NC C NO COM NC C NO COM
OUTPUT 1 OUTPUT 2 OUTPUT 3 OUTPUT 4
DC Output to devices (power-limited for eFlow4NA8V,
non power-limited for all other models*)
Enclosure
To Access Control Panel or
UL Listed Reporting Device
Tamper Switch
AC1 AC DC
1 min enable
NC C NO NC C NO
2 hr disable
AC FAIL BAT FAIL
power-limited
IN GND IN GND IN GND IN GND
5 6 7 8
LED5 LED6 LED7 LED8
NC C NO COM NC C NO COM NC C NO COM
OUTPUT 5 OUTPUT 6 OUTPUT 7
Optional Rechargeable
Stand-by Battery
Fig. 3a
TRIGGER EOL NO GND
+AUX-
SUPERVISED RESET
TRG
O N O N
F8
1 2 3 4 1 2 3 4
J3 J2 J1
NC C NO COM
OUTPUT 8
- 9 -
