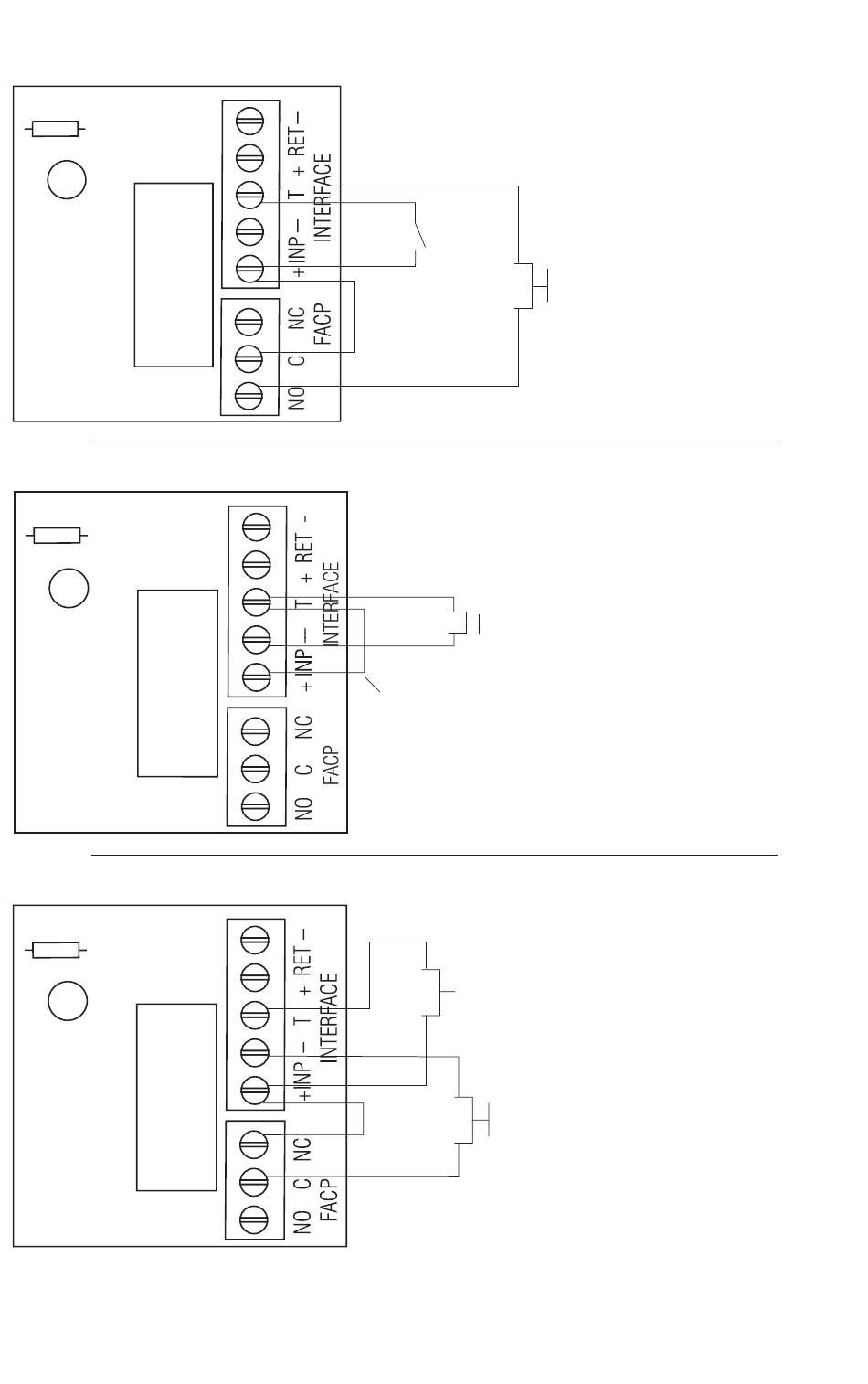

Fig. 8 Normally Open FACP Latching trigger input with reset:
TRG
Fig. 9 Normally Closed - Non-Latching FACP trigger input:
TRG
Fig. 10 Normally Closed - Latching FACP trigger input with reset:
TRG
- 12 -
FACP Hook-Up Diagrams (cont'd):
JUMPER
JUMPER
JUMPER
N.O.
TRIGGER
INPUT
N.C. RESET
SWITCH
N.C. DRY
TRIGGER
INPUT
N.C. RESET
SWITCH
N.C. TRIGGER
INPUT
eFlowNA8V Series
