Passive heat trim for cosmo-ift-b series, rave-ift-b series, jade-b series

Advertisement

PHTRIM-32LINEAR, PHTRIM-36LINEAR, PHTRIM-42LINEAR
Models: COSMO-IFT-B Series, RAVE-IFT-B Series, JADE-B Series
Leave this manual with party responsible for use
and operation.
CAUTION! Risk of Cuts, Abrasions or Flying Debris.
Wear protective gloves and safety glasses during instal-
lation. Sheet metal edges are sharp.
CAUTION! Do not install damaged components.
If any parts are missing or damaged, contact your dealer before
starting installation. DO NOT install a damaged kit.
DANGER
DO NOT TOUCH GLASS
NEVER ALLOW CHILDREN
A barrier designed to reduce the risk of
burns from the hot viewing glass is provided
with this appliance and shall be installed for
the protection of children and other at-risk
individuals.
WARNING! Risk of Fire!
• Combustible materials MUST NOT overlap or be placed
behind a decorative front.
• DO NOT apply combustible materials beyond the
minimum clearances. Comply with all minimum
clearances to combustibles as specified. Overlapping
materials could ignite and will interfere with proper
operation of decorative fronts.

Preparation

CAUTION! Risk of Burns!
• The fireplace should be turned off and cooled before kit
is installed.
• Shut off gas supply.
Hearth & Home Technologies • PHTRIM-32LINEAR, PHTRIM-36LINEAR, PHTRIM-42LINEAR Instructions • 2616-971 Rev. B • 10/19
Passive Heat Trim Installation Instructions
HOT GLASS WILL
CAUSE BURNS.
UNTIL COOLED.
TO TOUCH GLASS.

Introduction

This trim kit is used with the Passive Heat Front Discharge
(PH-FRT-LINEAR) Heat Management System, which con-
veys warm air from the fireplace into the same room through
a front discharge opening. Installation of the Passive Heat
kit must be done in conjunction with the appliance installa-
tion. Follow instructions included with the PH-FRT-LINEAR
kit to complete installation of the Passive Heat system.
Installation of this kit MUST be performed by a qualified
service technician.
WARNING! Risk of Fire! DO NOT install the Passive Heat
system with models that are not approved. Overheating
will occur.

Kit Contents

Verify and remove contents from packaging before
beginning installation.
(1) Vent Cover
(1) Vent Back Plate
(10) Screws

Installation

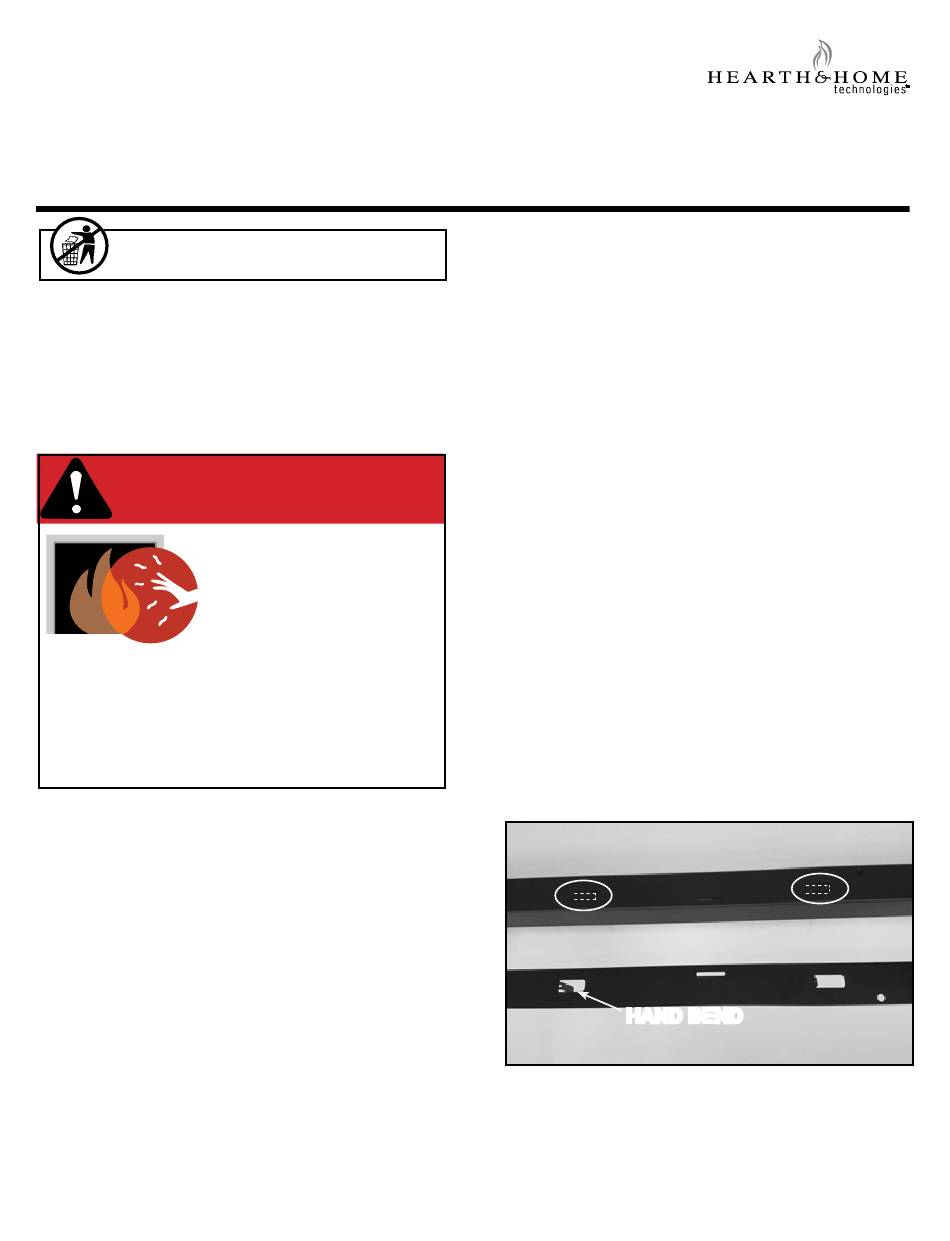

1. Locate hand bends on the vent back plate as shown in
Figure 1. Use a screwdriver to bend them in the same
direction as the long and short bends.The number of
hand bends may vary by appliance size.
HAND BEND
Figure 1 Back Plate Hand Bends
1
