Typical Application Diagrams - Altronix AL175ULX2 Manual

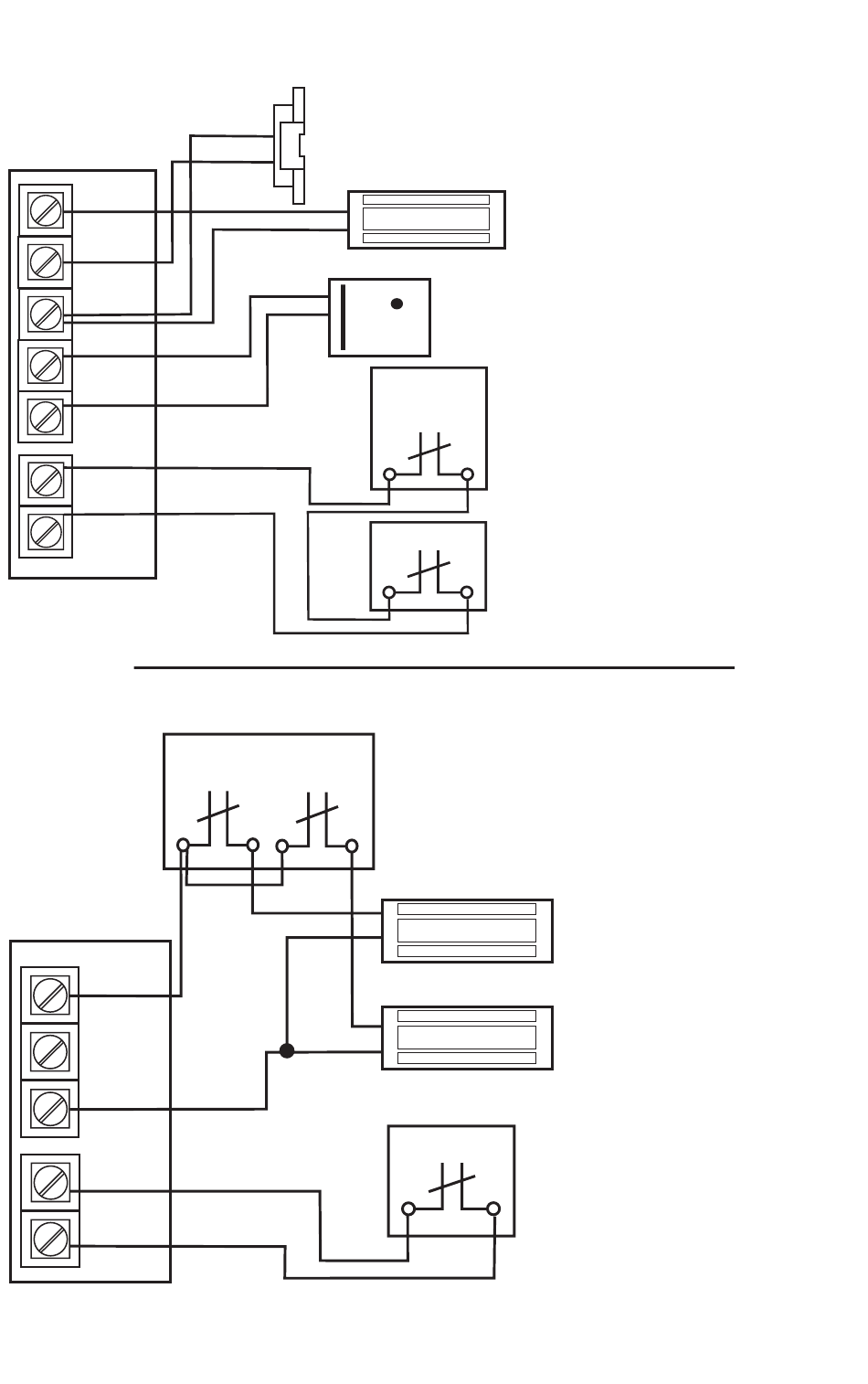

Fig. 2 Typical single mag lock or door strike installation with fire alarm tie-in using trigger controlled output:
LOCK +
STRIKE +
COM --
AUX +
AUX --
TRG2
TRG1
Fig. 3 Typical dual mag lock installation with fire alarm tie-in using trigger controlled outputs:
LOCK +
STRIKE +
COM --
TRG2
TRG1
AL175ULX

Typical Application Diagrams:

DOOR
STRIKE
ACCESS CONTROL
DEVICE
MAG LOCK
PROX/CARD
READER
ACCESS
CONTROL
DEVICE
FACP
MAG LOCK
MAG LOCK
FACP
