Altronix AL175ULX2 Manual page 4

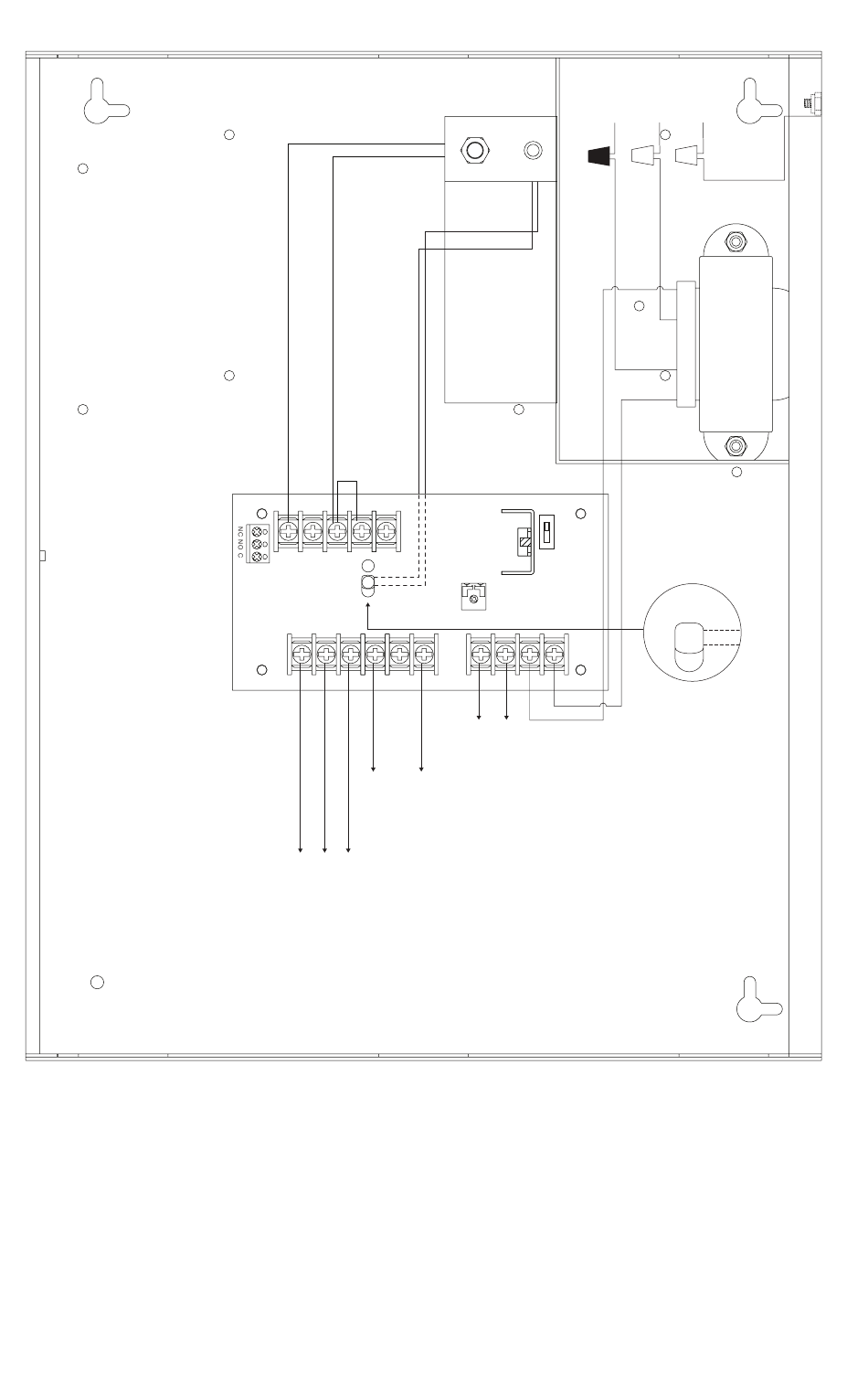

Fig. 1 - AL175ULX2
- 4 -
JUMPER
NC NO C TRG1 TRG2
DC
AC
AL175ULB
LOCK + STRIKE + COM -- AUX + FACP AUX --
Constant
output
(not affected
by trigger)
Switched
DC output
(trigger control)
AC Power
Reset Switch
LED
Black
Lead
SW1 ON - 24V
OFF - 12V
ON
SW1
VR1
+ BAT -- AC AC
Stand-by
Battery
(optional)
Input 115VAC
60Hz, 0.6A
Green Lead
(ground)
White
Lead
XFMR
Molex
Connector
AC
AL175ULX
