Typical Application Diagrams - Altronix AL175UL Installation Manual

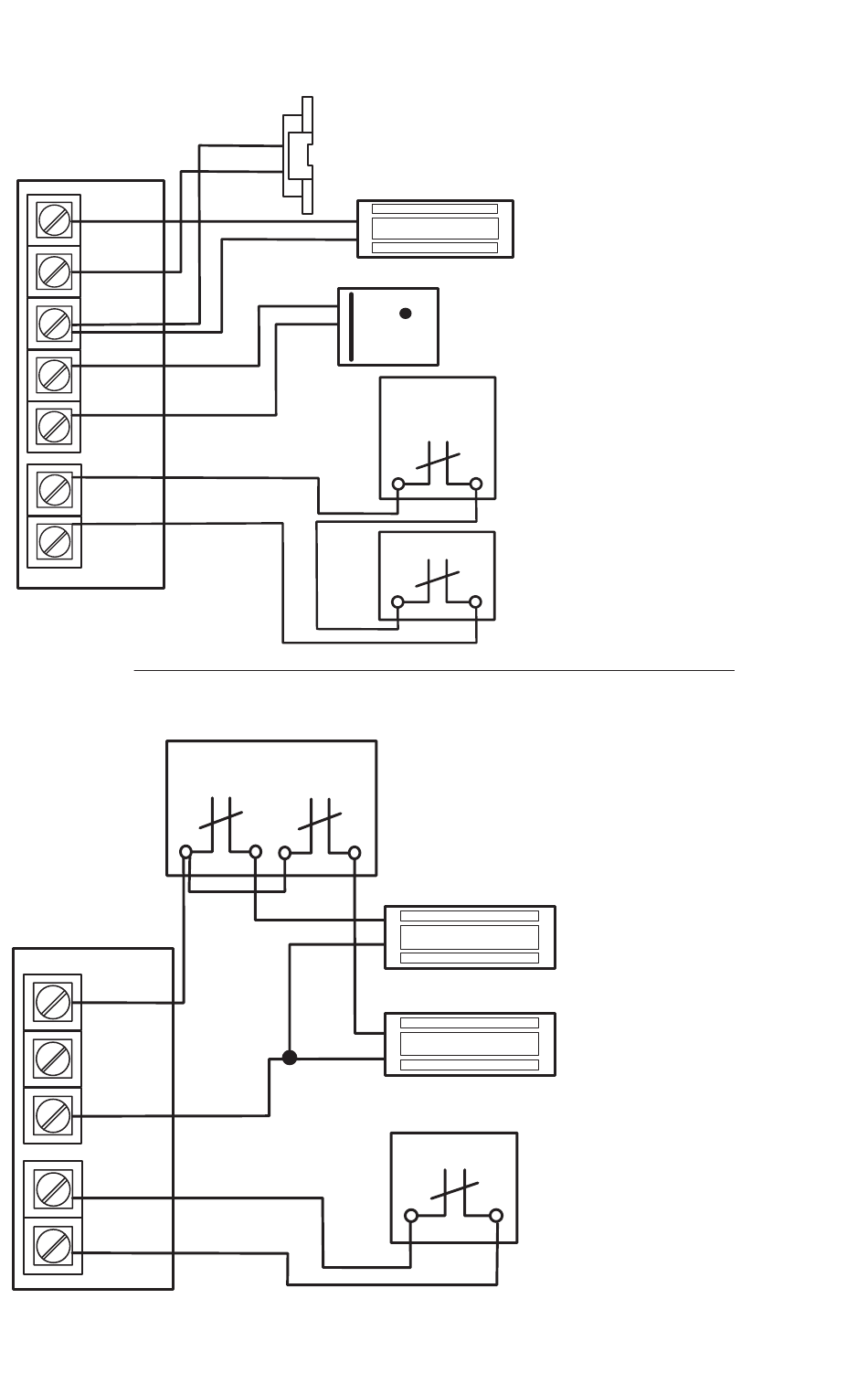

Fig. 2 Typical single mag lock or door strike installation with fire alarm tie-in using trigger controlled output:
LOCK +
STRIKE +
COM –
AUX +
AUX –
TRG2
TRG1
Fig. 3 Typical dual mag lock installation with fire alarm tie-in using trigger controlled outputs:
LOCK +
STRIKE +
COM –
TRG2
TRG1
- 6 -

Typical Application Diagrams:

DOOR
STRIKE
ACCESS CONTROL
DEVICE
MAG LOCK
PROX/CARD
READER
ACCESS
CONTROL
DEVICE
FACP
MAG LOCK
MAG LOCK
FACP
AL175UL Installation Guide
