Johnson Controls EDA-8102 Installation Sheet page 8

9. Connect terminal IN to COM (TB1) as shown in Figure 10. The
10. Slowly adjust the CCW potentiometer (R36) until the actuator rotates
11. Remove the connection between terminals IN and COM (TB1).
Note: Calibration of offset and span is required after changing rotation.
EDA-8102 Electric Damper Actuator
AC COM IN +15 +1 AUXIN
TB1

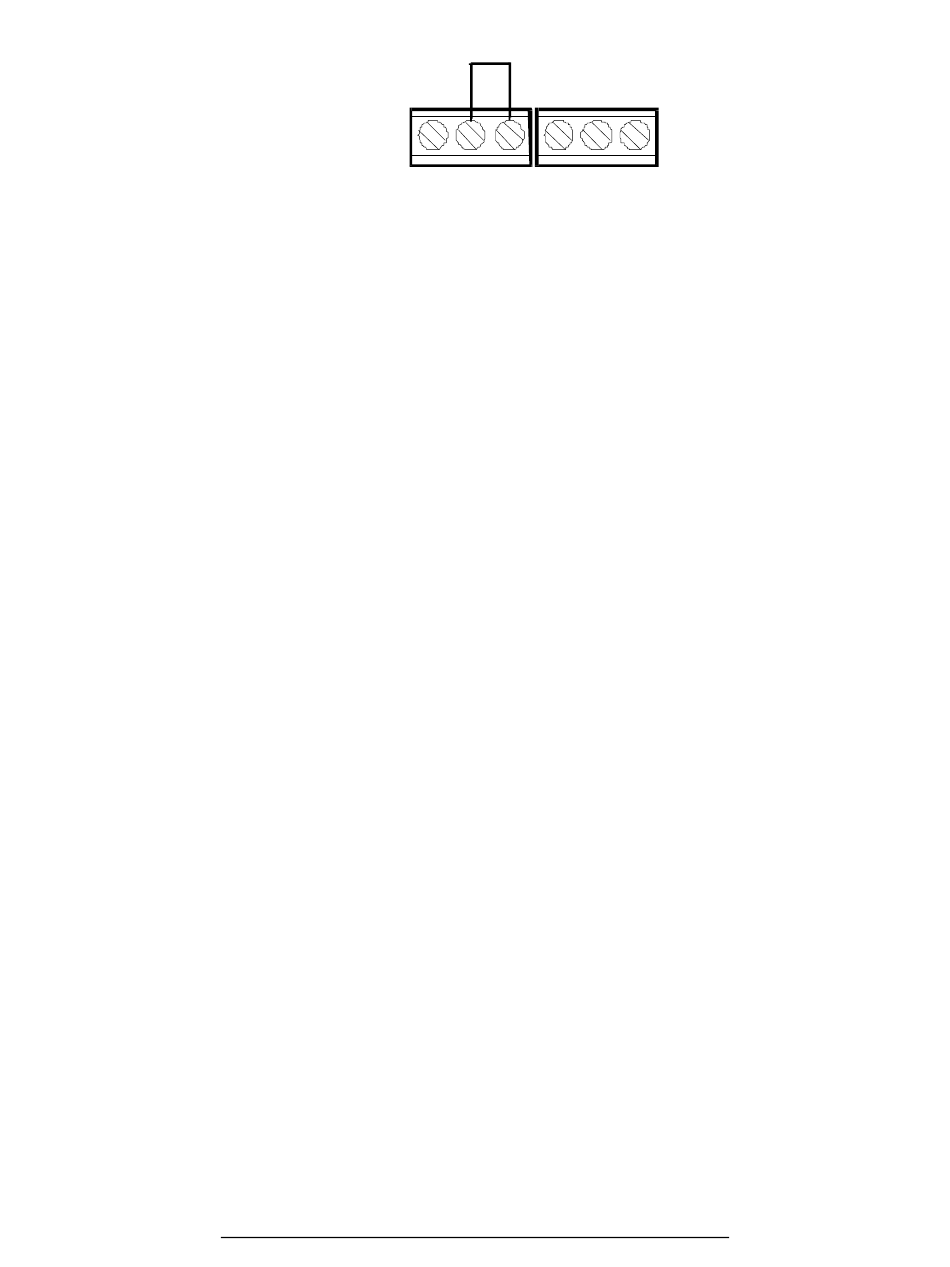

Figure 10: End Stop Connection
actuator will rotate until the end stop is reached.
to the desired position.
Depending on controller application, proceed with the appropriate
calibration procedure.
TB2
