Johnson Controls EDA-8102 Installation Sheet page 5

Wiring
6. Slide the actuator onto the drive pin extension.
7. Secure the actuator to the wall or duct with the screws and insulators
included in the kit.
8. Tighten the two square-head screws on the actuator coupler.
Note: The cover should remain off until the wiring is completed.
!
CAUTION:
1. Insert the leads from the controller through one of the three openings.
2. Install the black plugs in the other two conduit openings. See
Figure 6.
Input Voltage
24 VAC Input Power
3. Connect the leads to Terminal Block 1 (TB1) as shown in Figure 7.
EDA-8102 Electric Damper Actuator
Disconnect all power before wiring the actuator to
avoid electrical shock or damaging the equipment.
Conduit Opening

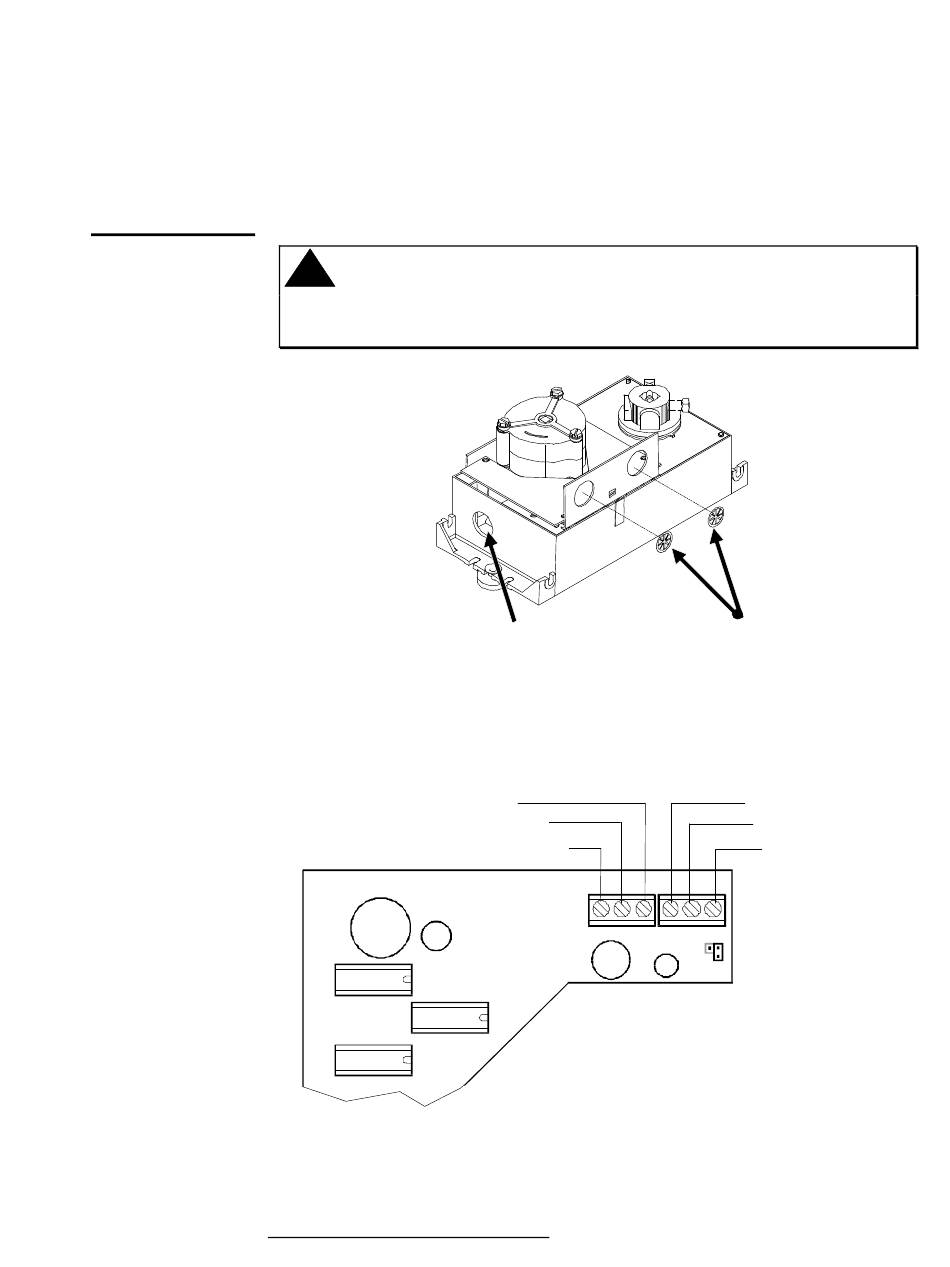

Figure 6: Conduit Openings
Common
COM
AC IN
TB1
Figure 7: Wiring Connections
5
Opening Covers
+15 V Output Supply
Slidewire
Auxiliary Input
AUXIN
+15
+1
TB2
