Johnson Controls EDA-8102 Installation Sheet page 3

6 in. min*
4.34
(110)
(3x 0.875)
for 1/2 in. conduit
* Six inch minimum required for cover removal, field wiring, and field adjustments.

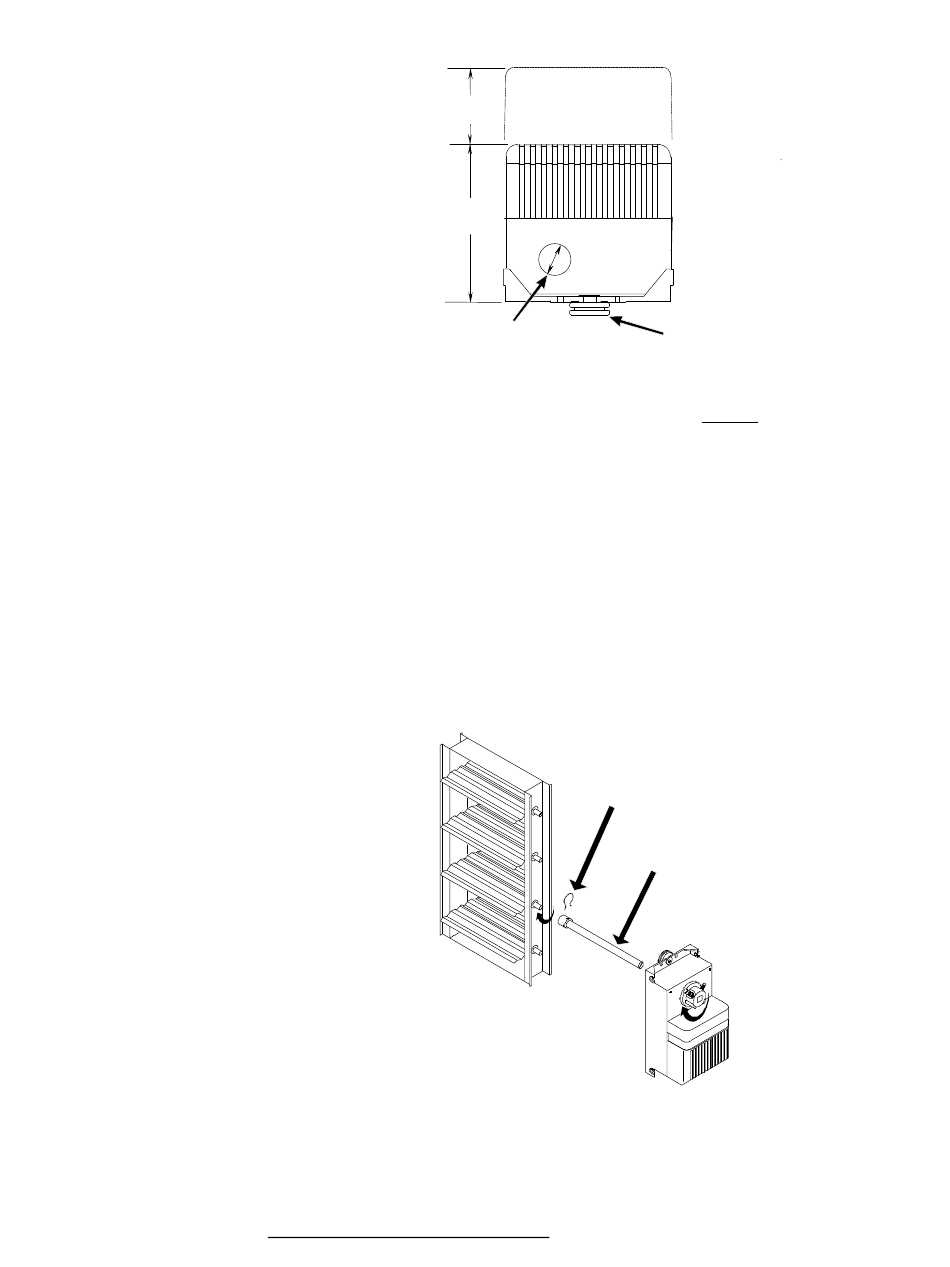

Figure 3: End View Dimension
Note: Before starting the job, obtain the damper installation information
to use as a reference when mounting the actuator.
1. Locate the preferred driving blade on the damper.
2. Cut a 1-1/4 inch (32 mm) hole in the duct or wall over the driving
blade pin.
3. Attach the drive pin extension to the drive pin and secure using the
clip provided.
4. Firmly grasp the drive pin extension with a pliers and manually close
the damper blades.
5. Note which direction closes the damper, clockwise (CW) or
counterclockwise (CCW).
EDA-8102 Electric Damper Actuator
Rubber Grommet
(2 Required)
Retainer Clip
Drive Pin Extension
Figure 4: Rotation.
3
inches
mm
