Unit should be tested at least once a year for the proper operation as follows:
Output Voltage Test: Under normal load conditions the DC output voltage should be checked for proper voltage level
(refer to Power Supply Voltage Output Specifications chart).
Battery Test: Under normal load conditions check that the battery is fully charged, check specified voltage both at the
battery terminal and at the board terminals marked [+ BAT –] to ensure that there is no break in the battery
connection wires.
Note: Maximum charging current under discharge is 0.7 amp.
Note: Expected battery life is 5 years; however, it is recommended changing batteries in 4 years or less if needed.
Red (DC) Green (AC) Power Supply Status
ON ON
ON OFF
OFF ON
OFF OFF
Red (Bat) Battery Status
ON Normal operating condition.
OFF Battery fail/low battery.
Terminal Legend Function/Description
L, G, N Connect 220VAC 50/60Hz to these terminals: L to hot, N to Neutral, G to ground.
+ DC - - - 12VDC or 24VDC @ 2.5 amp continuous output.
Indicates loss of AC power, e.g. connect to audible device or alarm panel. Relay normally energized
AC Fail
when AC power is present. Contact rating 1 amp @ 28VDC. AC or brownout fail is reported within
NC, C, NO
1 minute of event. To delay reporting of up to 6 hrs., cut "AC delay" jumper and reset power to unit.
Bat Fail
Indicates low battery condition, e.g. connect to alarm panel. Relay normally energized when DC
NC, C, NO power is present. Contact rating 1 amp @ 28VDC.
+ BAT - - - Stand-by battery connections. Maximum charge current 0.7 amp.

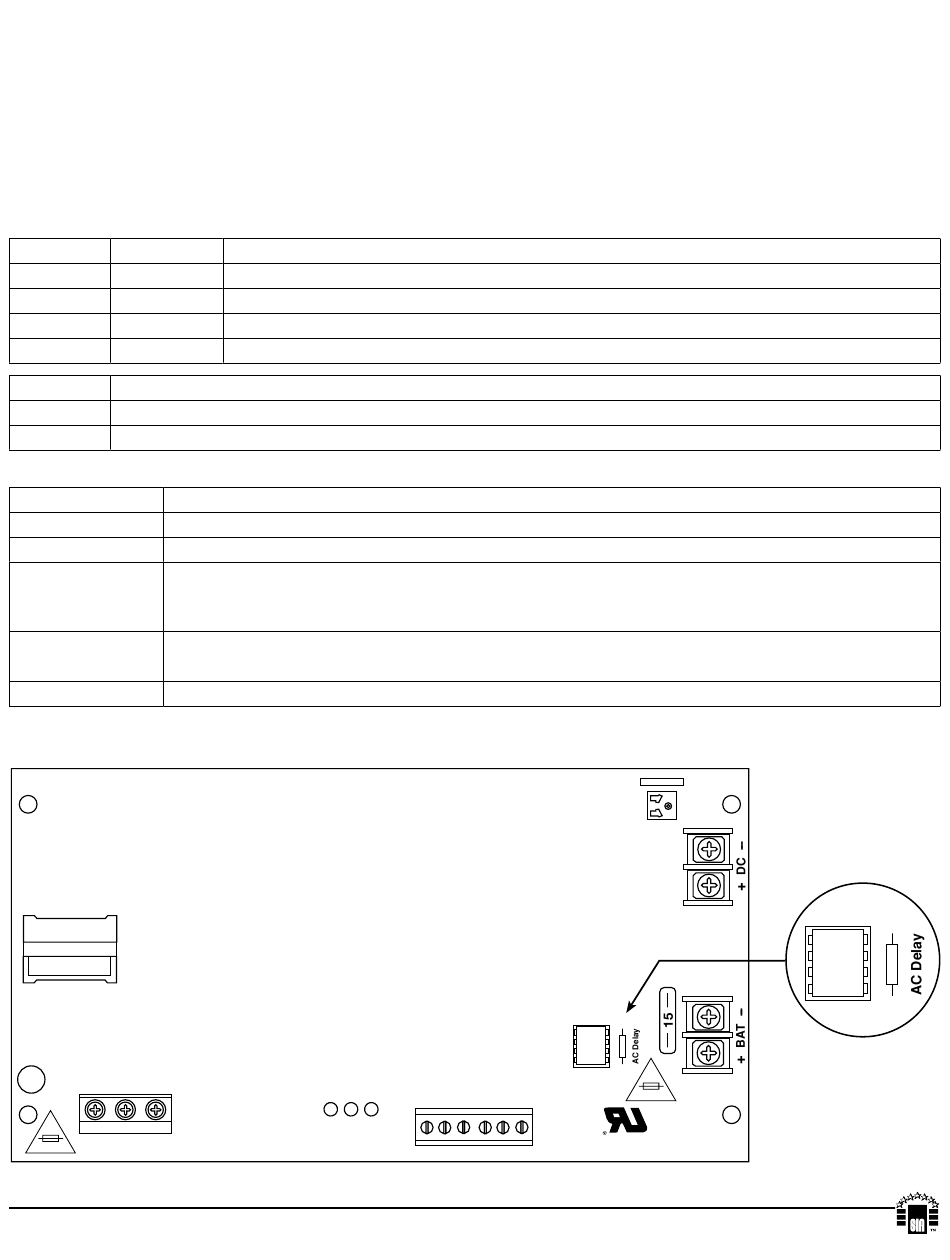

Fig. 2
Risk of Fire,
Replace Fuses
As Marked
G N
L G N
5A 250V
Altronix is not responsible for any typographical errors.
140 58th Street, Brooklyn, New York 11220 USA, 718-567-8181, fax: 718-567-9056
website: www.altronix.com, e-mail: info@altronix.com, Lifetime Warranty, Made in U.S.A.
IIAL300XB2V - Rev. 012813
Normal operating condition.
Loss of AC. Stand-by battery supplying power.
No DC output.
Loss of AC. Discharged or no stand-by battery. No DC output.

Terminal Identification:

AC DC Bat
Risk of Fire,
Replace Fuses
As Marked
AC DC Bat

Maintenance:

LED Diagnostics:

Bat Fail NC
Bat Fail NC C NO NC C NO AC Fail
F30N
Opened - 24V
SW1
Closed - 12V
J1
15A 250V
C NO NC C NO AC Fail
Opened - 24V
Closed - 12V
Fig. 2a
J1
15A 250V
