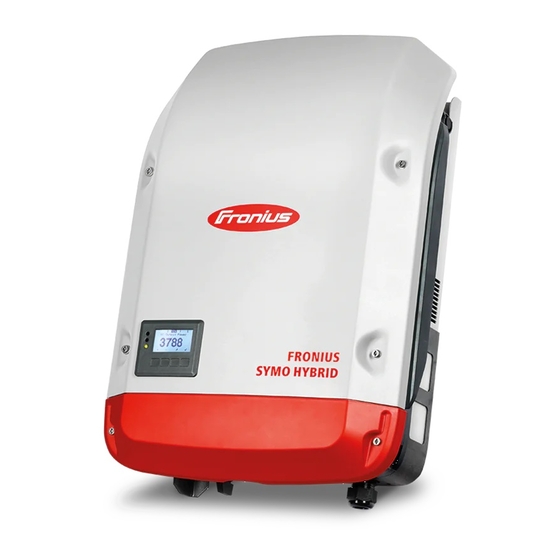

Summary of Contents for Fronius Symo Hybrid 3.0
- Page 1 / Perfect Charging / Perfect Welding / Solar Energy Installation instructions Fronius Energy Package Grid-connected inverter 42,0426,0201,EN 014-17112020 Fronius prints on elemental chlorine free paper (ECF) sourced from certified sustainable forests (FSC).
-
Page 3: Table Of Contents
Routing the DC cables Connecting the battery to the inverter Connecting the battery DC cables to the inverter Overview of Fronius Energy Package DC cabling Connecting the Modbus cables to the inverter Terminating resistor for Modbus cable Attaching the inverter to the mounting bracket... -
Page 4: Installation Location And Position
Installation location and position Explanation of DANGER! safety notices Indicates immediate danger. ▶ If not avoided, death or serious injury will result. WARNING! Indicates a potentially hazardous situation. ▶ If not avoided, death or serious injury may result. CAUTION! Indicates a situation where damage or injury could occur. ▶... -
Page 5: Proper Use
Note! Fronius will not accept any costs associated with production downtimes, installer costs, etc., that may arise as the result of a detected arc and its consequences. Fronius accepts no liability for fires that can occur despite the presence of the integrated arc detection/extinguishing system (e.g. -
Page 6: Choosing The Location Of The Inverter
Observe the stipulations of the power supply company concerning energy fed into the grid, emergency power mode and the operation of storage systems. The Fronius Symo Hybrid is a grid-connected inverter with an emergency power function – it is not a stand-alone inverter. The following restrictions must therefore be observed in... - Page 7 Do not install the inverter in: Places where there is an increased risk of damage from farm animals (horses, cattle, sheep, pigs, etc.) Stables or adjoining areas Storage areas for hay, straw, chaff, animal feed, fertilisers, etc. Do not install the inverter in: Places and environments subject to a heavy build-up of dust Places and environments in which a heavy build-up of dust con- taining conductive particles (e.g.
-
Page 8: Installation Position Of Inverter
Installation posi- tion of inverter The inverter is suitable for vertical installation on a vertical wall or column. The inverter is suitable for a horizontal installation position. The inverter is suitable for installation on a sloping surface. Do not install the inverter on a sloping surface with its connection sockets at the top. - Page 9 Do not install the inverter overhanging with the connection sockets at the bottom. Do not install the inverter on the ceiling.
-
Page 10: Fitting The Inverter Mounting Bracket
Fitting the inverter mounting bracket Safety WARNING! Danger due to residual voltage in capacitors. This may result in an electric shock. ▶ Wait for the capacitors to discharge. The discharge time is five minutes. CAUTION! Danger due to dirt or water on the terminals and contacts of the inverter's connec- tion area. -
Page 11: Do Not Warp Or Deform The Mounting Bracket
Do not warp or Note! When fitting the mounting bracket to the wall, ensure that the mounting bracket deform the does not become warped or deformed. mounting bracket... -
Page 12: Fitting The Mounting Bracket To A Wall
Installing the When installing the inverter on a mast or mounting bracket support, Fronius recommends the "Pole on a mast or Clamp" kit from Rittal GmbH (order no. SZ beam 2584.000). This kit enables the inverter to be installed on round or rectangular masts with the fol- lowing diameters: Æ... -
Page 13: Fitting The Mounting Bracket To Metal Supports
Fitting the mount- The mounting bracket must be affixed at a minimum of four points. ing bracket to metal supports... -
Page 14: Connecting The Inverter To The Public Grid (Ac Side)
▶ Maintenance and servicing in the power stage set of the inverter must only be car- ried out by Fronius-trained service technicians. CAUTION! Risk of damage to the inverter as the result of incorrectly tightened terminals. Incorrectly tightened terminals can cause heat damage to the inverter that may result in a fire. -
Page 15: Ac Terminals
AC terminals Ground conductor / grounding L1-L3 Phase conductor Neutral conductor Max. cross-section of each conductor cable: 16 mm² Min. cross-section of each conductor cable: in accordance with the fuse rating on the AC side, but at least 2.5 mm² The AC cables can be connected to the AC terminals without ferrules. -
Page 16: Cross Section Of The Ac Cable
Cross section of For a standard M32 metric screw joint with a reducer: the AC cable Cable diameter from 7-15 mm When using an M32 metric screw joint (reducer removed): cable diameter from 11-21 mm (with a cable diameter of less than 11 mm, the strain-relief force is reduced from 100 N to a maximum of 80 N) With cable diameters greater than 21 mm, the M32 screw joint must be replaced by an M32 screw joint with a larger clamping area –... -
Page 17: Routing The Ac Cables
Routing the AC Note! cables Form loops with the AC cables when connecting them to the AC terminals. When securing the AC cables using a metric screw joint, ensure that the loops do not protrude beyond the connection area. Otherwise, under certain circumstances it may no longer be possible to close the inverter. -
Page 18: Maximum Fuse Rating On Alternating Current Side
100 mA is generally adequate. In particular cases, and depending on local factors, however, the type A earth-leakage circuit breaker may trip at the wrong time. For this reason, Fronius recommends that an earth-leakage circuit breaker that is suitable for fre- quency converters should be used. -
Page 19: Connecting Solar Module Strings To The Inverter
▶ Maintenance and servicing in the power stage set of the inverter must only be car- ried out by Fronius-trained service technicians. CAUTION! Risk of damage to the inverter as the result of incorrectly tightened terminals. Incorrectly tightened terminals can cause heat damage to the inverter that may result in a fire. -
Page 20: General Comments Regarding Solar Modules
The temperature coefficients on the solar modules data sheet must be observed. More exact values for dimensioning the solar modules can be provided by suitable calculation programs, like the Fronius Solar.configurator (which can be downloaded from http://www.fronius.com). Note! Before connecting up the solar modules, check that the voltage for the solar mod- ules specified by the manufacturer corresponds to the actual measured voltage. -
Page 21: Do Not Ground The Poles Of The Solar Modules
Note! When designing cable cross-sections, take local regulations into account. Connection conditions: Carefully clean the oxide layer from the bare end of the cable by scraping it, e.g. with a knife IMPORTANT! Do not use brushes, files or emery paper, as the aluminium particles get trapped and can be transferred to other conductors. -
Page 23: Routing The Dc Cables
Routing the DC If DC cables are laid over the shaft of the cables DC main switch or across the connection block of the DC main switch, they may be damaged when the inverter is swung in or they may even prevent the inverter from being swung in. - Page 24 If overlength AC or DC cables are to be laid in loops in the connection area, attach the cables with cable ties to the eyelets provided on the top and bottom of the con- nection block.
-
Page 25: Connecting The Battery To The Inverter
Connecting the battery to the inverter Connecting the Only break out as many target break points as there are cables. battery DC cables to the inverter... -
Page 27: Overview Of Fronius Energy Package Dc Cabling
IMPORTANT! Operating the inverter with a free broken-out option card slot is not permit- Modbus cables to ted. the inverter An appropriate blanking cover (42,0405,2020) to cover the slot is available from Fronius as an option. IMPORTANT! If data communication cables are wired into the inverter, observe the fol- lowing points:... -
Page 28: Terminating Resistor For Modbus Cable
Terminating res- The terminating resistor must be set according to how the individual devices are con- istor for Modbus figured (see diagram below). cable... - Page 29 *) The R 120 Ohm terminating resistor is supplied with the Fronius Smart Meter A DC connection and ground connection must also be established between the battery and the inverter. The connection of the individual lines was illustrated in the preceding chapters. The installer is responsible for...
-
Page 30: Attaching The Inverter To The Mounting Bracket
Attaching the inverter to the mounting bracket Attaching the WARNING! inverter to the mounting bracket Danger from inadequate ground conductor connection. This can result in serious injury and damage to property. ▶ The housing screws provide a suitable ground conductor connection for grounding the housing and must NOT be replaced by any other screws that do not provide a reliable ground conductor connection. -
Page 32: Starting For The First Time
Starting for the first time Starting the WARNING! inverter for the first time Incorrect operation or poorly executed work can cause serious injury or damage. Commissioning of the hybrid system may only be carried out by trained personnel in accordance with the technical regulations. Read the Installation and Operating Instruc- tions before installing and commissioning the equipment. - Page 33 * Country setup examples The available country setups may change during a software update. Therefore, the following list may not exactly match the display on the inverter. 50Hz International 50 Hz DE1P Deutschland (≤ 4,6 kVA) - Great Britain 60Hz International 60 Hz cosPhi(P) 0,95 Ελλάδα...
-
Page 34: Activating The Emergency Power Function
Correct cabling of the emergency power system in the electrical installation (see document entitled "Fronius Energy Package - Examples of emergency power switchover") The meter (Fronius Smart Meter) must be installed at the feed-in point and con- figured Latest firmware on the inverter - if required, perform a firmware update... -
Page 35: Selecting Alternative (Emergency Power) Setup
Fronius Ohmpilot The Fronius Ohmpilot is not suitable for emergency power mode. and emergency If a Fronius Ohmpilot is used, it should be installed outside of the emergency power cir- power mode cuit IMPORTANT! For control-related reasons, the Ohmpilot cannot be operated in emer- gency power situations. -
Page 36: Installing Fronius System Monitoring - Overview
IMPORTANT! Knowledge of networking systems is required in order to install Fronius system monitoring. Starting for the IMPORTANT! Starting up the Fronius system monitoring function for the first time is first time made considerably easier with the Fronius Solar.web app. The Fronius Solar.web app is available in the respective app stores. - Page 37 Installation using the Solar.web app Installation using a web browser Download the Fronius Solar.web App Connect the end device to the WLAN access point SSID = FRONIUS_239.xxxxx (4-8 digits) Search for a network with the name "FRONIUS_239.xxxxx" Establish a connection to this...
-
Page 38: Information To Help You Work Through The Solar Web Wizard
2. Service password Enter (and make a note of) the service password 3. IO assignment Settings for the IO interface are entered (see also "Fronius Energy Package - IO assign- ment" Operating Instructions) 4. System overview Settings for the entire PV system are entered (see also "Fronius Energy Package - Sys- tem overview"... -
Page 39: Notes Regarding Maintenance
Maintenance Note! When installed outdoors in a horizontal position: once a year, check that all screw joints are tight! Maintenance and servicing may only be carried out by Fronius-trained service techni- cians. Cleaning Clean the inverter as required with a damp cloth. - Page 40 FRONIUS INTERNATIONAL GMBH Froniusstraße 1 A-4643 Pettenbach AUSTRIA contact@fronius.com www.fronius.com Under www.fronius.com/contact you will find the addresses of all Fronius Sales & Service Partners and locations.
