QuickStart Guide
LCD
Contrast
M32C/8x StarterKit Plus QuickStart Guide, rev. 2.0
M32C/8x
StarterKit Plus
SKP32C83, SKP32C84
SKP32C85
8 Characters x 2 Lines LCD
RTA-FoUSB-MON
Target/Bus
In-Circuit Debugger
Power Mode
(ICD)
Selector

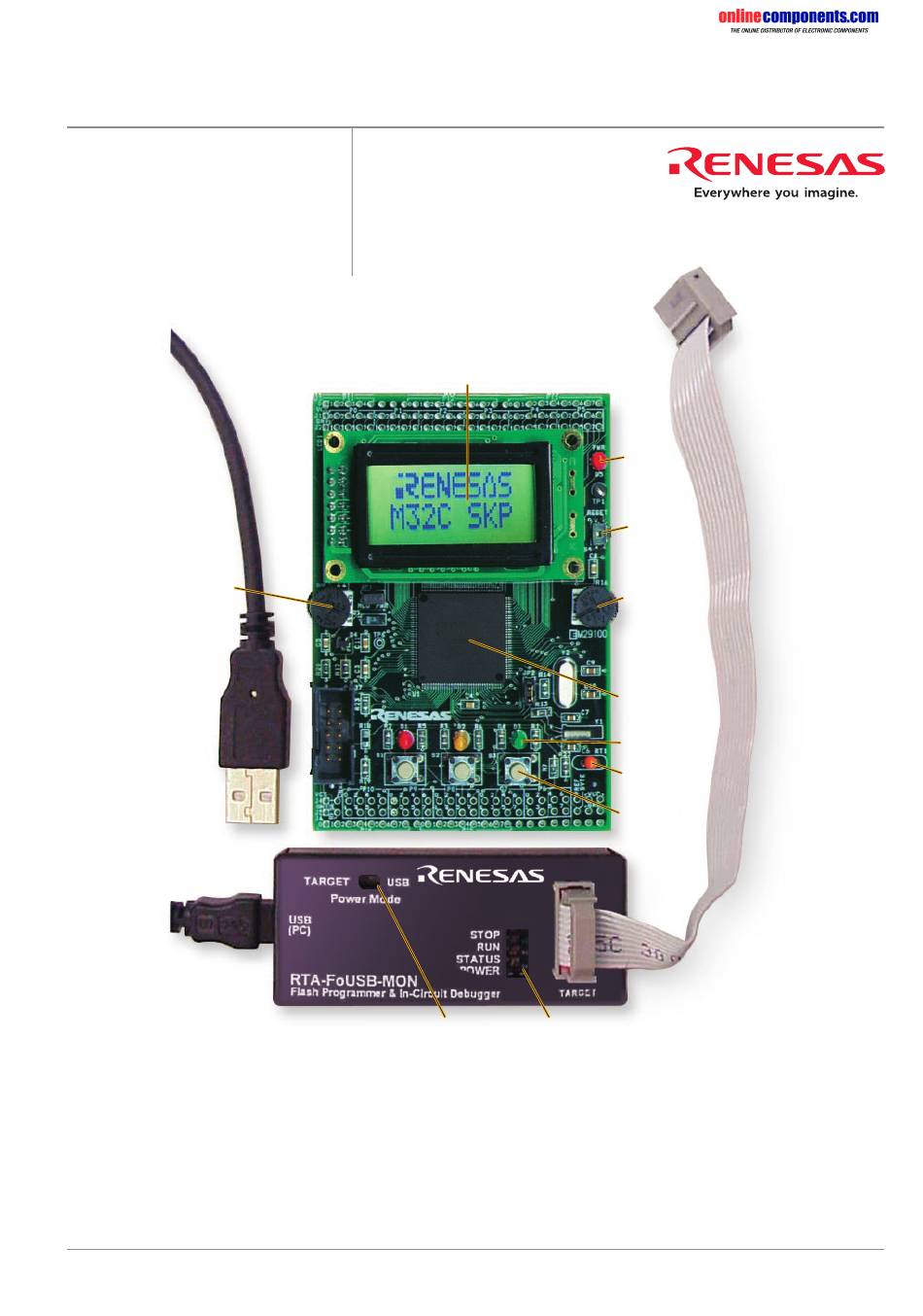

Figure 1. M32C/8x SKP
Power
LED
Reset
Switch
Analog
Adjust (R16)
M32C/8x
User LEDs
Thermistor
User
Switches
ICD LED Status:
Red – Target Stopped
Green – Target Running
Status – ICD Status
Red – ICD Power
