Service instruction iSave 21

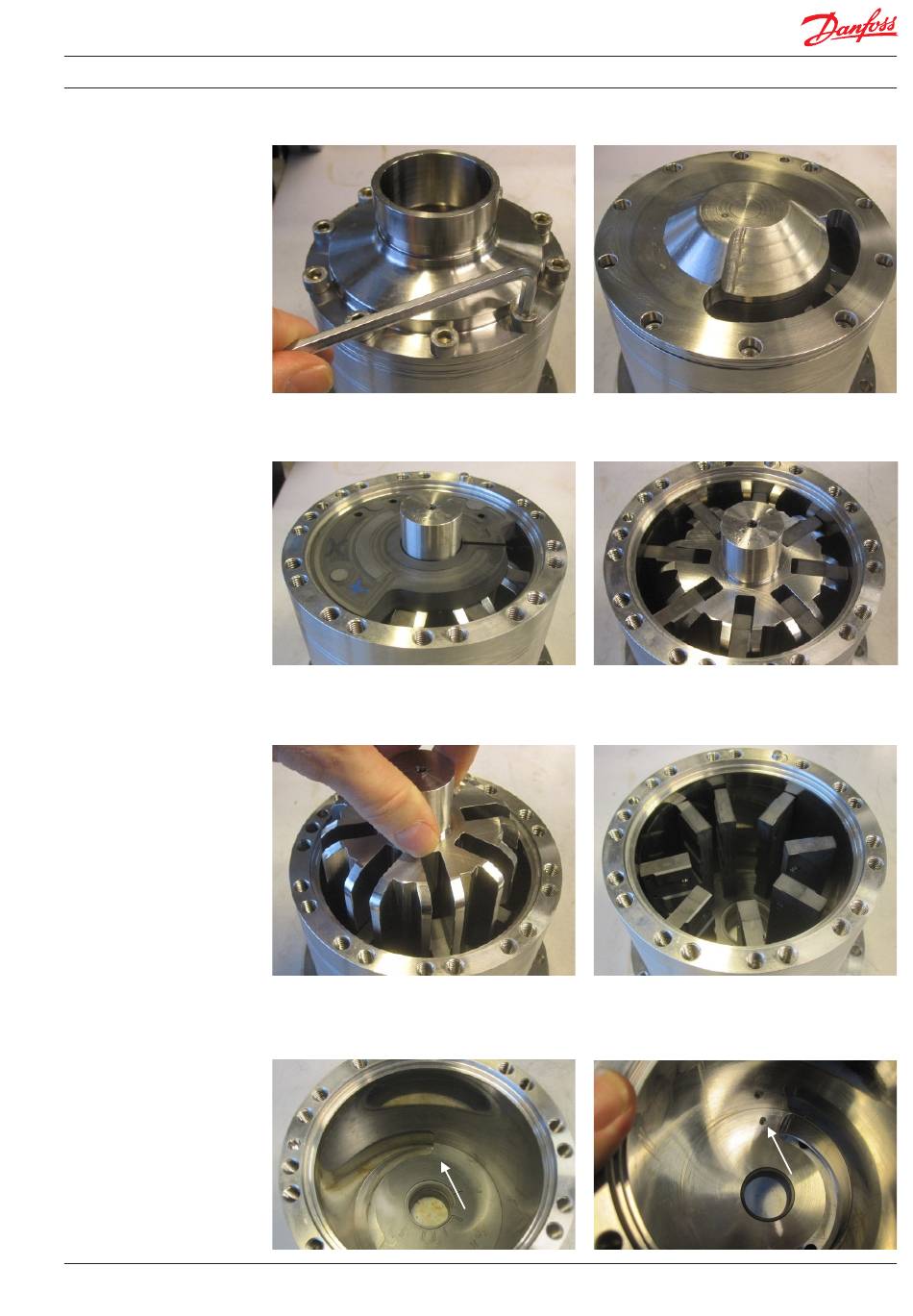

41. Remove all the bolts in the flange
43. Remove side plate
45. Gently remove the rotor.
NB! Loose parts inside the rotor
47. Gently remove side plate.
180R9219 / 521B1171 / DKCFN.PI.003.K1.02 / 01.2011
42. Remove the flange
44. Side plate removed
46. Remove vanes
48. Check that the guide pin is OK and located
correct.
